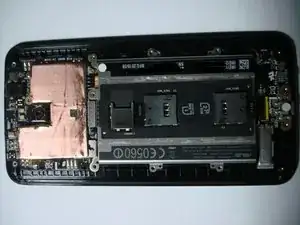

Unscrew all the 14 screws. There are two strips of adhesive running top to bottom beside the sim card slots so be patient and slowly remove the rear cover.

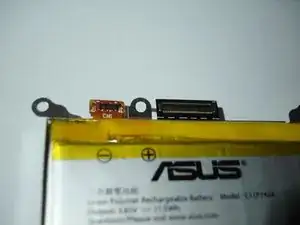

The battery connector is the connector at the right of the motherboard. Above the battery, there is a bridge connector which connects the mainboard with the sub board at the bottom. So remove both the cables. There is a slight adhesive below the battery. Cut through it with a plastic spudger and it will come out.

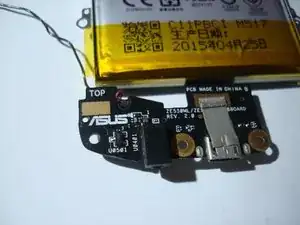

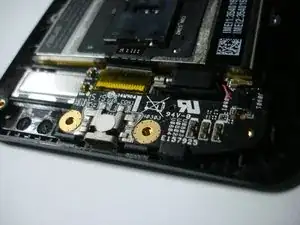

The sub board has the antenna terminals also and prior to removing the battery, the antenna cable needs to be removed as well. Gently disconnect the coaxial cable from both the motherboard and the sub board.

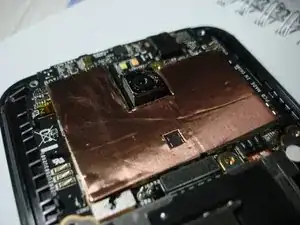

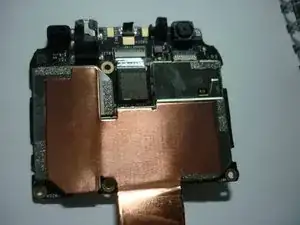

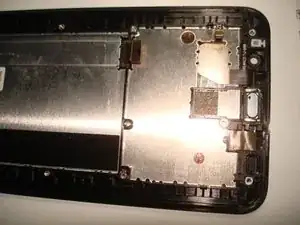

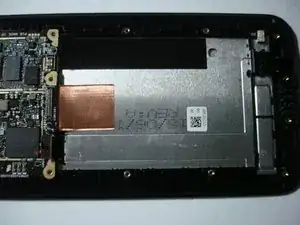

Remove the copper tape adhered to the mid-frame. The motherboard is held to the mid-frame using 4 plastic clips. I found that starting to pry up the motherboard from the right is easier than from the left. Just apply mechanical sense and you will get the motherboard out in no time.

Make sure not to bend the motherboard from too much pressure.

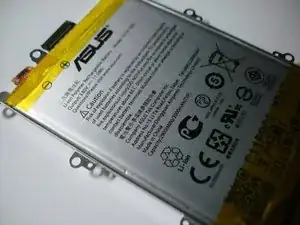

The battery is rated at 3.85V, 11.5 Wh. The capacity is 2900 mAh minimum and 3000 mAh typical.

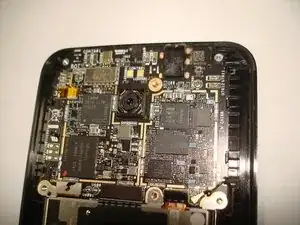

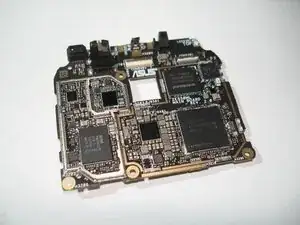

Removing the shields from the motherboard will expose the components.

Bottom side components:

SK Hynix H26M52103FMR 16 GB eMMC 5.0 flash memory

Intel 8818 XGold 223

Intel PMB 5747 RF Controller

SkyWorks 77627-11 Network Power Amplifer Module

Murata 6PH47

Qualcomm SMB 1357 Quick Charge 2.0 IC

Intel PMB 6830 - Power Management IC

Winbond W978H6KBVX2E - 256Mb Low Power DDR2 SDRAM used for aiding the baseband processor.

Intel PMB 9933 Baseband processor

SK Hynix H9CKNNNCPTMR - 4 GB LPDDR3 RAM with the Intel Atom Z3560 processor layered underneath as PoP.

Realtek ALC 5647 audio chip.

Broadcom BCM4339XKUBG - Dual band WiFi controller.

The proximity sensor, notification LEDs and the 3.5 mm audio jack are all soldered to the motherboard.

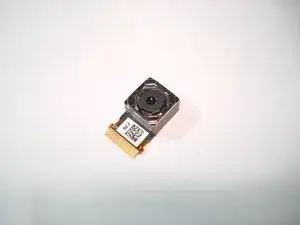

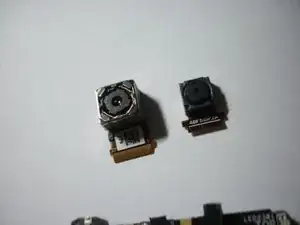

The front and rear cameras can be easily removed from the motherboard
