Belkin WeMo Switch Teardown

Geschrieben von: Geoff Wacker
Veröffentlicht: 05/03/17
  • Kommentare: 2

Belkin WeMo Switch Teardown

Veröffentlicht: 05/03/17

Teardown

Einleitung

Belkin WeMo Switch teardown.

  1. m5ijhSqBbhljdkda
    m5ijhSqBbhljdkda
    2QnxCwCnSsfNjKoH

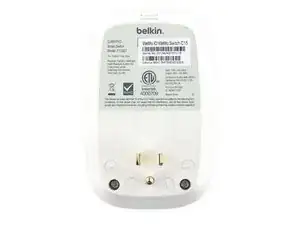

    • Model: F7C027

    • FCC ID: K7SF7C027

    • Input: 120 V, 15 A, 60 Hz

    • Output: 120V, 15 A, 60 Hz

  2. cPudAgeDOkThbMrv
    cPudAgeDOkThbMrv
    RhwIbY3UGhNbq5b6

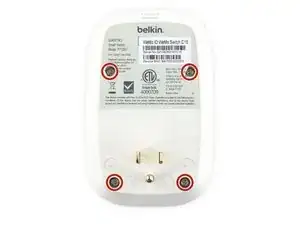

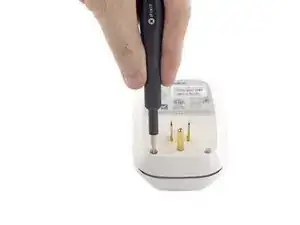

    • Remove the four 11.9 mm triangle screws securing the two halves of the case together.

    • The upper two screws are hidden underneath the label, so you'll need to cut away the sticker directly above the screws.

  3. q4uuenB5RLDsLXxl
    q4uuenB5RLDsLXxl
    MTWF3UMt6SiYYSlO

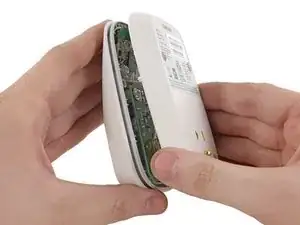

    • Carefully pry the back case off.

  4. FKxsMX3TYEj6IIuW

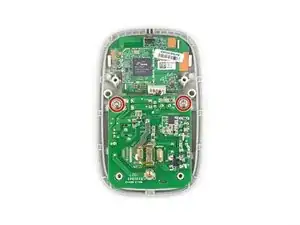

    • Remove the two 9.9 mm Phillips #1 screws securing the power board to the device.

  5. Aa6l2MPgPjpZoduJ

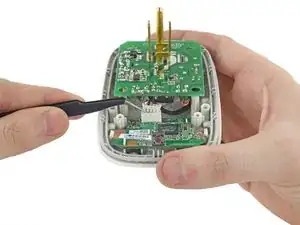

    • Use a pair of tweezers to disconnect the power plug from the motherboard.

  6. IUeSV1UFapCPRTu4
    IUeSV1UFapCPRTu4
    2QcTrAVop5AB6lgk

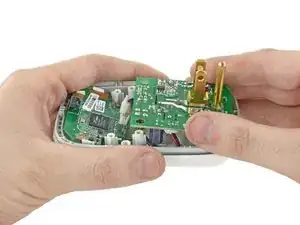

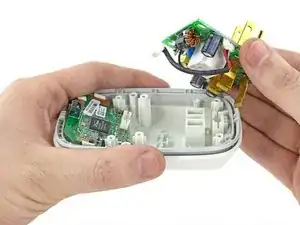

    • Remove the power board from the device.

  7. h5SuIvKHAoqcPcdd
    h5SuIvKHAoqcPcdd
    3qWeIFQNhDXc3Mfe
    KRyGwoTUwOaviKKO

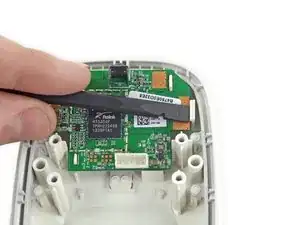

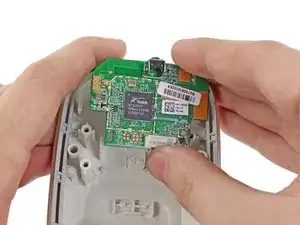

    • Use the flat end of spudger to gently pry the retaining flaps away from the motherboard.

    • The motherboard should now come free.

  8. gwMwJkEvo2H5dKEN
    gwMwJkEvo2H5dKEN
    pSCyyLT4iju4lILq

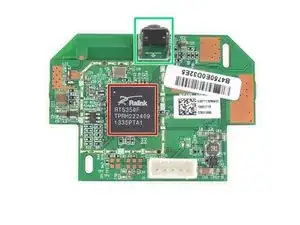

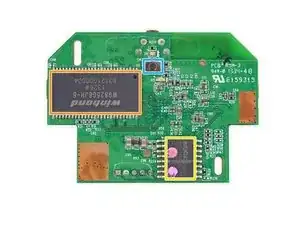

    • Components on the motherboard:

    • Ralink RT5350 Wi-Fi SoC

    • Winbond W9825G6JH-6 256 Mb 166 MHz SDRAM

    • Macronix MX25L12835EMI-10G 128 Mb NOR Flash Memory

    • Momentary push button switch for factory reset

    • Momentary push button switch for power switch

  9. oVcps6WbA3QZOTaS
    oVcps6WbA3QZOTaS
    GJsZMtJNRBLnlySv

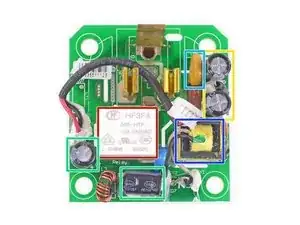

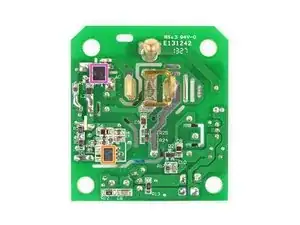

    • Components on the power board:

    • Hongfa HF3FA 10 A Relay

    • Power Integrations LNK606DG 5.5 W AC/DC Converter

    • TAICON 6.8 µF Capacitor (x2)

    • FOAI 680 µF Capacitor (x2)

    • JOYIN JVR10N471K 385 V 70 J Varistor

    • Chipsen EPC13 50 W Transformer

    • PANJIT International TB8S 800 V 30 A Bridge Rectifier Diode

  10. 642WgQitxkqtmTTH

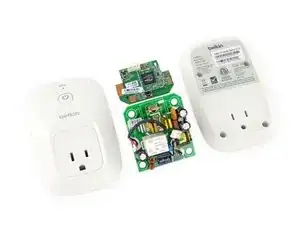

    • Final layout.

Tinte & Feder

Geoff Wacker

Mitglied seit: 30/09/13

88019 Reputation

2 Kommentare

I notice that’s a 240V 10amp relay they’ve used. Do you think there is any electrical difference (aside from the plug pattern) between the US 110V version and the EU/Australian 220V one?

Greg Bromage -

Thank you, that was a big help! The exterior on off button had come loose and was rattling around inside and I was able to repair it thanks to your tear down guide.

L Threet -
