Black Diamond Moxie Teardown

Geschrieben von: Quintus “Quanten” Tunnel
Veröffentlicht: 08/03/20
  • Kommentare: 0

Black Diamond Moxie Teardown

Veröffentlicht: 08/03/20

Teardown

Einleitung

  1. 5KsbhIU4aSc2OyxB
    5KsbhIU4aSc2OyxB

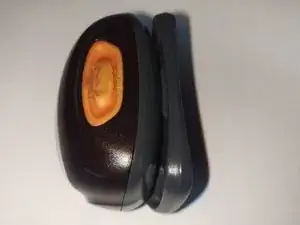

    ITCdaciJVrb2GBj5
    kykiByHIYZKsnBBm

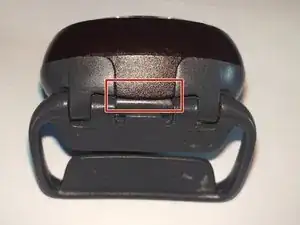

    • Pull here to open the battery case

  2. Dgp3EJxOaa2PGyHR
    Dgp3EJxOaa2PGyHR
    yAbXKsLbMwfYjS4Y

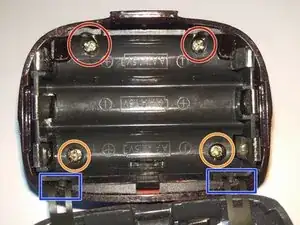

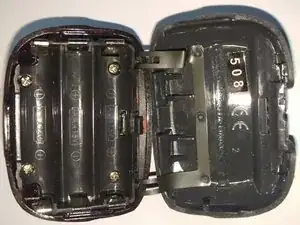

    • Space for three AAA batteries here

    • Unscrew these

    • and these phillips screws here.

    • Keep in mind, that this are different screws, so don't mix them

    • This part will be a bit complicated to get it back together

  3. RvevsQJSLNvUvLfp
    RvevsQJSLNvUvLfp
    aYGYktOiicLM4p2I
    XtZkjRlFPGZYUyqK

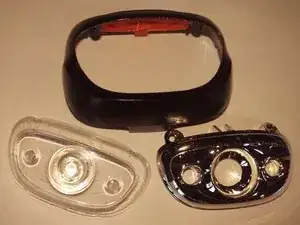

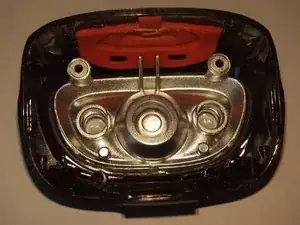

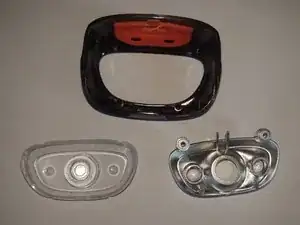

    • The front has three parts

    • The case,

    • the reflector

    • and the lens.

  4. pNdtLX5CvSIZktrH
    pNdtLX5CvSIZktrH
    VgbdW6ZsjboJjWlA

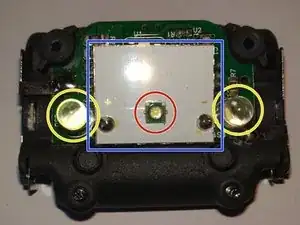

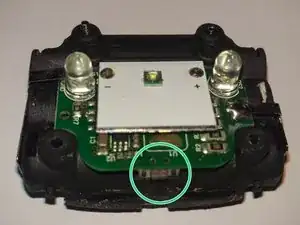

    • The "high power" LED with 55 lumens

    • This seems to be a cooling plate for the high power led

    • The other two LEDs with 16 lumes

    • The button

  5. 2BPUkDQqFXeMM6bg

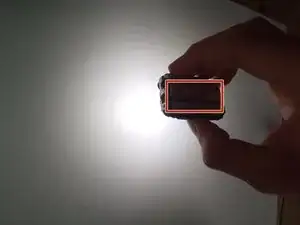

    2BPUkDQqFXeMM6bg
    OggaUwVkSSXTFN1n

    • The high power LED would make a way better near field wide angle lamp without the lens.

    • In reality the light is even broader distributed than visible on the image.

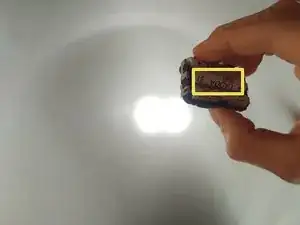

    • This is the light spot of the two low power LEDs.

  6. LoiEBTRX5aNyD1L2
    LoiEBTRX5aNyD1L2
    Y3CPRCtusqtjUh21

    • The english part of the manual
