BlackBerry Presenter Teardown

Geschrieben von: drwreck
Veröffentlicht: 19/05/10
  • Kommentare: 1

BlackBerry Presenter Teardown

Veröffentlicht: 19/05/10

Teardown

Einleitung

This thing landed in our laps. We tried it, tested it, and then ripped it apart! All information can be found at www.phonewreck.com.

  1. qRRkk2FDDoH2R16O
    qRRkk2FDDoH2R16O
    161e6XEFjjNP5avi
    OsEfAdPYvySAIOVE

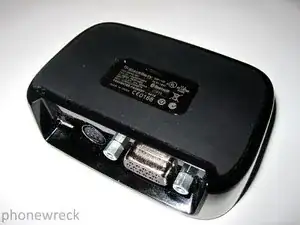

    • The BlackBerry Presenter

    • ~$200

    • Solid Design

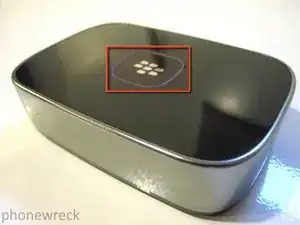

    • A clever design trick,the Power Button is the Blackberry Logo

  2. dKgAMqUZDEdMSsAx

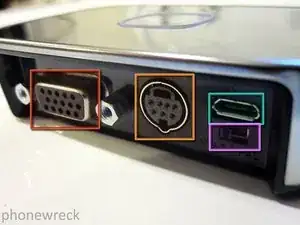

    • Moving around the back, we see all of the ports

    • VGA Port

    • S Video Port

    • Micro Usb

    • NTSC/PAl Switch

    VGA Port

    S video Port

    Micro Usb

    laa2004 -

  3. P3GyXuWZOHwoiK4F

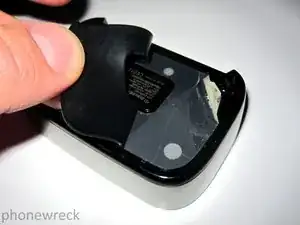

    • Peel back the Rubber pad on the bottom of the device.

  4. pfNHSeq2YSRQ25jm
    pfNHSeq2YSRQ25jm
    o34SOY11bs1gKWYW

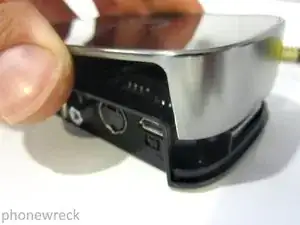

    • Grab your T7 and poke it through the adhesive pad.

    • Remove the four screws. The top portion of the device should lift free, pretty easily.

  5. cZHHJDFKQddOtJPJ

    • There's the PCB! Now to get under it..

  6. K6SwxqHELR2FbTal

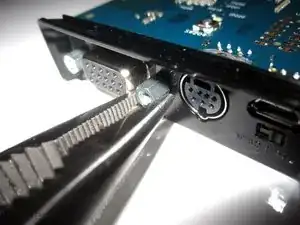

    • Grab a small wrench or a pair of pliers and remove the screws holding in the VGA port.

  7. 1rUPsWB1aOEWriA1
    1rUPsWB1aOEWriA1
    xwoWmlko1cngnJch

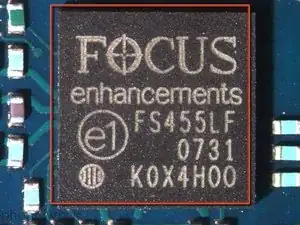

    • Focus Enchancments : FS455LF 0731 kox4h00 is a TV encoder designed for applications which require Component Video, VGA, or RGB output capabilities.It can accept digital video or computer graphics in many different resolutions and rates, and convert them to high quality analog video.

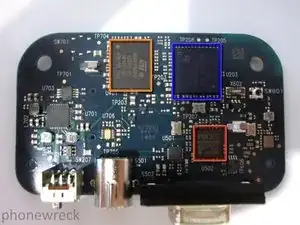

    • TI TMS320 DM350ZWX

    • ST microelectronics
