Breville 860 Grinder Teardown

Geschrieben von: thanhlp
  • Kommentare: 15
Breville 860 Grinder Teardown

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

    • I grab this video from Youtube, its show very clear how to open the top and the back panel. Please watch until 2min

  2. KetuqN4NdLPWFRoW
    KetuqN4NdLPWFRoW
    ufKlGGvNThZIM4kr

    • Unscrew the white box cover in the back, 4 screws.

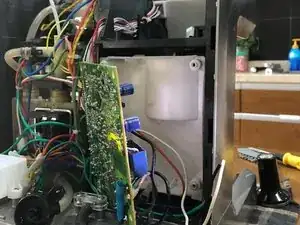

    • Remove the white box cover, and then careful lift the electronic board as the picture

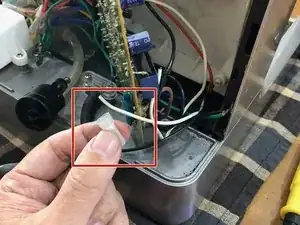

    • Look for two line, one white and one black on the bottom. They should be connect to the electronic board through 2 connectors

    • Pull these lines out to give yourself some space to work with the motor in the next step.

  3. QYjMqpFq5ZM43pQi
    QYjMqpFq5ZM43pQi
    OU1npM6UadPoSTAA

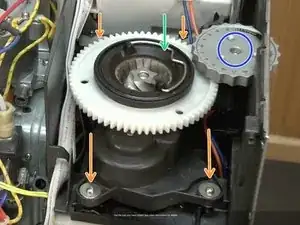

    • Unscrew and take out the dial

    • Take out the outer burr

    • Unscrew 4 screws

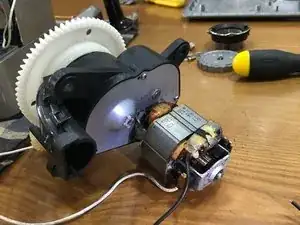

    • Take out the motor

  4. bSxnQOVbTxoAZ3Hf
    bSxnQOVbTxoAZ3Hf
    I12gZbqcMpxWefEX

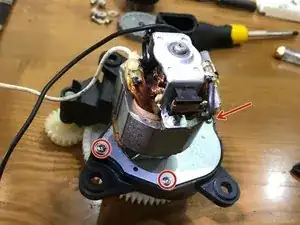

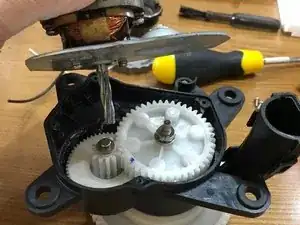

    • Unscrew 4 screws

    • Carefull lift the part with motor up.

  5. EoETiJEfHTuUGAnX
    EoETiJEfHTuUGAnX
    hK6xYsxoJQiukiZZ
    ZmOYeFxgZOEv4WUO

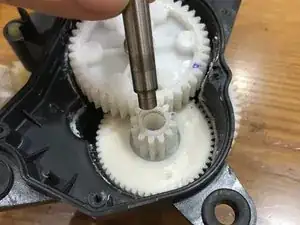

    • Examine the gear.

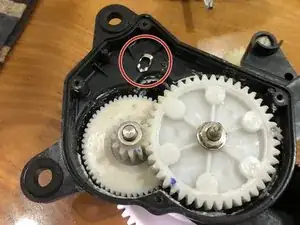

    • In my case, I found one strange object, sticked on the gear wall. Look like it is a washer pressed with gear teethes. Good to take it out but I wonder where it came from?

  6. Br12sc1GLLsUvASn
    Br12sc1GLLsUvASn
    3cuXTLsKECOOhuJt
    AdW4kINZ1lUJYtiw

    • Unscrew this, remember follow the clock wise

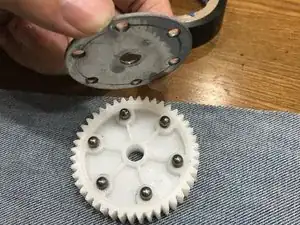

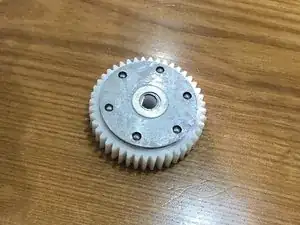

    • If you just want to replace worn out impeller: hold the limiter steady, unscrew (red square) with clock wise, take out the inner burr. And try to clean and replace the impeller while holding the limiter! You should ask some body to help with this step.

    • Take the Limiter out. Take care because it go with 6 balls and 6 springs! Perform this step only if you think there are some wrong with the Limiter (Big crack sound when grind )

Abschluss

To reassemble your device, follow these instructions in reverse order.
