This is a teardown of a Brother P-Touch PT-M95 label maker that has taken a fall from a shelf, resulting in the side button that is used for cutting the printed label to break off. The purpose of this teardown is to provide information for owners of this label maker and to harvest working spare parts from the device.

  1. YTgmoDbx3qIpJC6k
    YTgmoDbx3qIpJC6k
    PSUdKKGhqpvBgZD3
    YiJ1HuhwJYmlUoip

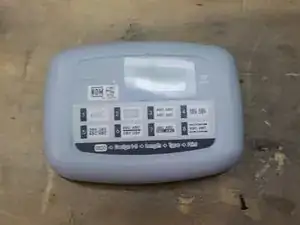

    • This is the Brother P-Touch PT-M95 label maker. You should see a blue button on the top left, but if you read the intro, that's really the whole reason I'm doing this teardown.

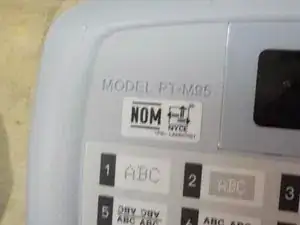

    • The model number is located on both the inside and outside of the P-Touch PT-M95 back case.

  2. GebsNwyNLrT6ic6L

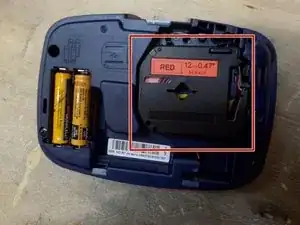

    GebsNwyNLrT6ic6L

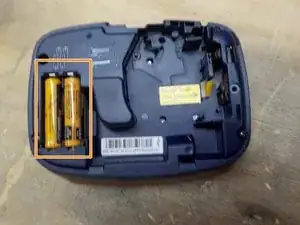

    RVunOxXMCDSjapLX
    • Just the basic stuff here. Remove the back by pressing down on the top and pulling away from the device until the top separates.

    • Then, start by removing the m-tape module.

    • Then remove the AAA batteries.

    • To remove the m-tape module, simply pull on it gently until it pulls off the label maker. For the AAA batteries, remove them as you would from any other device.

    • This is about the extent of modular parts you will see in this teardown as far as electronics go, so look out.

  3. GU12OkscJBHjHoeh
    GU12OkscJBHjHoeh
    FwTus5SPwfbiFvQs
    drxIUBPpW2CDtBUD

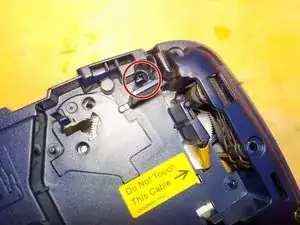

    • Time to take out the screwdrivers now. All of the black screws are P1 Phillips, while all the smaller silver ones are P00 Phillips.

    • The P1 Phillips screws are different lengths, so make sure to keep them separated. Blue markers indicate the screws.

    • Make sure you get all of the screws, especially the one in the top right I missed the first time.

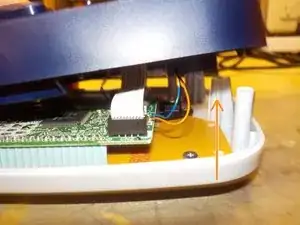

    • Lift the midframe SLOWLY as there are 2 sets of wires and a flex cable connected. Unfortunately, the 2 sets of wires are soldered to the board. Just carefully unplug the flex cable using tweezers, needle nose pliers, or your fingers, whichever you prefer.

    • The 2 sets of wires go to the motor in the unit and the battery bay. The motor just fell out and stayed attached to the circuit board during this teardown. You could desolder the wires, but I didn't end up needing to.

  4. eTU3CP5OvyAhKSbC

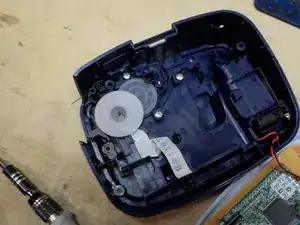

    eTU3CP5OvyAhKSbC
    AOGPWjt3IKirAjAC
    • This is the inside of the midframe. If you want to remove the gears, which is needed for the next step, Pull sideways on the little clip to remove it, then lift the gears out.

    • To complete the separation of the board from the midframe, you can remove the battery connections by pulling up on them until they come out while carefully de-routing the cables.

  5. RGJjBkC3iPBSGMWA

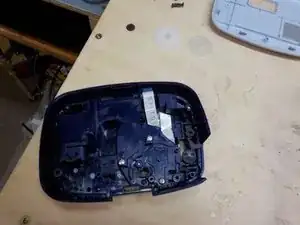

    RGJjBkC3iPBSGMWA
    jubZrITXRHTmgeOn
    • Start by removing any buttons and metal springs around the edges.

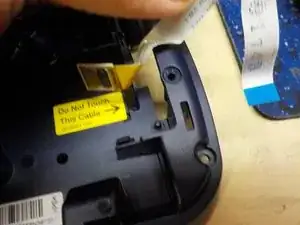

    • Then, if you choose to do so, you can unstick the label tape cartridge reader thing (I really don't know) from the plastic and unroute the flex cable.

    • Make sure to remove the flex cable through the back where the reader thing is as opposed to the connector.

  6. CIjiMYm1Lf3DAZCG
    CIjiMYm1Lf3DAZCG
    xWWK3XA5U2NfEht1

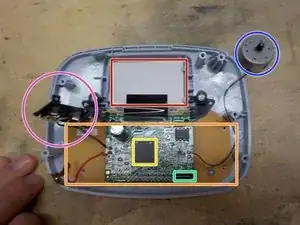

    • This is the main working pieces of the whole thing. You will see the following parts inside:

    • Screen (custom monochrome thing, soldered to board)

    • Keyboard. Membrane below.

    • Unknown chip of some kind on the main logic board that I assume is the CPU

    • Flex cable connector for the tape reader thing I mentioned last step.

    • Motor

    • Battery connections.

    Yes, I know the wording here is super professional. If anyone knows what the things actually are, I’ll add it.

    nerdbug96 -

    the unknown chip is probably a microprocessor and it is made by panasonic.

    Jorge L Castro -

    also the reeder thing is actually probably a thermal printing head.

    Jorge L Castro -

  7. dVLwKVOONDAOiwAR

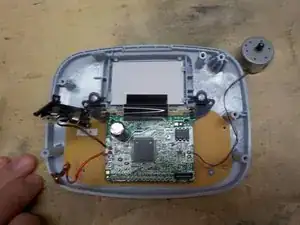

    dVLwKVOONDAOiwAR
    3qCZNGleotSnsVHc
    SWGo5euHmkOrJlHw
    • The 2 screws next to the display are P1, while the 1 on the keyboard is a P00, all Phillips. Go ahead and remove these now. Don't lift the parts out first though, as the screen is clipped in place.

    • Make sure to press the clip to the left of the screen to lift it out. Don't try to pry it up. It can be damaged quite easily.

    • After you have removed the screen, the board can be lifted out, minding the screen and motor attached.

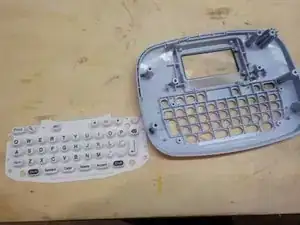

    • Finally, the keyboard membrane can be removed by carefully bending the metal retaining thing out of the way and then lifting the rubber membrane straight out.

  8. JssmNmOkksLMRYSn

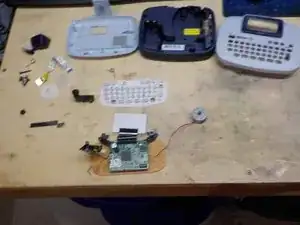

    • These are all the parts laid out. I can tell this label maker wasn't designed to be repaired, but at the same time wasn't designed to not be repaired, either.

    • To reassemble, follow the steps in reverse order with a few potential extra steps to mount the motor.
