CCI Smart Strip 04941 Teardown

Geschrieben von: nils smith
Veröffentlicht: 14/11/13
  • Kommentare: 3

CCI Smart Strip 04941 Teardown

Veröffentlicht: 14/11/13

Teardown

Einleitung

  1. r6ammNq2RYufKZbN

    • The Assembled Product, unplugged from wall

  2. bNPTJy3HFQ3alJli
    bNPTJy3HFQ3alJli
    fJSH1TDyJMKh63Xo

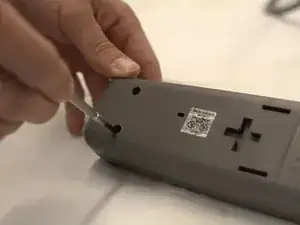

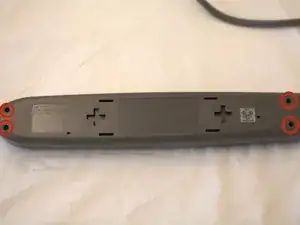

    • Turn Smart Strip upside down and locate four screw holes in corners

    • Unscrew four corner screws with #0 Phillips Screwdriver

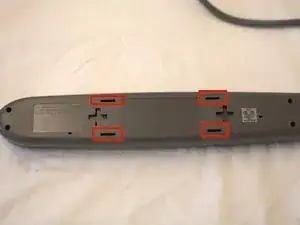

  3. xHQUDnDXWkUcuVJB
    xHQUDnDXWkUcuVJB
    KuxfVYxB1YQqkC5p

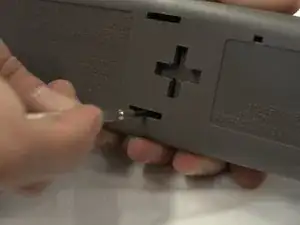

    • Locate four latch slots in case

    • Use 2.4mm Slotted Screwdriver, put tip into center of slot, with tip on outer edge of slot, and press inward

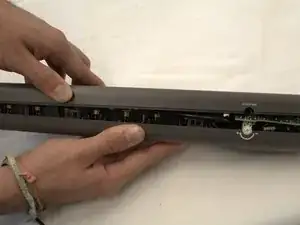

  4. fl4cj5iYHxuMUQTR
    fl4cj5iYHxuMUQTR
    KKMaJaZJ2tVmQlPO

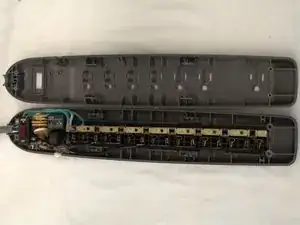

    • Take two halves of case apart with your hands

    Really cool teardown...

    Is there a reason why you decided to do one on a power strip?

    FYI: there's absolutely NO sarcasm here. I'm always looking to add to my little of projects and this may have triggered and Idea

    If you don't mind sharing, why did this come to mind. Plesse, I don't need specifics. It just got me thinking of using this method to make a pretty nice expanded powerstrip that I desperately need, but don't want to pay over $120+ for 2 or more of the pricey ones, even though a surge protector would be nice (sorry I don't know if yours does, I skim thru fast when I read).

    Thank you!

    E

    es1101 -

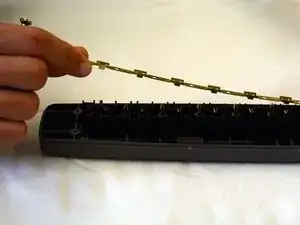

  5. 1JWVOk64BVYJPBQN

    • Lift Ground Copper Strip upward off of power plugs by hand

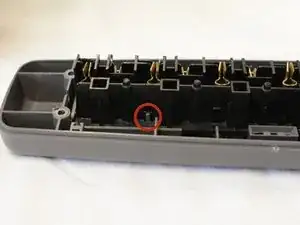

  6. etdkJRTvFDS2PhwD
    etdkJRTvFDS2PhwD
    DCIEcCkDUdZeWtGn

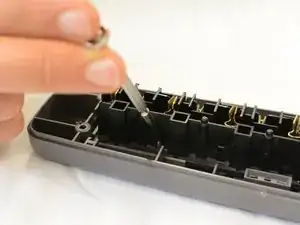

    • Locate latch securing power plugs to bottom of case

    • Using slotted 2.4mm screwdriver, pry latch away from power plugs to loosen power plugs

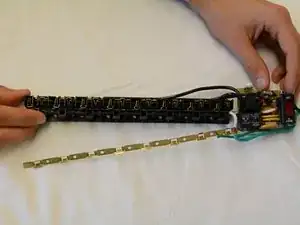

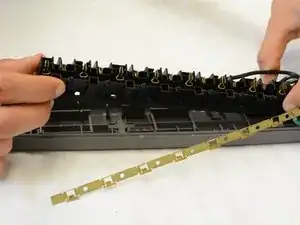

  7. Ab6aOL5oU5ntDjKp
    Ab6aOL5oU5ntDjKp
    M1ys2osNiOAS45W1

    • Lift power plugs out of bottom of case along with circuit assembly
