CR-10 V2 Print Head Teardown

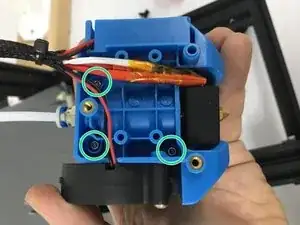

Using M2 hex remove the 3 button head screws holding the print head to the X carriage plate.

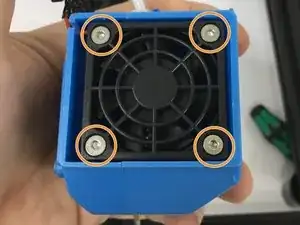

Using M2 hex, remove the 4 screws holding the hot end fan in place (2 screws attach to the front half and the other to the rear)

Using M2 hex, remove 3 button head screws that secure front and rear sections together. Do not try to pull apart yet!

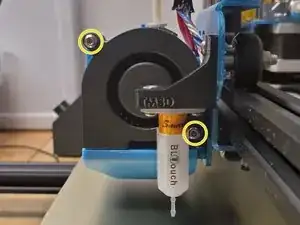

Using M2 hex, remove the 2 button head screws securing the part cooler fan. 1 attaches to the front and the other to 2 rear.

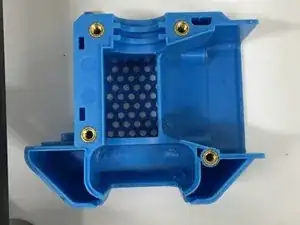

Pull the front half off to expose the rear section and hot end.

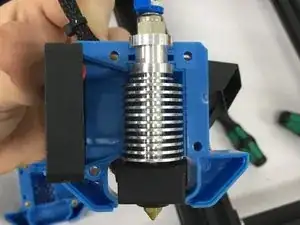

Now, treat it like an E3D V6 hot end. However, the nozzle is not V6 style.
