Canon EOS M5 Teardown

Geschrieben von: Terrance
Veröffentlicht: 10/05/20
  • Kommentare: 10

Canon EOS M5 Teardown

Veröffentlicht: 10/05/20

Teardown

Einleitung

REMEMBER to record (like, take photos of) screws you removed. Some are fine metal thread type and others are coarse self-tap for plastic. Do not mix them!

  1. XJh1NuNZCfEqvYyb

    • Canon EOS M5

    • Remove the strap, Or, it WILL cause mess during the teardown/repair. Remove it unless you are as SKILLFUL (lazy) as I am.

  2. agPpplrXHh1qkJsC
    agPpplrXHh1qkJsC
    DRpZ1DRaTt6BvJmZ
    VmKBtdmvPLvZLlu3

    • FIRST remove battery and SD card.

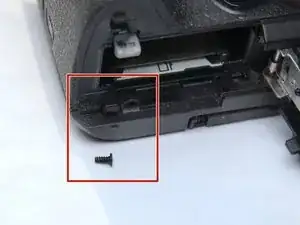

    • remove 1 self-tap screw

    • remove 6 screws

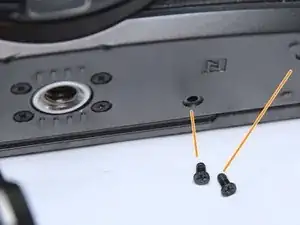

    • These 2

    • And these 4

  3. eVLbitKCr2ZelBv1
    eVLbitKCr2ZelBv1
    lX41sqvt5ncJGhnh

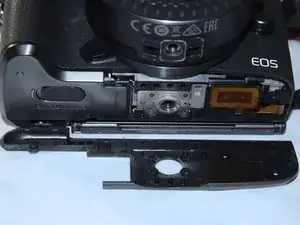

    • Remove bottom cover

    • This is the NFC antenna(coil).

  4. 4R32ShRHVUEBI24g

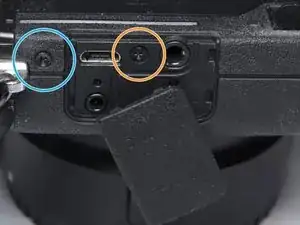

    • Left side:

    • Remove metal thread screw

    • Remove self-tap screw

  5. HqkX4GfwWH1hhWod

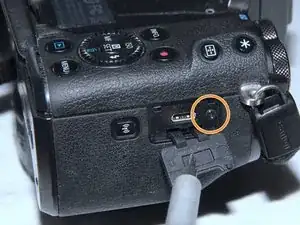

    • Remove 1 screw.

  6. ZxJifCmbNkCikJGD
    ZxJifCmbNkCikJGD
    3UyNHii2BquGDyxx

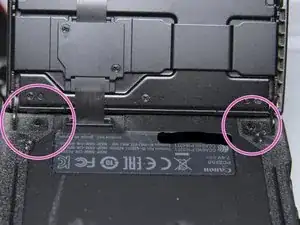

    • Remove 4 metal thread screw.

  7. EtWmb4wouDyDYZRS
    EtWmb4wouDyDYZRS
    RfI5UuhVuWKmgAMj

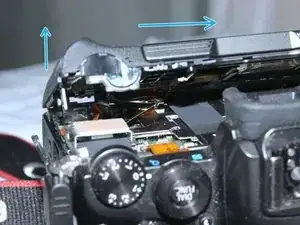

    • Gently, lift (towards back) and slide the back cover towards left (THE LEFT when you holding the camera)

    • Disconnect 2 FPC.

  8. 1IsEBZ1cydO2wMb1
    1IsEBZ1cydO2wMb1
    ClmksCLqY31UAQEH
    qVYQQEWbo2GY6AEI

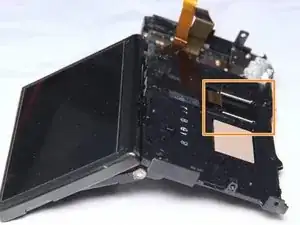

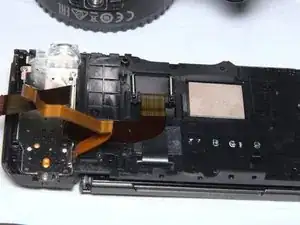

    • The back case with LCD assembly.

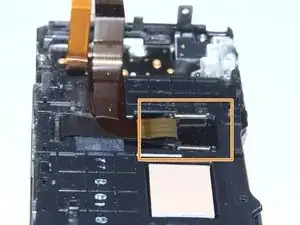

    • The beautiful LCD FPC stretcher

  9. KHCi1CpNDIZFEXIT

    • We are in side the camera.

  10. OAmEVFhlYvYt6kTB
    OAmEVFhlYvYt6kTB
    wiPjNflxNAYoCcdc
    6wFJRQYv2IRD4dZf

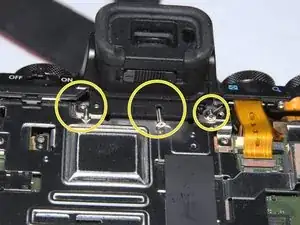

    • Remove 3 screws near the EVF. REMEMBER lengths and hole positions. The center one is longer. The left holes.

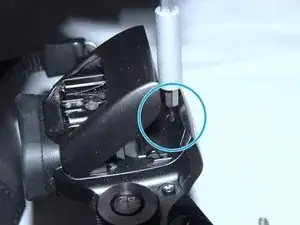

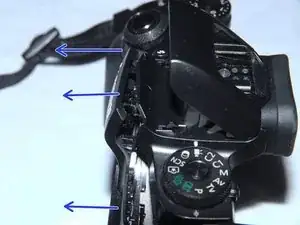

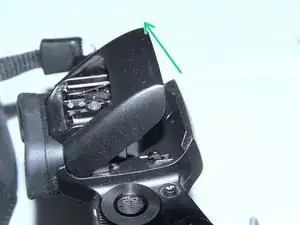

    • Pop the speedlight (flash)

    • Remove the screw covered by the speedlight.

  11. oxi6IRgosyXl55Bg

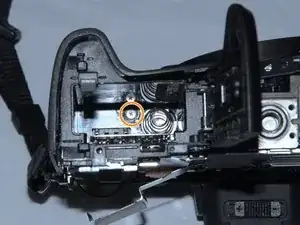

    • Remove 1 screw in battery bay.

    • There's only one. Trust me.

  12. kxqUQUxLZDFvbUZv
    kxqUQUxLZDFvbUZv
    Dn5cwV3YvZ4UcNtZ
    eqMf2WPfFRVEZAXa

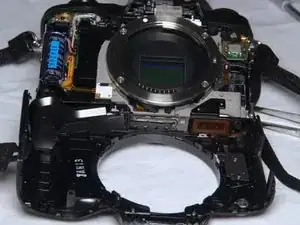

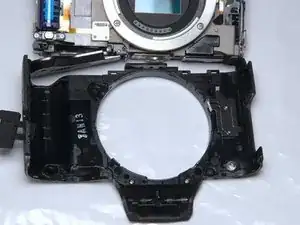

    • Now the front case comes off.

    • There are some clips, be gentle and patient.

  13. uiJkyKvBSsScRBGg
    uiJkyKvBSsScRBGg
    W4StTZSU3g3cO12o
    3cQUenDJcypFMQQr

    • Please keep body cap on as possible, for shielding again dust.

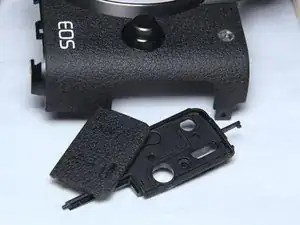

    • Front cover comes off with 2 small parts. Don't loose them.

  14. ly2b6qw5DILZFDvS

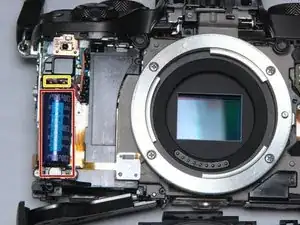

    • When you see the speedlight resevoire capacitor.

    • The capacitor

    • To avoid electric shock and damage, DISCHARGE IT with a 2kohm~10kohm resistor for more than 15 seconds, ASAP!!!

  15. iJQKbnZOskgMF5tt
    iJQKbnZOskgMF5tt
    frLUKkujIIPPgKoq

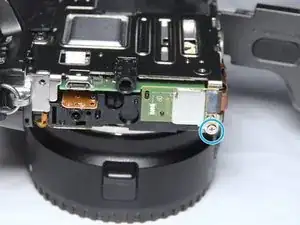

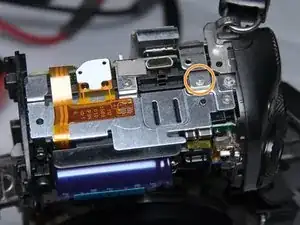

    • Right side, remove 1 screw.

    • Left side: remove 1 screw.

  16. MUSTIStbOEy2crRl

    • Remove 3 metal thread screw

    • Remove 1 self-tap screw.

  17. 1pEmBZ5RALbimYYs
    1pEmBZ5RALbimYYs
    IqNEaAsMBJg4CSEc
    a1ZQUgvwXHBJwtOs

    • Remove EVF plastic case.

    • There are some clips.

    • Remove 1 screw, REMEMBER from which hole!

  18. PtSiISEvb4RxVE4I

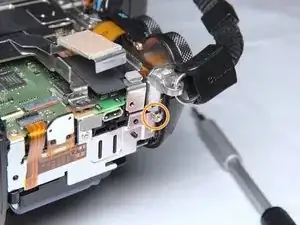

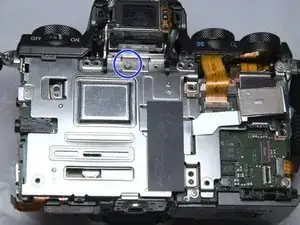

    • Right side.: Remove 1 screw

  19. wn3WVJ3GlTmwuMD2

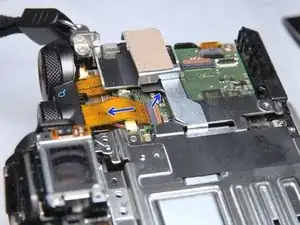

    • Detach FPC.

    • Be gentle enough We do NOT remove top case. Because it's kind of messy with some adhesive...

  20. iBCDuHAEVvafBKnx
    iBCDuHAEVvafBKnx
    3ZbNUGLkeO4tNQSj
    UvqVLlo55QtEaZEA

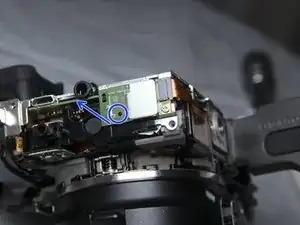

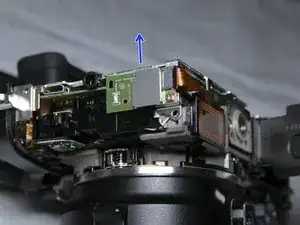

    • When the top case is loosen. remove the metal frame.

    • Or you can remove this BlueTooth board if not being lazy.

  21. d1X5jMOnNFtjTUBo
    d1X5jMOnNFtjTUBo
    ShhD4nfcskTVm5R2
    ejJExQVoClerWABi

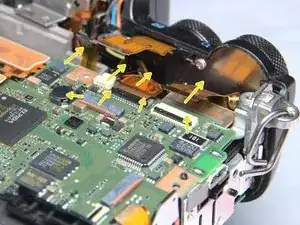

    • IF you can count to 5:

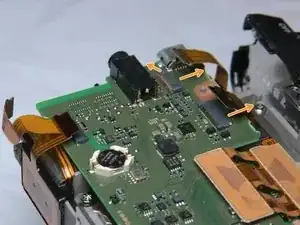

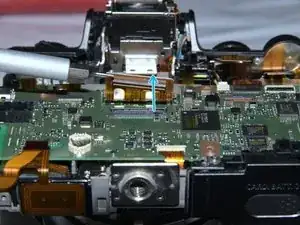

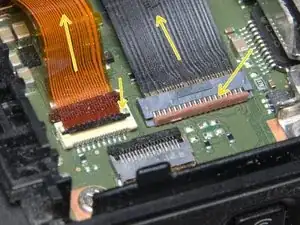

    • PCB top left, detach 2 FPC. 1 ZIF, 1 non-ZIF

    • PCB top right, detach 4 FPC and 1 cable connector

    • PCB top center. detach sensor cable.

  22. sWgaQxaaZmlkCEFU
    sWgaQxaaZmlkCEFU
    mcOIOKqKnLdFBtAb

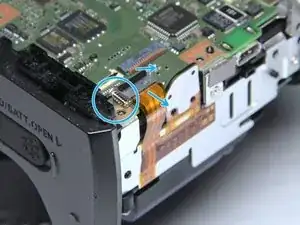

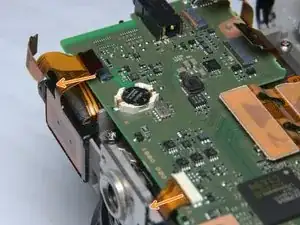

    • PCB right bottom.

    • Remove 1 screw

    • Detach 1 FPC

    • Detach 2 FPC

  23. 6X2gB31nFeYqRcEr
    6X2gB31nFeYqRcEr
    wPoDGwCVM1Xmqc6w

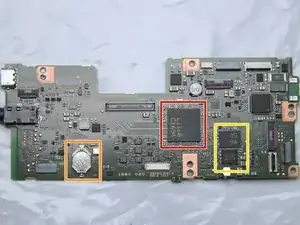

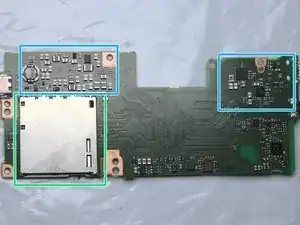

    • Ladies and gentlemen, the mother board

    • Digic and RAM

    • RTC battery

    • Some Flash

    • SD socket

    • Some power supply

  24. mvkGwHBXCtNGYVwS

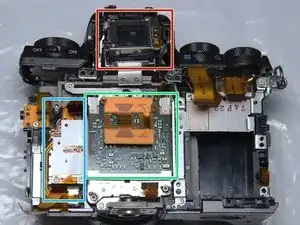

    • EVF

    • Sensor assemly

    • Shutter assembly

    • Without proper measuring devices, I did not mess with the sensor assembly. otherwise the back focal will be ruined.
