Canon Macro Ring Lite MR-14EX Teardown

Veröffentlicht: 12/08/17

Teardown

Einleitung

The MR-14EX is a 2-piece flash apparatus, designed for close-range macro photography (~1:1 or greater); extreme close-ups, and tiny subjects.

The main controller (DSLR hotshoe mount), and the flash lamps (lens mount), are tethered by a coiled retractile cable.

I decided to make a few personal modifications to my own, so I contacted Canon directly, requesting some information and a service manual. Basically, they refused to co-operate, forcing me to do things the hard way. So now I'm documenting my process; sharing the relevant information with you, as I progress.

Diagrams are adapted from the official spare parts catalogue.

  1. JiWSORqfG4O3ipuZ
    JiWSORqfG4O3ipuZ
    An5yOtFGtMcTOMrm
    pCJUAflngFMQ3OSq

    • Remove four screws from the top of the main control module. One in each corner.

    • Plus one in the middle.

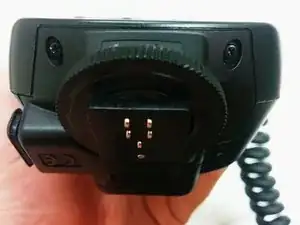

    • And four more (one is obstructed from view in the photo) at the foot of the module.

    • The base will drop out quite easily.

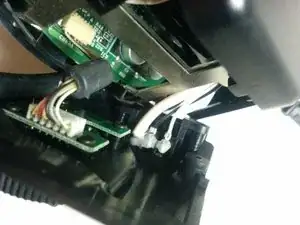

    • Be careful. Only one of these cables is designed to be disconnected from this end. If possible, try to pry it with a tool, rather than tugging it.

  2. dnKjMngUjIK6WlO1
    dnKjMngUjIK6WlO1
    MGya1ZNOtRHN3gfa
    ARctR43WTsuEk3mm

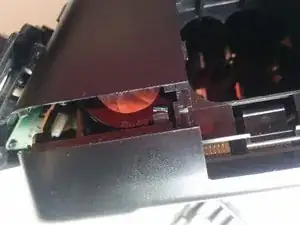

    • The outer shell is held together by internal plastic clips. The two halves come apart at the sides. If you can free a single clip, the rest will slip out, and the rest will fall apart with minimum effort.

    • As you can see, I was a bit rough and broke one of the clips a little bit. I'm not too concerned about it, but try to avoid doing the same if you can help it.

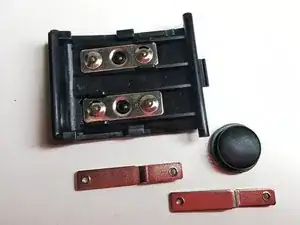

    • Some other pieces may fall out. Including the battery hatch, and some metal pieces. I'm not exactly sure what their purpose is. Perhaps structural reinforcement, or something like that.

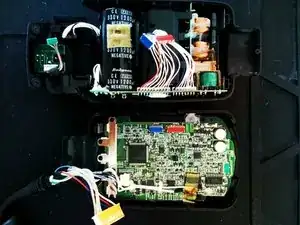

  3. HBW6EpXLcoFkyydU

    • Unplug the various connectors holding it all together.

    • As you can see, I marked up all the plugs and sockets with colour coded paint pens. I recommend doing the same.

    • Only one end of each wiring loom can be disconnected. Inspect with a lamp or refer to my images to make sure you're pulling the right ends.

    • Don't tug on the wiring looms. Some will be stuck tight. I used a long nose plier & hooked pick/probe/scraper.

Tinte & Feder

tjt263

Mitglied seit: 30/12/14

112 Reputation

2 Kommentare

Hi, I was wondering if you happen to take a photo of the capacitor behind the big black one? Mine leaked and completely disintegrated its cover. I can’t find the size/rating/polarity of that capacitor. Thanks : )

AlphegA -

The smaller one behind the big one is 25v 220uF

Corey -
