Einleitung
A Cowon iAudio7 8GB MP3 player torn apart.
Werkzeuge
-
-

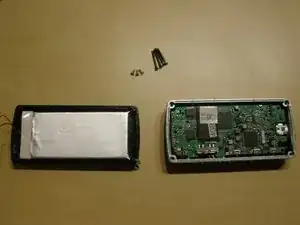

Removed the back of the case and the PCB screws. I had to drill open one of the case screws as it was stuck.
-
-
-

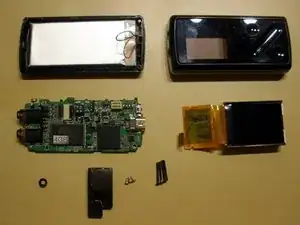

All parts disassembled. Second photo shows back side of the PCB.
-

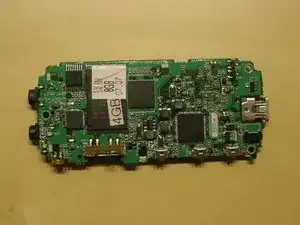

As we can see, the device contains two Samsung 4GB flash chips along with a K4M28163PH-BG75 memory controller.
-
A Telechips TCC771L as main CPU.
-
A PCF50606HN battery/power management chip.
-
3 Kommentare
2011music my songs
Hi! Could you, please, say what the type of display is there?
tikhonte -
If anybody needs a new battery, try this: 3.7V polymer lithium battery 503060 or 053060
The number means the dimensions (5 x 30 x 60mm) The first number is often in 1/10mm
You’d need to solder the original cable to the battery or cables though.
