Einleitung

Need to take apart your mug press? Button got pressed too hard and now is askew in the machine? This is the guide for you.

  1. UEyEsZG2V4SHJfVy
    • Place your device to be taken apart on a clean flat surface with plenty of space.

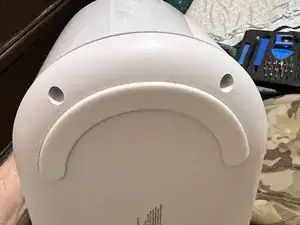

  2. ssL15YY5JrNYRSCD
    • Remove two plastic screw covers from bottom using a pick tool.

    • remove two screws using driver.

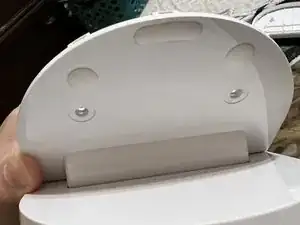

  3. GRPI6osGD6iNYKEl
    • Remove the two rubber screw covers and stick them about one inch above the screws.

    • Remove two screws and place aside.

    • Press the lever flush and remove upper plastic.

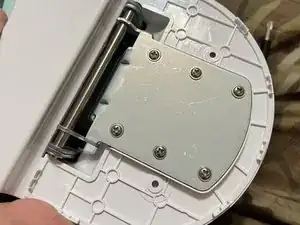

  4. Z2tpLaI1cHX2FEp2
    • Remove six screws and place aside

    • Lift lever and gently remove lower plastic for lever.

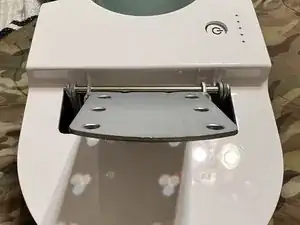

  5. esm43qYdPP6UL5rS
    • Metal lever bracket needs to be in the up position.

    • Gently remove the housing careful to not damage the attached power and usb cables

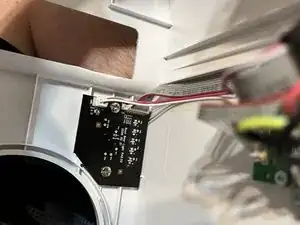

  6. mmJWdsAET2EpG1ny
    mmJWdsAET2EpG1ny
    WEXvbRF4XS2AEYXP
    • Switch is held in place with two screws.

    • If the screws break lose you can replace them with HDD screws

    • Gently thread two HDD screws until tension holds the board in place and no further.

    • DO NOT OVER-TIGHTEN SCREWS.

    • Perform steps in reverse to reassemble being careful to place cables behind the heat shield.
