Einleitung

Teardown of a Curtis RCD718 home stereo.

  1. rsXynp5MnoXIvIBu
    rsXynp5MnoXIvIBu
    rIUhOR6bRFSowDTW
    ZPJA3ADAcktTFqvC
    • First things first, you're gonna need to remove the outside screws that will be in your way later if you don't remove them.

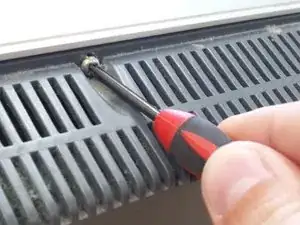

    • Start off on the back, there are a total of 6 screws on the back side of this stereo. You only need to remove 2, the 2 that are on the grey part, not the metal. More specifically, the screw that is under the speaker plug-ins, and the screw on the top middle of the back.

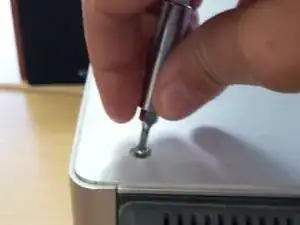

    • Next you will need to remove the screws on the top. This is the only place in/on the entire stereo where the screws are NOT Phillips. For these screws, you will need a hex 2.5 screwdriver, this can be found in most IFIXIT kits. There are 4 of them on the top of the stereo.

  2. XmvNKwhQxdFLypPm
    XmvNKwhQxdFLypPm
    Sk4srEiT6lSeLIAL
    iIPxwITPwXObJBdV

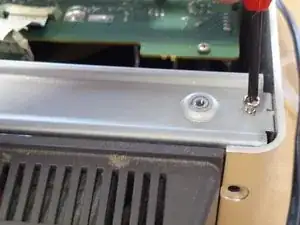

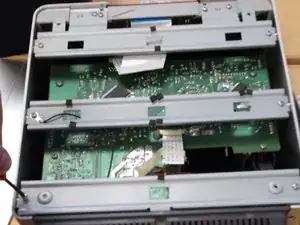

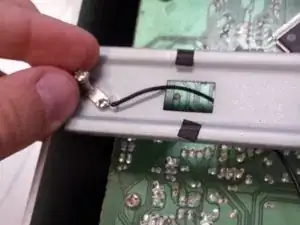

    • Once you have the cover off, you will need to remove the 3 metal bars that are placed across the device. Be careful with the middle section, there is a wire attached to the screw that you will need to slide through the slot in the metal bar.
