Einleitung

Teardown of the D-Link NAS DNS-323.

Fairly easy to open.

  1. ittfa6FjRDXWVVQf
    ittfa6FjRDXWVVQf
    Kl55jUDkxAngfLcX
    j1YSdrLy6cJYL4ZX

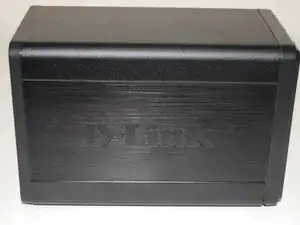

    • The DNS-323 is a powerful NAS with Gigabit Ethernet, print server and extension via software. It can have a FTP server, DHCP, and even Bittorrent!

    • This is my first disassembling, please be patient, correct my grammar mistakes if you find some.

    • This was pretty easy, nothing compared to iPods or Macs.

  2. mbpU3intXdREXpU4
    mbpU3intXdREXpU4
    mw6uocsCMCyfgQiN

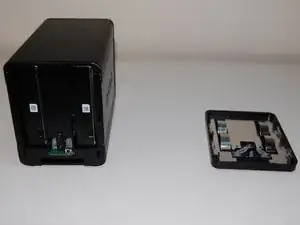

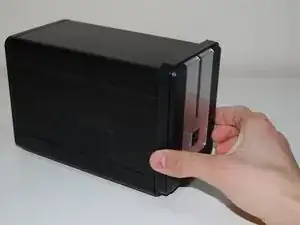

    • First thing first remove the frontal part by sliding it up and pulling out.

    • You will be able to see the hard disks.

    • By the way, the DNS-323 can support up to 3TB of disk space with the new firmware update. That's 1.5TB per disk! Could you imagine such capacity twenty years ago?

    Do you mean 3TB?

    Chris Green -

    did you mean per disk

    Robert Antoine -

  3. MpHW1KsxAptUKNTD
    MpHW1KsxAptUKNTD
    e4avvUCCMWOCWrtU
    DLniVLbXlXZDM66l

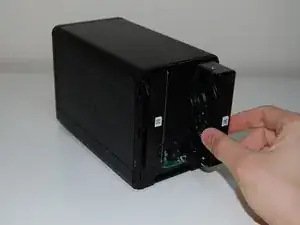

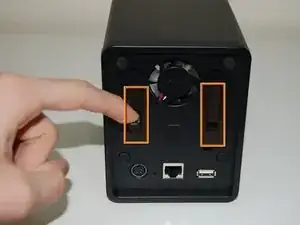

    • Now it's time to remove the Hard Disks.

    • BE CAREFUL, when handling these parts do not touch the circuits, do not shock, and do not let your dog play with them. I'm serious, this could lead into data loss.

    • At the back of the DNS, pull out the two little levers to make the hard drives come out.

    • Gently put them in a safe place until the whole unit is reassembled.

    • The drives are order-specific! Remember if they were right or left, otherwise you will be prompted with a message when accessing the NAS after reassembly.

  4. 3hwJkNIuWwZs2lSD
    3hwJkNIuWwZs2lSD
    bUvXxECXaHoNRiZb

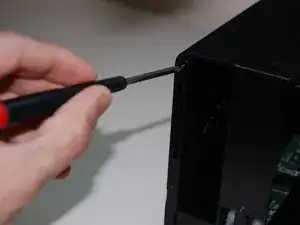

    • Remove the frontal part.

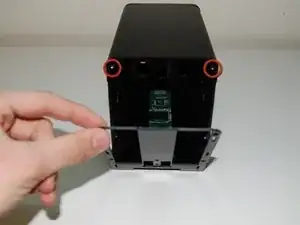

    • There are two screws; remove them with a cross screwdriver.

    • Pull off the little sheet of metal that's covering the front.

  5. ETEOR4OwDhAebX3W
    ETEOR4OwDhAebX3W
    r2oFW3BCJMrHCNEY
    6YRroqxCAmaZx5Uj

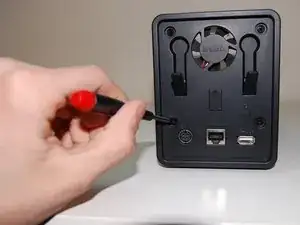

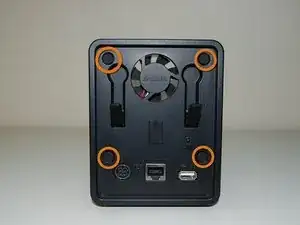

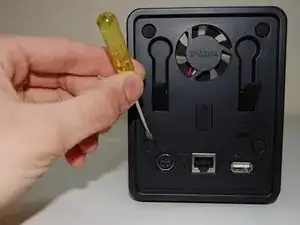

    • Now it's time to open the rear.

    • Locate the four rubber caps which cover the screws, then remove them with a flat screwdriver.

    • Remove the screws with a Phillips screwdriver.

  6. VRUDgGgxhsS4FUyW
    VRUDgGgxhsS4FUyW
    tVNTxi2SVbJrOQKX
    NXNKfqv4ZDmNZTBN

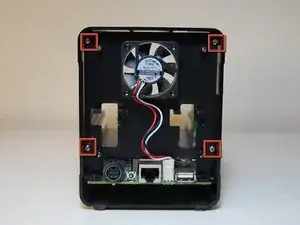

    • Take off the rear and unscrew the next four screw showed in the picture.

    • These screws are hard! Pay attention not to strip them!

  7. iSJSXTkmMvkSFaVv
    iSJSXTkmMvkSFaVv
    wAJtAUOdE4Acd5lf
    srkWym2tDtOmUjZA

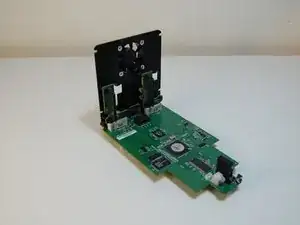

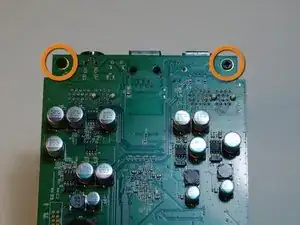

    • Pull the board to make it slide out of the case.

    • The board is quite simple, a little ARM-based computer mounting Linux. (is it?). The condensers are mostly for power supply, doubled because of the two HDDs.

    • Remove two more screws under the circuit.

  8. FVLMNxZhPFBMuFOB
    FVLMNxZhPFBMuFOB
    ndib4UXuAA2kPTkO
    bQxBy4KByVPIKuMs

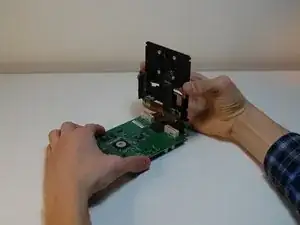

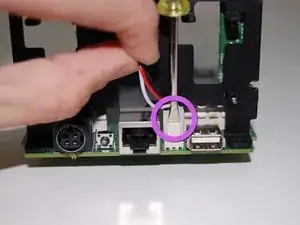

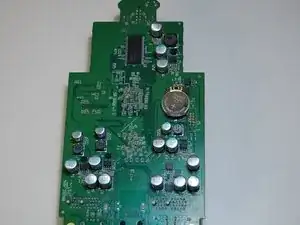

    • Time to remove the iron part.

    • Pull out the fan wire. If you need you can use a flat screwdriver, paying attention not to break it.

    • It's time to detach the SATA adapters with the fan, so you can contemplate the main circuit.

    • Don't remove the battery as this could lead to time loss, some basic (board-level) settings, and unwanted resets.

  9. l4GsygcqMfx2ZTFy
    l4GsygcqMfx2ZTFy
    PmEJMQiHho5rhDvs
    OKqIVUxjJNCiPY2C

    • Now all about the chips

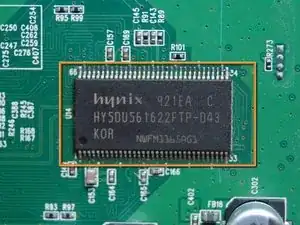

    • The first chip looks like a flash memory for the ROM, or the random memory for the OS, there are two of them; Labelled 921EA C HY5DU56 1622FTP-043 Made in Korea NWFM136SAG3

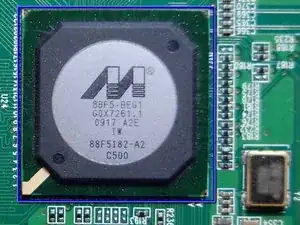

    • Marvell 88F8152-A2 "Feroceon(r)" Storage Networking SoC (System-on-Chip)

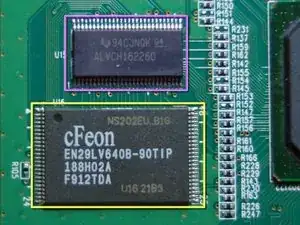

    • A 12 to 24 bit multiplexed D-type latch marked 94CJNQK ALVCH162260 , see more there -->

    • http://focus.ti.com/docs/prod/folders/pr...

    • Eon SiliconSolution Inc EN29LV640B-90TIP 64Mbit Flash memory

    The purple boxed chip is a 12 to 24 bit multiplexed D-type latch: http://focus.ti.com/docs/prod/folders/pr...

    Probably the address buffer for the NOR flash allowing a large device to be mapped into a small address window.

    Hugo -

    Zitat von Hugo:

    The purple boxed chip is a 12 to 24 bit multiplexed D-type latch: http://focus.ti.com/docs/prod/folders/pr...

    Probably the address buffer for the NOR flash allowing a large device to be mapped into a small address window.

    Thank you, corrections have been added to the guide!

    Mc128k -

    The hynix HY5DU561622FTP-D43 is a 256Mbit DDR SDRAM:

    http://www.alldatasheet.com/datasheet-pd...

    The Eon EN29LV640B-90TIP is a 64Mbit, 3V flash memory:

    http://pdf1.alldatasheet.com/datasheet-p...

    Franc Zabkar -

  10. OLJQbT5fFlGyKGBC
    OLJQbT5fFlGyKGBC
    TGDUb4exYoyhx6Dc

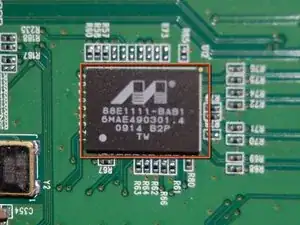

    • Last chip... Marvell Alaska 88E1111 single-port GbE transceiver. Markings: 88E1111-BAB1 6MAE490301.4 0914 B2P Taiwan

    • Remove the last screws.

    • That's not useful unless you want to replace the fan; six screws keep the two SATA connectors and...

    • ...four tapping screws hold the fan.

  11. CDViqMRO6x5KXWnY
    CDViqMRO6x5KXWnY
    Ko6okelsOHknoFE3

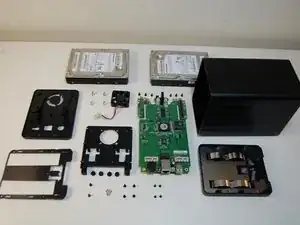

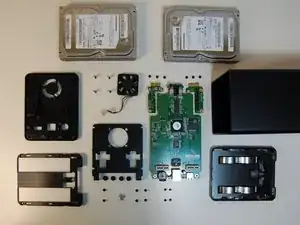

    • That'all folks! The DNS-323 is now disassembled. If you want to put things back just follow this guide backwards!

    • Guide made by Mc128k.

Tinte & Feder

Mc128k

Mitglied seit: 16/02/10

243 Reputation

8 Kommentare

Awesome teardown G!

Miroslav Djuric -

Thank you so much! It's only my first guide, but I'm going to post fun stuff lately!

Please always watch for grammar mistakes!

Mc128k -

Very nice teardown. The pictures were very clear unlike my iPhone dock tear down. I'm making another teardown today. Keep up the good work Mc128k! :)

Nicholas Ouimet -

Yes, that's PER disk, thank you.

Mc128k -

I'm having to buy a replacement power supply for my DNS-323. Do you know the pinout set up for it?

Dave -

I need to know what the value of C111 is. It blew up when i had a lightning strike

n9mbr -

Did you ever get an answer on the value of C111 of the DNS-323? I am having a similar problem right now! Francis

FrancisF -

Question I have a 323 that all i get is a blue blinking light and its not the network one. Need help

Rod Moore -
