The Phantom 2 is DJI's revision to its original ready-to-fly quadcopter. The DJI Phantom, better known as the iPod of drones, is a quadcopter marketed primarily as an aerial photography platform for people with less R/C flight experience. Although the Phantom comes preassembled in a clean, white, plastic frame, the quadcopter contains similar hardware to other hobbyist drones, but in a more condensed package. Check out this guide for a detailed look at the propulsion, control, power, and video systems of this powerful tool.

  1. 3P1rPJFh4UZTaIBl
    3P1rPJFh4UZTaIBl
    CAOHlaoVjnWLyUSH
    n4LeGMLtU5OyHaiC

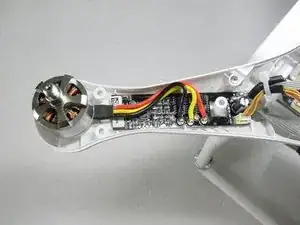

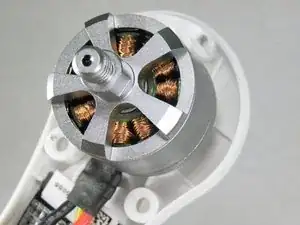

    • Brushless AC Motor (DJIPV-06 DJI 2212)

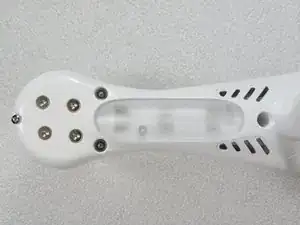

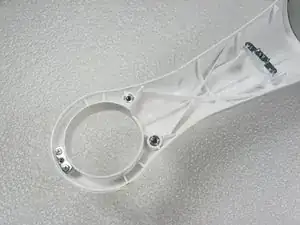

    • Bottom - three color leds. Remove only some screws

  2. yLeAvpr3IjmWywMQ
    yLeAvpr3IjmWywMQ
    21wYrgLA3iKyABvW
    EuKQnNfwuGXXYmCj

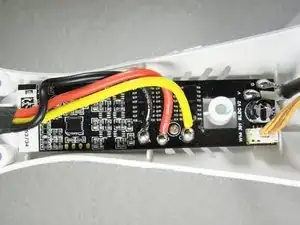

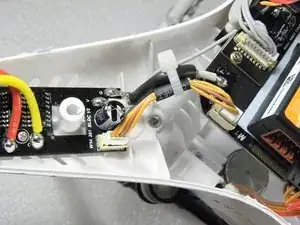

    • ESC - Electronic Speed Control

  3. FyCKeOQOZXUPVYPj
    FyCKeOQOZXUPVYPj
    AZyhDcSRSd4hDVbB
    i3dhH6qTEKvVGQgD

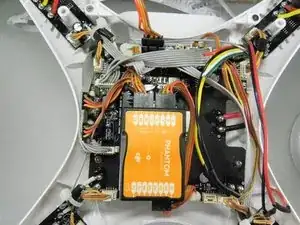

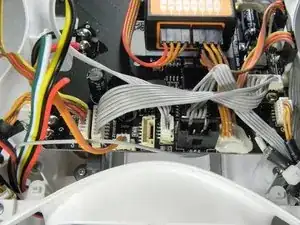

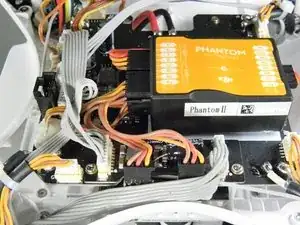

    • Remote Control and Main Control Circuit

  4. luIf5iXwo1W2INRa
    luIf5iXwo1W2INRa
    ZmDPODr63Iv6SoND
    bVAY12F6Jl1I6GEI

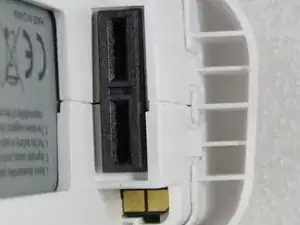

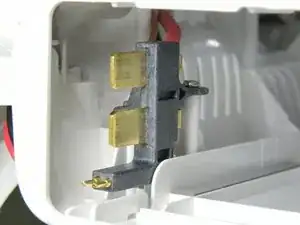

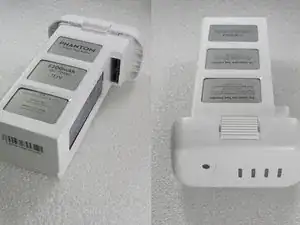

    • Intelligent Battery - LIPO - 11,1V - 5200mAh

  5. TLiYq2ubvma53hfQ

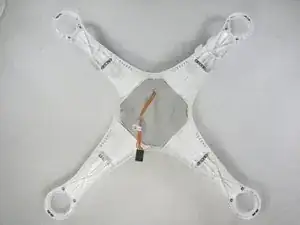

    • GPS circuit and cable

  6. WcVBWX2ZSXRU6UWR
    WcVBWX2ZSXRU6UWR
    KZR2amsUhGDQogUH
    TMBQn5ONirNHIQIc
    • Bottom view : Zenmuse H3-3D Gimbal and FPV transmitter

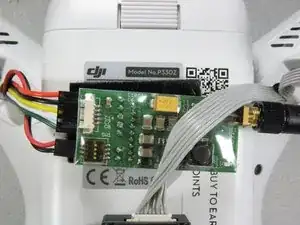

    • FPV transmitter

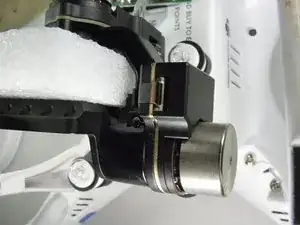

    • Gimbal´s Brushless DC micro motor
