The Streak is new to the ever-expanding Android smartphone market. The behemoth also happens to be Dell's first smartphone, so we felt it proper to give it the royal iFixit treatment and see what makes it tick.

This is also the first device to receive a subjective "repairability" score from iFixit. We're listing the good and not-so-good repair aspects of the phone (as well as its score) in the final step of the teardown. Check it out!

  1. C6eFUAoKftscLEsZ
    C6eFUAoKftscLEsZ
    mOm4LtdrhOO6bdSM
    Ph26K2Xe1SXGDnZs

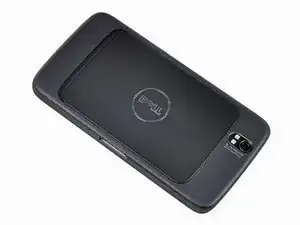

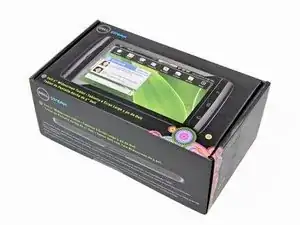

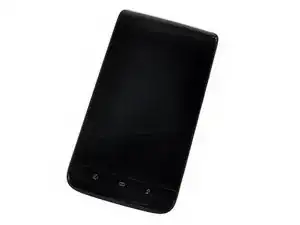

    • At long last, the Dell Streak has arrived on American soil. More importantly, it has landed in the hands of iFixit. And we all know what that means...

    • The Dell Streak features:

    • 5" 800x480 TFT LCD Display

    • 5 MP rear-facing camera and VGA front-facing camera

    • Android 1.6 (Donut) operating system

    • 1 GHz Qualcomm 8250 Snapdragon processor

    • Corning Gorilla Glass front panel

  2. nHlgCYWlTOJr4I1V
    nHlgCYWlTOJr4I1V
    Zggf3jERkZ6yople
    y6Pq42sZSsdSjLxT

    • The battery cover detaches easily, like all battery covers should.

    • Boy, this looks kind of familiar...

  3. 5IcmGw3A3GouJTdS
    5IcmGw3A3GouJTdS
    KcGy6hGBedtnccNA
    44LmqevFWtmGSPqB

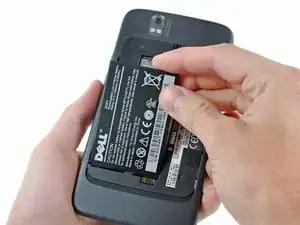

    • After the rear panel is gone, the battery can be easily removed from its home.

    • The Streak's 3.7 V 1530 mAh (5.66 Whr) battery reportedly powers the gargantuan device for...well...we don't know how long.

    • The fact that Dell didn't publish the battery life hints at the fact that it isn't too great. What do you expect from a 5" display?

    • The inner face of the battery is covered with a sheet of steel, rather than plastic, to decrease its overall thickness. Perhaps the Streak also doubles as body armor?

  4. XkUPaGjm4AmbCNBZ

    • After the battery is removed, the pre-installed 16 GB microSD card can be slid out of its socket.

    • There you have it for Dell's approved user serviceability. Now let's void some warranties!

  5. jNVNbUFJNuoQWaNE
    jNVNbUFJNuoQWaNE
    VhPDDXqsQfmZCqAH

    • The rear of the device features a noticeable absence of screws. Looks like we're gonna have to dig for them.

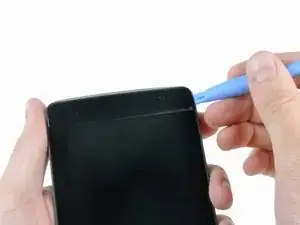

    • A plastic opening tool is all that's needed to remove the bezel securely stuck to the top edge of the Streak.

    • We found the screws! This is a good sign.

  6. jFYtPsBcfHAtAHPL
    jFYtPsBcfHAtAHPL
    dLYgu31RbpklCslR

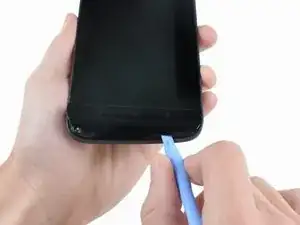

    • Similarly, the lower bezel can be easily pried up from body of the Streak.

    • The capacitive control circuitry is securely attached to the inner face of the lower bezel, so it's highly advised to pry up the bezel from below (as pictured), to make sure the circuit does not receive any damage.

    • Since the connector is inside the device, it's a good idea to leave the bezel attached for now.

    • After a bit of digging, the five T5 Torx screws securing the rear case can be removed.

  7. CvTEXG3GNcDtUA1b
    CvTEXG3GNcDtUA1b
    f1LAPoqeQFlFKhML
    ZrMVsKdPZRKEPgPl

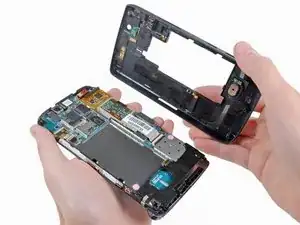

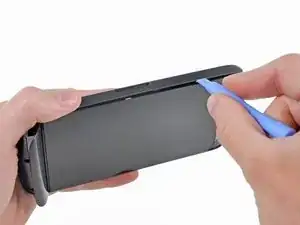

    • After some light prying with a plastic opening tool, the rear case comes off with ease.

    • The thick Gorilla Glass front panel is visible at this point. Its rugged construction should be able to withstand drops from above waist height.

    • The rear case houses many components, including:

    • LED flash

    • Headphone jack

    • Loudspeaker (for speakerphone)

    • Antennas

    untrue....the dell streak is actually very fragile! see http://forum.o2.co.uk/viewtopic.php?t=49... for the problems us brits are having

    Matt Storey -

  8. ydiKiYGGDIGEBqWy
    ydiKiYGGDIGEBqWy
    1GsP3QuoP2BxYe4k
    Bn1vXOHIYHxRRgFE

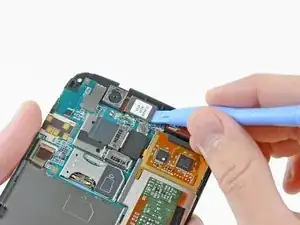

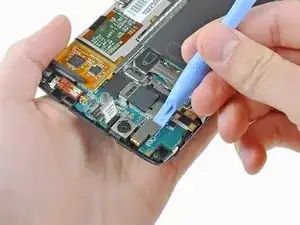

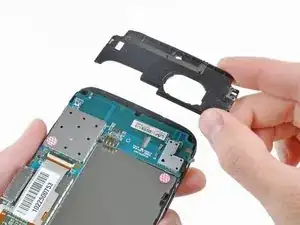

    • The digging continues as we remove a small plastic bezel attached to the lower edge of the motherboard.

    • At this point, both the front-facing and rear-facing cameras can be disconnected from the motherboard.

  9. BlZ4HtSaleeFxwXO
    BlZ4HtSaleeFxwXO
    IZCX2efFZsNujTxk
    oq1QKUHvlkUgUNNH

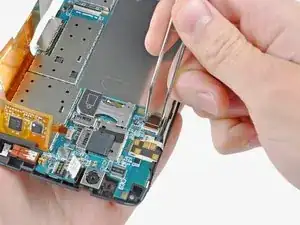

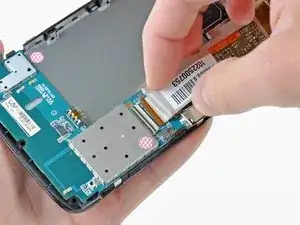

    • Before lifting out the motherboard, the touchscreen, LCD, and control button ribbon cables must be disconnected.

  10. dpekJOHUIbnyUlKw
    dpekJOHUIbnyUlKw
    TT2OafPGWZqceRsm
    GAZbPMtnp3FNMZJE

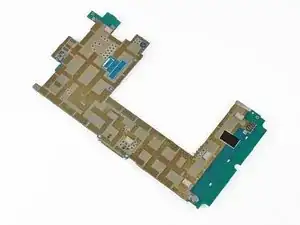

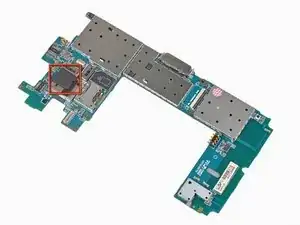

    • The "C"-shaped motherboard comes out easily. Rather than using daughterboards like the Droid 2, the Streak has all components attached to this singular motherboard.

    • This is most likely due to the extra space afforded by designing the Streak around its 5" LCD.

    • A 2 GB non-user accessible microSD card can be seen near the top of the motherboard.

    • This card is used to house system & applications files only, and Dell doesn't want you to remove it.

    I have 2 dell streak 5. first of them's screen is broken (rest works very well). Second one does not work anymore because of trying to change its operating system (rest of it works very well). I thought instead of changing its screen (it looks more complicated than changing main board) i can transfer first's main board to second. My question is instead of changing main board completely can i just transfer this card with plastic opening tools and screwdriver? thanks for your answers

    irfan yilmaz -

    Yes, you should be able to swap out the other motherboard into the new unit with the working screen. Let us know how it goes! If you need any extra parts just let me know, and let me know if it works, i might be able to take that old mobo you don't want off your hands. Just let me know! I've still got some 5" Streak parts left I could put back together. =)

    fugitiveALiEN -

    But is it possible to damage the working one after i swap. if i make a nonreturnable damage? it means losing the working mainboard. maybe?

    irfan yilmaz -

  11. NXjTCXFpTWsBjKKY

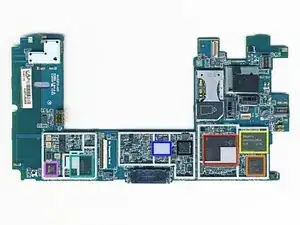

    • Big players on the motherboard include:

    • Qualcomm QSD8250 Snapdragon processor

    • Analog Devices ADV7520 Low Power HDMI™/DVI Transmitter

    • Hynix H8BES0UU0MCR NAND-based MCP

    • Qualcomm MXU6219 RF Transceiver

    • Qualcomm PM7540 Power Management chip

    • TriQuint Semiconductor TQS 7M5012 Power Amp (Quad-band GSM)

    • Texas Instruments TPS 65023 Integrated Power Management IC

  12. 1OByKktS5af2rbfe

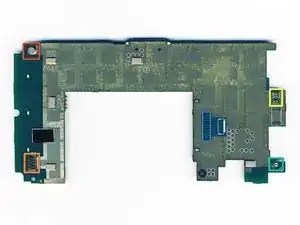

    • The back of the motherboard is relatively featureless, with a few notable exceptions:

    • Microphone

    • Pressure contacts for the capacitive controls on the lower bezel

    • Proximity sensors to tell the touchscreen when your face is pressed against it

    • Ambient light sensor for the front-facing camera.

  13. ciSK4eDKYRSw2VmB
    ciSK4eDKYRSw2VmB
    cFoIw1X2bVRAYWsP
    EScjFFhFbcHxLgdm

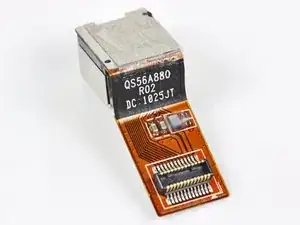

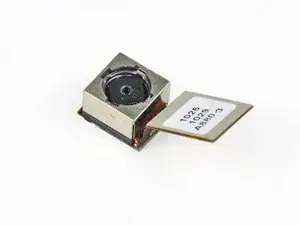

    • The Streak's cameras pretty closely resemble the iPhone 4's front and rear facing cameras.

    • The auto-focus rear-facing camera is good for 5 MP still images, while the front-facing camera shoots at VGA quality.

  14. jt6LksV1afb12FJU
    jt6LksV1afb12FJU
    AerYlKrNQyU3wIxW

    • Sadly, the Streak's LCD is permanently adhered to the front panel glass. However, that LCD/glass subassembly is held in the front panel with very strong 3M adhesive, and could be removed with enough careful prying.

    • The LCD is bonded to the front panel glass to increase the strength of the device and sensitivity of the capacitive touch panel.

    • The inner face of the front panel assembly isn't all that exciting. The ear speaker and vibrator motor can be seen near its top edge.

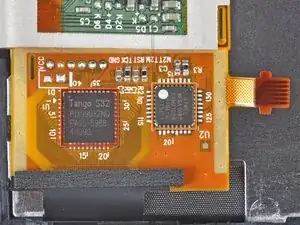

    • The touchscreen ribbon cable houses:

    • Pixcir's controversial Tango S32 Touchscreen controller

    • Atmel's ATmega168P 8-bit AVR microcontroller

    The LCD is only a display, and the Gorilla Glass does the touch-sensing. Replacement screen assemblies are usually found as 1 unit, pre-bonded.

    perfectapproach -

  15. r1XFMhlXJC3Gdqsc
    r1XFMhlXJC3Gdqsc
    Q5pvoNr5PjBggCoe

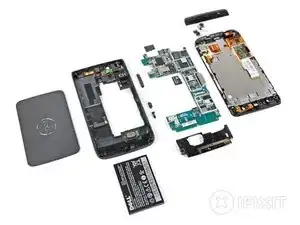

    • Dell Streak Repairability: 8 out of 10 (10 is easiest to repair)

    • Good: Replacing the battery is super easy and takes less than one minute.

    • Good: Opening the device requires prying the bezels and removing five screws.

    • Good: Cables use standard connectors, including our favorite, ZIF connectors.

    • Neutral: The rear panel feels cheap and deforms easily for a $600 device.

    • Bad: The LCD is bonded to the Gorilla Glass, increasing the cost of fixing the device if you break just the glass.
