Einleitung

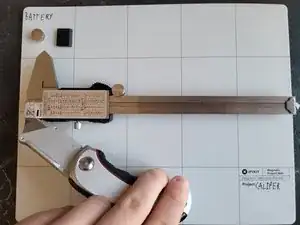

  1. DkBNHgPovbpKYmdI
    DkBNHgPovbpKYmdI
    EhGa4NytlPFVCObN
    • Slide the battery compartment open.

    • Pull out the battery.

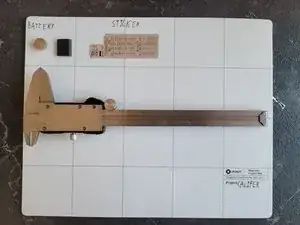

  2. QFiSWUyotABqID5R
    QFiSWUyotABqID5R
    tHnHIoUnYfT3wYZT
    • Remove the sticker and place it on a clean sticker-friendly surface.

    • Screw out the 9-mm screws using the J0 Bit.

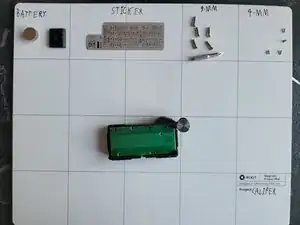

  3. 2tP5fkCmeCeKXcUD
    2tP5fkCmeCeKXcUD
    lQ6KKhhJEUtVvWEA
    vBUPtBtwUXfra3oB
    • Screw out the 4-mm screws holding the PCB in place. Use the J000 bit.

    • Now take out all the parts from the housing.

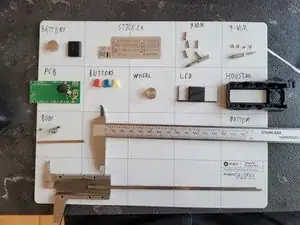

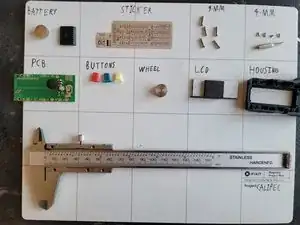

  4. XdNNPF6XwpgbRXgB
    XdNNPF6XwpgbRXgB
    Ev1irLNFKqklpZTT
    • Remove the right/bottom 6mm screws.

    • Then the last 2 and the tightener screws. So you can pull it apart.
