Einleitung

Find out what makes a cordless drill/driver whirr.

  1. QFSv1TKxNUyfZCsY
    QFSv1TKxNUyfZCsY
    EoNKE3kaxFsunS3N

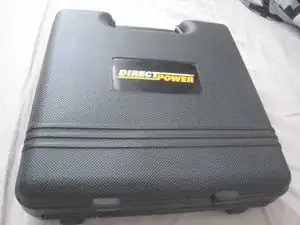

    • The driver kit.

    • This is a more-or-less no-name cordless screwdriver/drill kit, but its construction more or less matches most of these devices.

  2. O63rFVSsbmucGTtG
    O63rFVSsbmucGTtG
    owEfVK3dZ1ZUAFWo
    ZYEb4GhKWn5evQMc

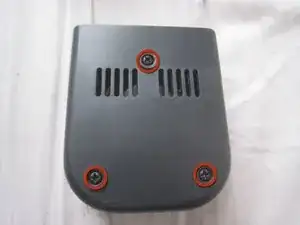

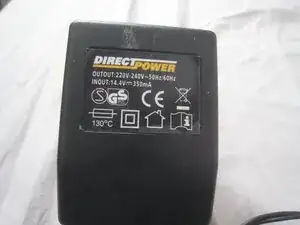

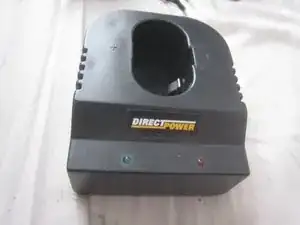

    • The charger consist of a standard wallwart, output 14.4V 350mA, along with a little block (weighing nothing at all) to connect to one of the battery packs.

    • To open the charger block, unscrew three #1 Phillips screws.

  3. UIxDVaKTLTmaKlFw
    UIxDVaKTLTmaKlFw
    DVcGyy2ITREG1bLo

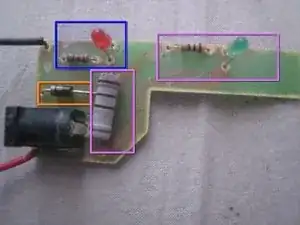

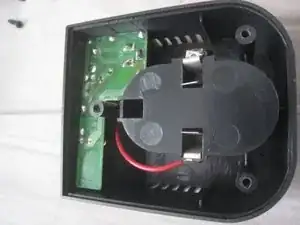

    • After lifting off the bottom, the PCB is exposed, and you can lift it out of the charger block along with the battery contacts. On the PCB we find:

    • A diode to protect against reverse current.

    • An LED and resistor that is on so long as the box gets power.

    • A giant 10 Ohm resistor to slightly current-limit the charge, and across which the green led and resistor are placed -- this will therefore light up as long as significant current passes to the battery.

  4. rE5hcKPKxX3EmOBE
    rE5hcKPKxX3EmOBE
    thQBxlOcPsBV1PiT

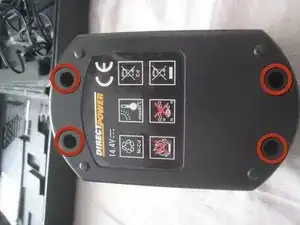

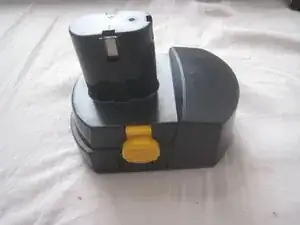

    • One of the two battery packs. To open, remove

    • Four #1 Phillips screws.

  5. xjSDwTekBv5rkwV1
    xjSDwTekBv5rkwV1
    vGYNMTPnQXIguBJD
    UDJtt3jiJGhFJrZH

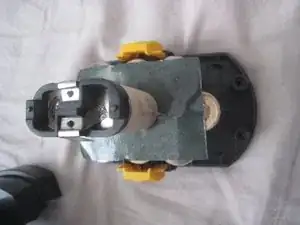

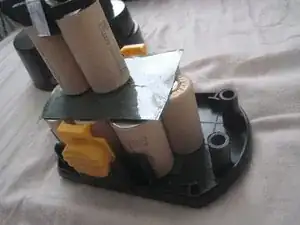

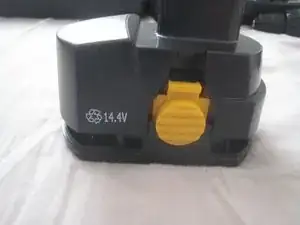

    • After removing the screws, turn right side up again and lift off the plastic cover, exposing 12 NiCd cells in a string, and nothing else.

    • Note that there is room on the right side for three more cells, which would make a 18V battery pack.

    • Especially cheaper makers usually have versions for 7.2V/9.6V/12/14.4/18V all using the same plastic, just more or less cells and a different motor.
