Disassembling of HP 625 Laptop Teardown Guide

Geschrieben von: samuel
  • Kommentare: 5
Disassembling of HP 625 Laptop Teardown Guide

Schwierigkeitsgrad

Moderate

Schritte

42

Zeitaufwand

30 Minuten

Einleitung

On This Segment of Hp 625 Teardown, You Will Learn How To Disassemble and Build More Skills Towards Your Endevour.

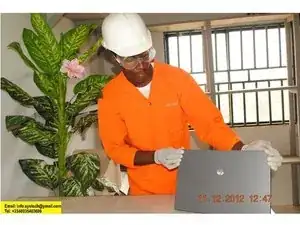

  1. XTEOuUDLBJp1NCuV

    • Overview of Hp 625.

  2. B1nnPAjEbxcfHWmZ

    • Front View of Hp 625.

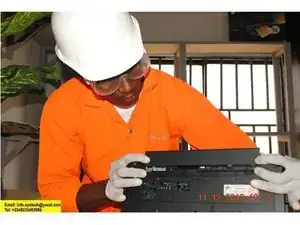

  3. 2j3jKftDQN4O3Rx4

    • Removal of Hp 625 Battery.

  4. 32RSTMvAoaVRMkj2

    • Removing of Hp 625 Battery.

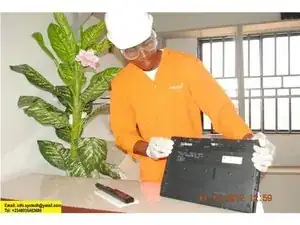

  5. 4srVIKvI2QdhQTHU

    • Hp 625 Battery Removed.

  6. rvMrTgvk6Itn2cCX

    • Unscrewing Hp 625 Service Door (4 Screws).

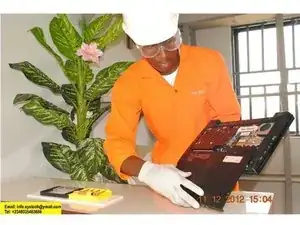

  7. NFHRmypgUcFVqFpL

    • Removing Hp 625 Service Door.

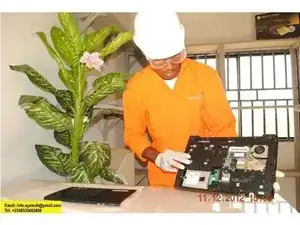

  8. mwDmsQbUtQ1kV2sY

    • Hp 625 Service Door Removed.

  9. S51KBASv2YoiQYaC

    • Unscrewing Hp 625 HDD, (3 Screws).

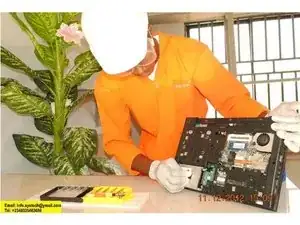

  10. RrRLoCeOdPJfwoGL

    • Removing of Hp 625 HDD, (Gently Slide).

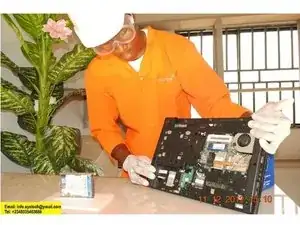

  11. MqesEM4HadBgHuZm

    • Hp 625 HDD Removed.

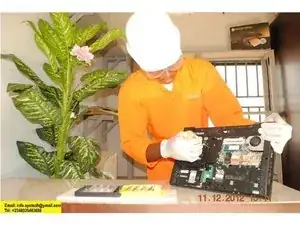

  12. TBiPSWgste6ydWsa

    • Unscrewing of Hp 625 DVD Drive, (1 Screw)

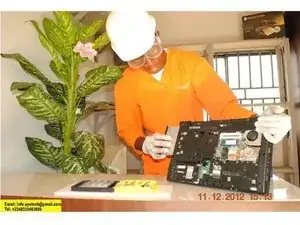

  13. 6bJeIIZ1sgTOlNJX

    • Removing of Hp 625 DVD Drive, (Carefully Slid).

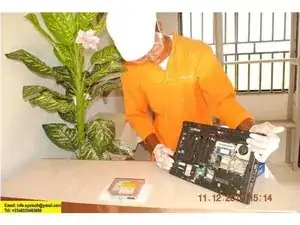

  14. gfPPSQOaYiOWfwyD

    • Hp 625 DVD Drive Removed.

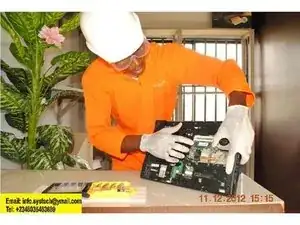

  15. fREvFhHsbXxuRhq5

    • Removing of Hp 625 DDR3 RAM, (Together With Two Hands Expand The Clips a little).

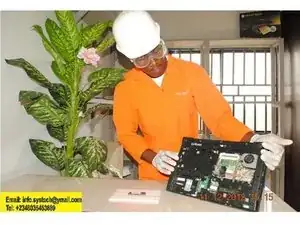

  16. ynrWYVVtKbwiWLLQ

    • Hp 625 DDR3 RAM Removed, ( Be sure not to Touch The Gold Plated Pinouts).

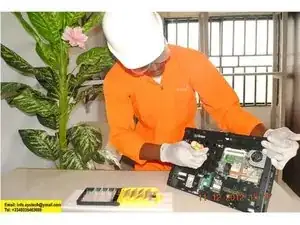

  17. RsnKnbfJA1VBy2d6

    • Unscrewing of Hp 625 Keyboard, (6 Screws Noted By Keyboard icon).

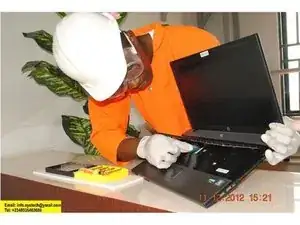

  18. efNwp1s6yoXPG6oo

    • Removing of Hp 625 Keyboard Flex Cable, (Gently Release The Locking Mechanism).

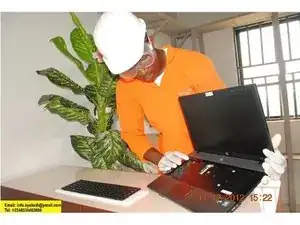

  19. 2LpZBXSBTlSv1PHC

    • Hp 625 Keyboard Removed.

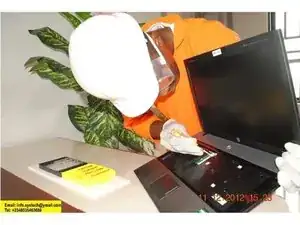

  20. JPsxkJWi3qR4LSRF

    • Disconnecting of Hp 625 Power Flex Cable From Connector, ( Fairly Unlock The Locking Mechanism).

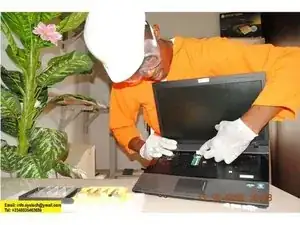

  21. jooHEbDmNlDFyind

    • Hp 625 Power Flex Cable Disconnected.

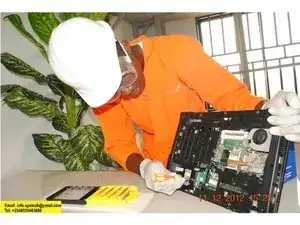

  22. 2bNlXaARQgUEJUNL

    • Unlocking of Hp 625 Palm Rest, Through The HDD Bay.

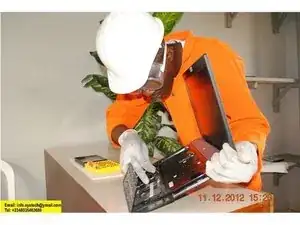

  23. dDkymIYnPHxgY2DT

    • Disconnecting Touch Pad Flex Cable and Removing of Hp 625 Palm Rest.

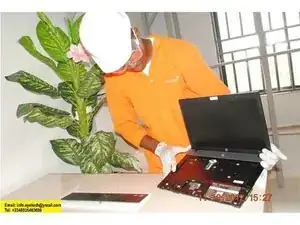

  24. UdABTWECtYYvrEm6

    • Hp 625 Palm Rest Removed.

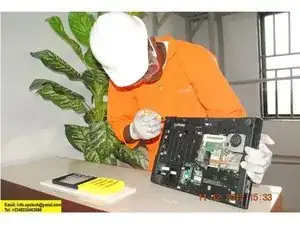

  25. CQYtSfh4vmUIopmw

    • Unscrewing of Hp 625 System Casein, (16 or More Additional Screws Verify Very Well For Additional Screws Needed To Be Unscrewed Before Removing The Casein).

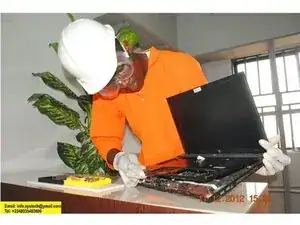

  26. RxMh5IVbGF3icU6A

    • Removing of Hp 625 Front Casein, (Firmly Pry the Casein, Starting from Any Edge).

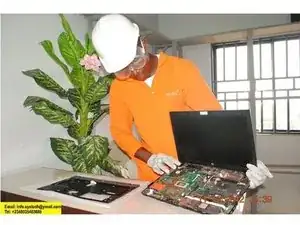

  27. fyurAESGVZqt22yk

    • Hp 625 Front Casein Removed.

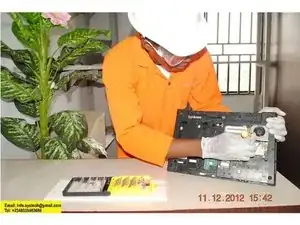

  28. gJXeAqNOl3VUn5OV

    • Unscrewing of Hp 625 Thermal Fan, (1 Screw).

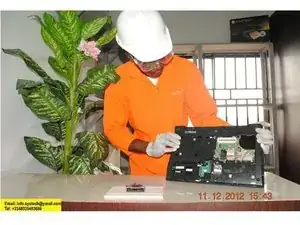

  29. FVUBRI1DAcRhLpfV

    • Hp 625 Thermal Fan Removed.

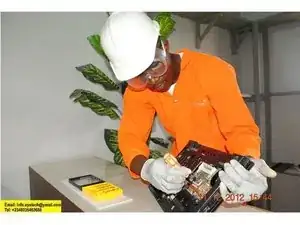

  30. UXpFsojiWYY1qMhX

    • Unscrewing of Hp 625 Thermal Conductive Heatsink, (6 Screws).

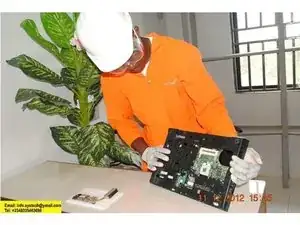

  31. oRetJNMRUdobnZfj

    • Hp 625 Thermal Conductive Heatsink Removed.

  32. rLXekbtNuHWBtlCD

    • Unlocking of Hp 625 AMD Processor From Socket, (Anti-Clockwise).

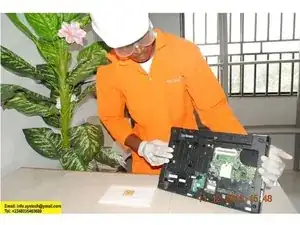

  33. nDsQ13g2WDaJ2NiC

    • Hp 625 AMD Processor Removed.

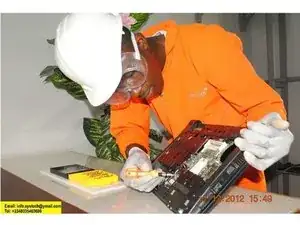

  34. W6oCMnOnaQdQTPgc

    • Disconnecting of Hp 625 Wi-Fi Cables From Wireless Card.

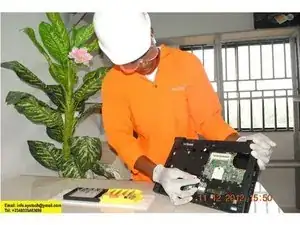

  35. VYoPTLwe3HGqnD4p

    • Hp 625 Wi-Fi Cables Disconnected.

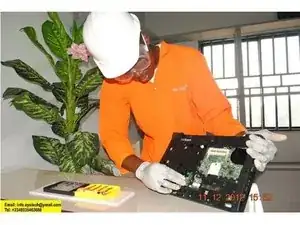

  36. 6WojafQ4IMi4URe3

    • Disconnecting of Hp 625 HDD Card From Motherboard.

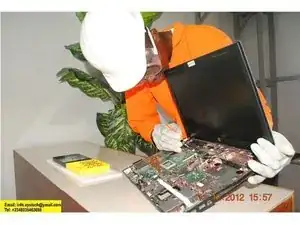

  37. nr4daJnkNZlyQ6XP

    • Disconnecting All Cables of Hp 625 Connected To Motherboard.

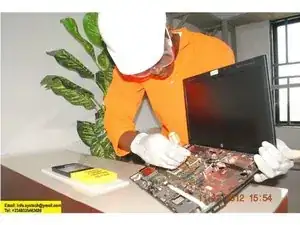

  38. l6kBgAJoTdwtZBvE

    • Unscrewing Hp 625 Motherboard.

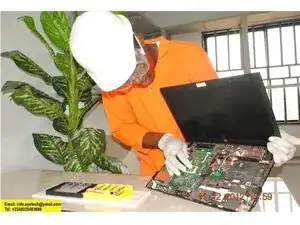

  39. S2SQVY6YKYNFNqWF

    • Removing of Hp 625 Motherboard.

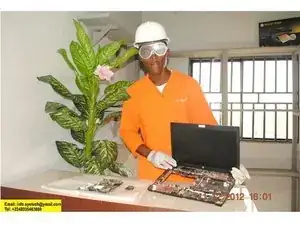

  40. 2NvQPdF2VQV1UlVe

    • Hp 625 Motherboard Removed.

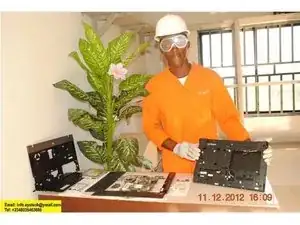

  41. BET2rltba4AYmRB3

    • Complete Disassembled Parts and Components of Hp 625.

  42. KL6joauMNgPiKQAH

    • 'Reparatur ist edel

    Excellent guide, and more importantly: Outstanding outfit!

    Michael Bates -

    Is there an easier way to replace the rtc battery than taking the whole thing apart - ANYONE???

    kathmortimer -

Abschluss

To reassemble your device, follow these instructions in reverse order.
