Display Assembly Teardown

Geschrieben von: Keagan Weis
Veröffentlicht: 13/06/21
  • Kommentare: 0

Display Assembly Teardown

Veröffentlicht: 13/06/21

Teardown

Einleitung

Guide to show how to tear down the display assembly from a 2013 MacBook Pro 15”

**I performed this teardown on a display assembly that already had cracked glass and a broken LCD and did not test it afterward.**

  1. YABAR2wUlw1ARswX

    • This is a very in-depth process with fragile plastics that easily break. Continue at your own risk.

    • Be cautious of any components that are already broken before beginning

  2. svlOQ2GscNSIjuMK
    svlOQ2GscNSIjuMK
    McUdHeNUJi4JdmZU

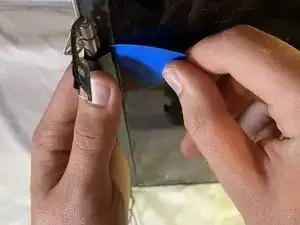

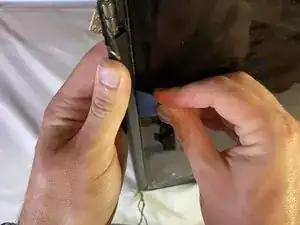

    • Loosen the adhesive between the hinge cover and screen by inserting an opening pick and sliding it across

  3. JAfj5ffXfljB4dpV
    JAfj5ffXfljB4dpV
    DUYCTX52wYNqUGXc
    fSiJNBgQiKJcXCDc

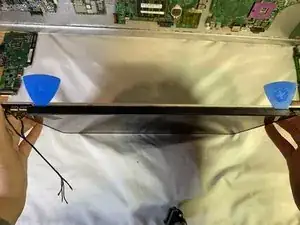

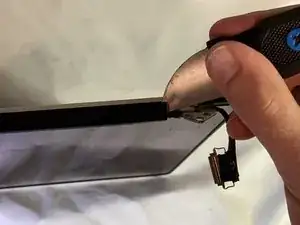

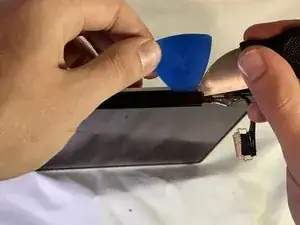

    • Take a Jimmy (or similar tool) and pry up one corner of the hinge cover, and then insert an Opening Pick (or similar tool) where the Jimmy was

    • Repeat the same process with the other side

    • Now you should have one Opening Pick on each side of the hinge cover

  4. Tb1slmyTWAC3iTVA

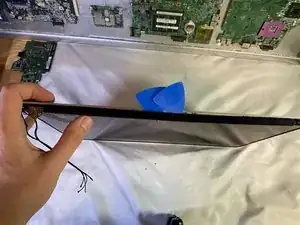

    • Slide the picks toward the center of the plastic hinge cover

    • It doesn't matter which side you do first, or if you do one the entire way. The reason for putting two in was in case one slips out, then you don't have to use the Jimmy again.

    • You may experience a good bit of resistance, and the plastic may begin to bend and break

  5. UURLo2RUYXZYf1ZC
    UURLo2RUYXZYf1ZC
    CHJNIwTXDrn5lEsE

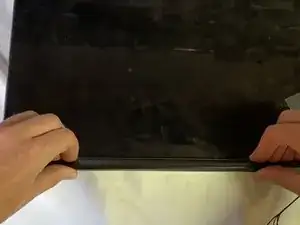

    • Roll the hinge cover toward the screen to free the clips nearest to the glass

    • The plastic clips holding it on are very fragile and will break if not done carefully

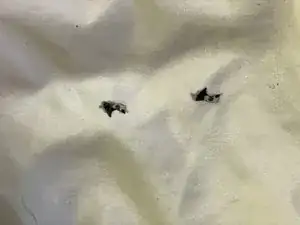

    • There are two little clips that fit in near the area the Jimmy was inserted earlier, and will come out at this point. They are very fragile and may break.

  6. S3ZIhLVoYkHKcERF
    S3ZIhLVoYkHKcERF
    X1dBQBXRbyiFZUun

    • This step is for reassembling the display assembly, if you somehow didn't irreversibly damage it. (also congrats!)

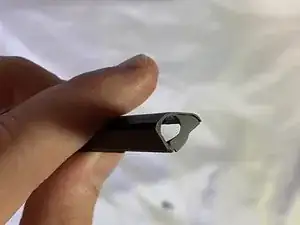

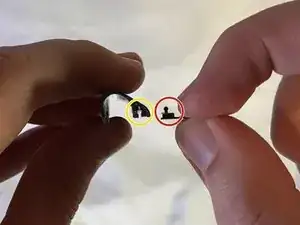

    • The clips are put back in place by first lining up the little pin with the hole on the hinge cover

    • Then, push it up and back into its place

    • Grab a Phillips 00 bit and take out
