Einleitung

  1. YqevVwqyuNwRB2ng
    YqevVwqyuNwRB2ng
    NQJQ1KffUQHaKxBO

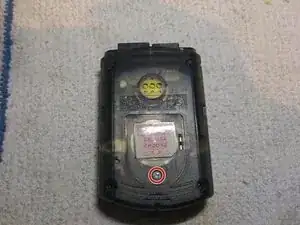

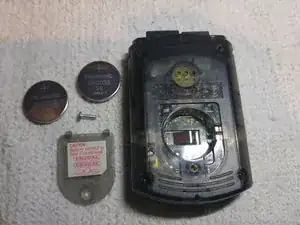

    • Remove the silver screw and batteries

  2. BvuWVnYnNqRGqhxO
    BvuWVnYnNqRGqhxO
    sHuNKy2hqPVGjJKB
    jvRUOCcUHqFuPtbB

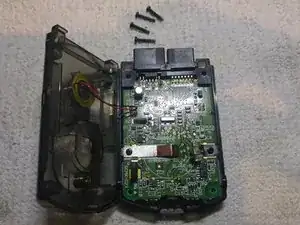

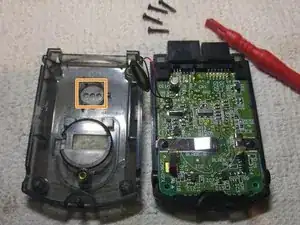

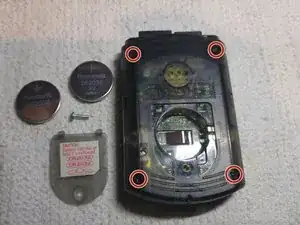

    • Remove the four black screws

    • Be careful of the speaker wire

    • Carefully peel the speaker away from the shell with a Spudger

  3. NwuHV5S44uEESDue
    NwuHV5S44uEESDue
    aLTCyDyOEdvQtWnM

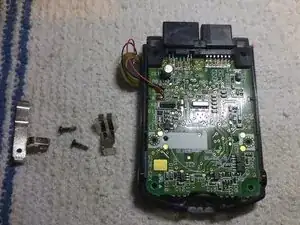

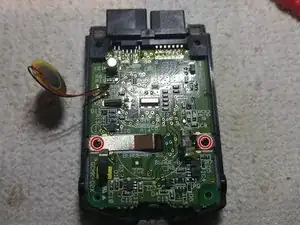

    • Remove the two battery terminal screws

  4. ir6SI5otSReajqOG
    ir6SI5otSReajqOG
    OfelsHDmaKGsICvL
    i1eIeywlkggHKlhx

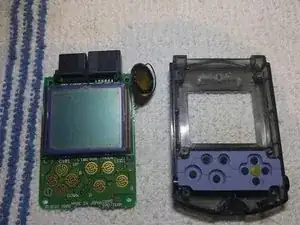

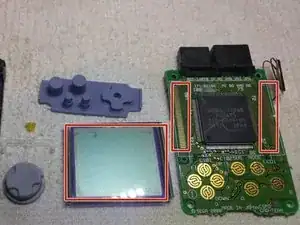

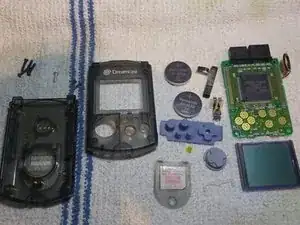

    • Lift the main board from the shell

    • Remove the screen from the motherboard

    • Remove the screen stay, D-pad and rubber buttons from the shell

    • And you're done!
