This is a Generation 4 DualShock 4 Controller. It is a Version 2 controller. It features parts exclusive to the Generation 4 line of PS4 Controllers. This site shows a gen 4 being torn down for your viewing pleasure.

  1. cgLCycIRdCYMCRAI
    cgLCycIRdCYMCRAI
    SOXItEMh2vHJHQVp
    OMI3dwKZ1FGjrwIi

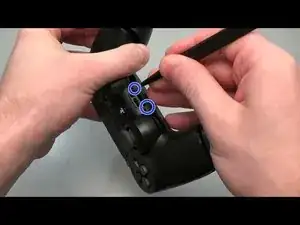

    • Remove 4 PH00 screws

    • Undo the 2 clips underneath

    • Lift the bottom shell. be cautious of the ribbon cable connection.

  2. ihcOBiXvgprgIeGt

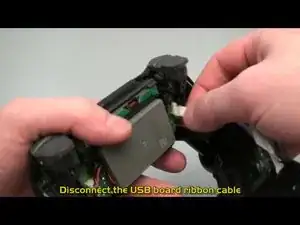

    • Undo the interface connecting the ribbon cable to the mainboard.

  3. SpuWKejQcHV5SuDq
    SpuWKejQcHV5SuDq
    ly2aERivJwKNCISN
    DYjdfFMKEh1ad3r2

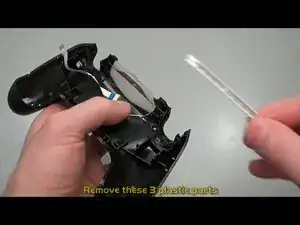

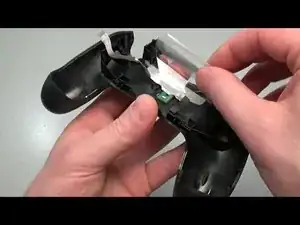

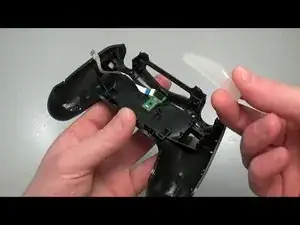

    • Remove the top light bar

    • Remove the light carrying plastic.

    • Remove the light triangle.

  4. p2jXQGitjDjj6dHy
    p2jXQGitjDjj6dHy
    44GgdZiyRpabFP2D

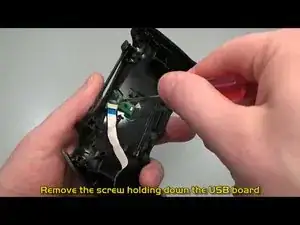

    • Unscrew the PH00 screw to Release USB Chip

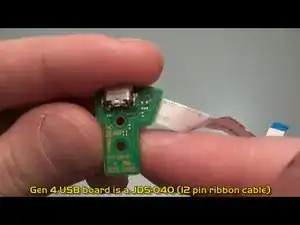

    • This Generation 4 Controller uses a JDS-040. This board is authentic due to its colors and markings.

  5. SXQBuhyreixwTZya

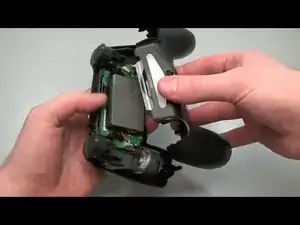

    • The battery is secured onto the Battery Bracket with a small amount of adhesive. Lack of adhesive is a red flag that this controller has been previously worked on by a third party.

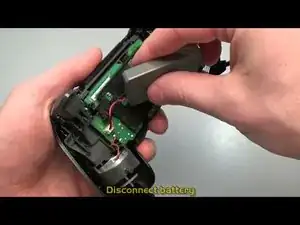

    • The battery uses a friction fit interface with two pins. Use tweezers to remove.

    • Check the battery for authenticity. A real battery is needed. There are some repairs that replace the rectangular gray battery with a plastic battery that looks like it can be cut. Fake batteries are questionable in quality and detrimental to the controller.

  6. 4QuCBMCDgGbkVSQQ
    • The battery brace is held by friction by pegs on either side of the brace. Use tweezers to remove the brace

  7. DSCIWnMLpEjolvda
    DSCIWnMLpEjolvda
    tyJvdRhIsUV4CnIv
    MXQvHx4XhVuVGcWr

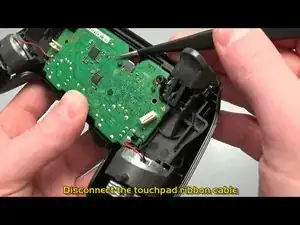

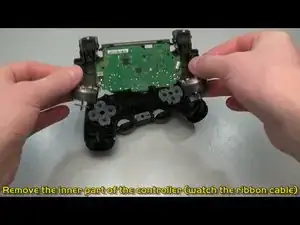

    • Detatch touch pad at its interface. Be careful.

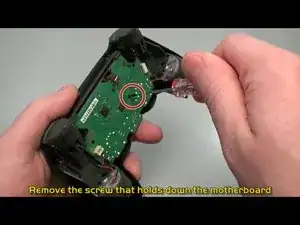

    • This Gen 4 controller features a mainboard with a PH00 screw towards the right side. Please remove the screw.

    • That’s all. Lift the Midframe right up on out of there. Always have the mainboard facing up. The Midframe May face down after the rumble motors are desoldered.

  8. MURQC3SkNp3OfVDA
    MURQC3SkNp3OfVDA
    ZQFTHA2lkyIbrPSp
    wxZLDNbfccXbCsRX

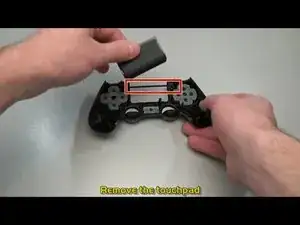

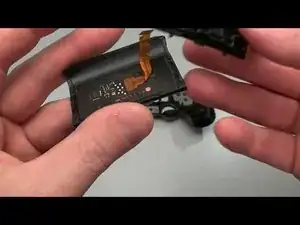

    • Lift the bottom of the touchpad towards you, as it is hinged near the top. Lift it away after undoing the hinge.

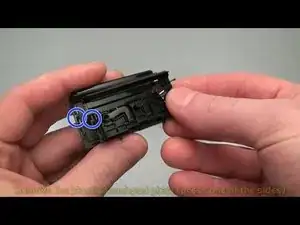

    • There are panels on either side of the touchpad. It isn’t glued, nor is it a friction fit. One side is disassembled and shown in blue. Use tweezers.

  9. VxuWrJc1LXRtCjhw
    VxuWrJc1LXRtCjhw
    oWNisn4PbTvSVkk2

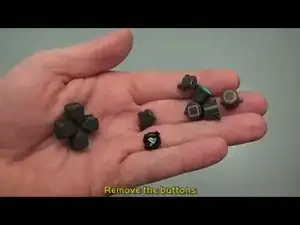

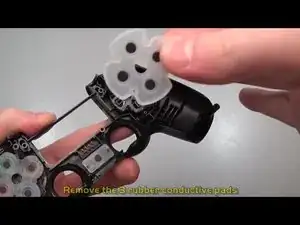

    • The pad membranes are friction fitted. Once they come off, the buttons can go everywhere, they’ll come out into your hand.

  10. TTsRpb4yDXT5PnLK
    TTsRpb4yDXT5PnLK
    bZKlmnkkSLLDYfsB

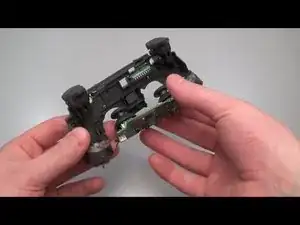

    • Back to the Midframe. Lift away the mainboard. Mind the motor wires. They are fragile. This step to isolate the board is needed so desoldering heat doesn’t ruin the plastic Midframe.

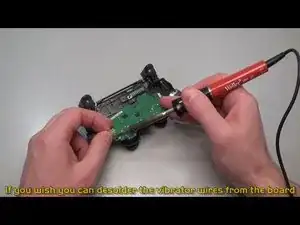

    • Desolder the red and black wires at the Mainboard, noting their respective locations.

  11. OJLMPEIrjnSScHeT

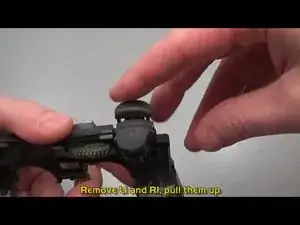

    • Pull the bumpers right off. Be careful, you’ll hear a click.

  12. WxVCZLJNu26dmyxy
    WxVCZLJNu26dmyxy
    WLHVV3PRG535pleg
    f6QAdTRPDCa6IgQt

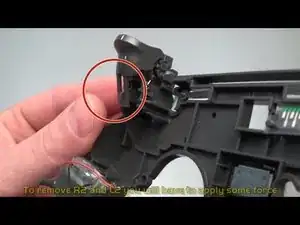

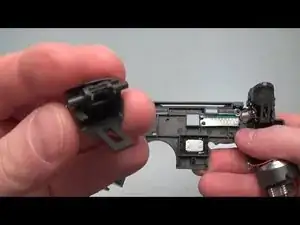

    • Here’s the panel work to undo.

    • it should come right off.

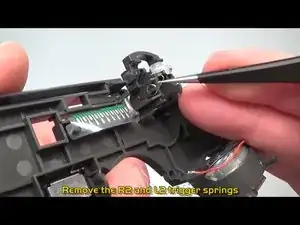

    • The spring should come out with the tweezers.

  13. D6maYVLZbYPt65uS

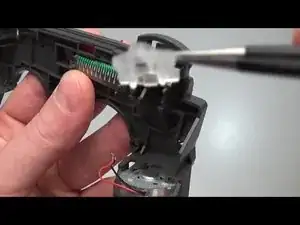

    • This pad should slide right out. Use the tweezers.

  14. GjR1Biw2aXuT16fl
    GjR1Biw2aXuT16fl
    iTLimCYdOLEWGO6d

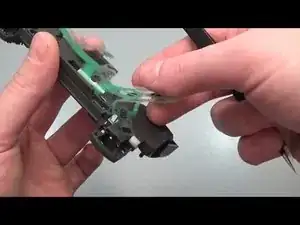

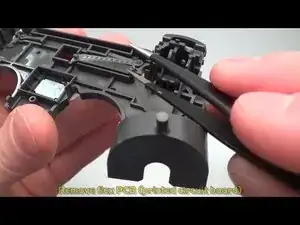

    • There’s a piece of Mylar with a circuit on it to detect the buttons. Use the tweezers as shown.

  15. K2GIfRIlXOC2pVsZ
    K2GIfRIlXOC2pVsZ
    4aHydFrBOAVbYGtJ
    xNL5iqBmIn15ocGW

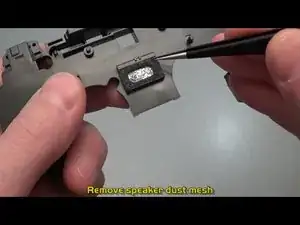

    • Use tweezers to remove speaker dust mesh. It is fixed on there with light adhesive.

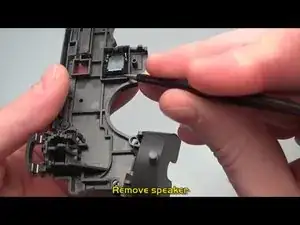

    • The speaker itself is also fixed with light adhesive. Flip the Midframe over to remove it with the tweezers.

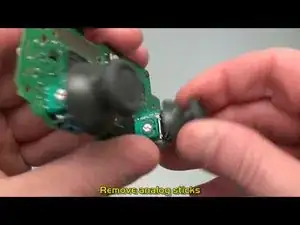

    • The thumb sticks pull straight off the rockers. Go ahead and do that.
