DualShock 4 Teardown

Geschrieben von: Joshua Wong
Veröffentlicht: 29/11/18
  • Kommentare: 9

DualShock 4 Teardown

Veröffentlicht: 29/11/18

Teardown

Einleitung

  1. XOiefTZk43SSaaAd
    XOiefTZk43SSaaAd
    3Gn642cqIuEEZTsO
    IXcJngIHoPSoCFQB

    • Begin by removing the screws in the back of the controller.

    you need to open up the 2 tabs near the USB port to removed the top cover after removing the 4 screws in the back.

    Clarence Kong -

    This is nowhere near enough information. Removing the four screws gets nothing off, and no idea what “2 tabs” the above comment is talking about. The controller would stay together completely with or without the screws…

    Manjushri -

    right away this guide give you nothing in terms of actual information on actually taking apart the duel shock 4

    Eden -

  2. WfxaTplaDM1JoYBt
    WfxaTplaDM1JoYBt
    imnbfUWJy1fI43c1

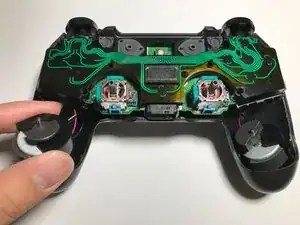

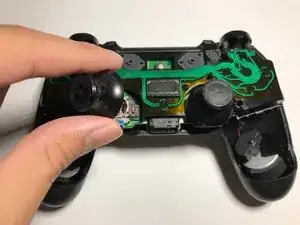

    • Remove the analog sticks and motors.

  3. v2UrMQFts3Mc56Ih

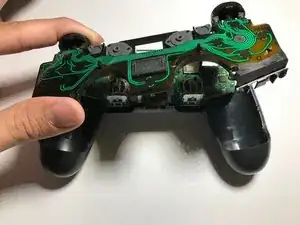

    • Remove the top layer PCB. The PCB must be popped out of place and then angled in such a way that the trigger buttons at the top of the controller slide out of their slots.

  4. dY5biHFDDupMlE4X

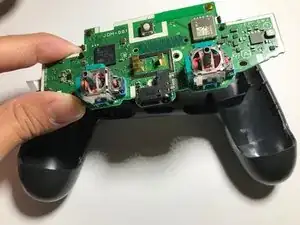

    • Remove the second layer PCB. This simply pops out of place.

  5. 5AGst6Ep1NQPMXSm

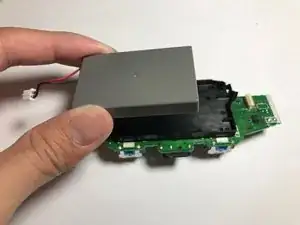

    • Flip over the second layer PCB. Remove the battery from its holder.

  6. HCRnfYWjsPkbVlFs
    HCRnfYWjsPkbVlFs
    TtwVSZ44qa1HX5Lm
    xo5aRFdQeEnCQjjF

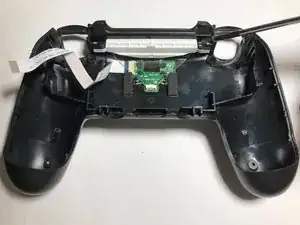

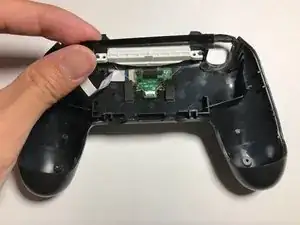

    • Unscrew the two screws holding the light assembly together. Once the screws are undone, the parts of the assembly can be pulled out.

  7. 6nVRNCariqup1eK6
    6nVRNCariqup1eK6
    V1mmbIP4mytTG5Hh

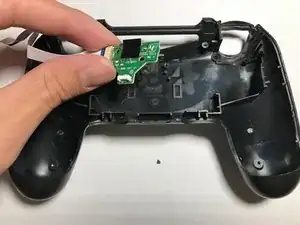

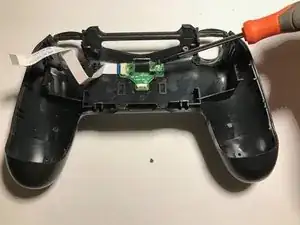

    • Unscrew the two screws holding down the USB module.
