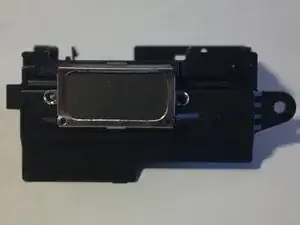

Here it is - the Epson Stylus Photo 820's printhead assembly.

The ink cartridges can easily be removed after opening up the cover. +10 for repairability as this is the only part that will need to be replaced.

The dual ribbon cable connector can be seen hiding in the back of the printhead.

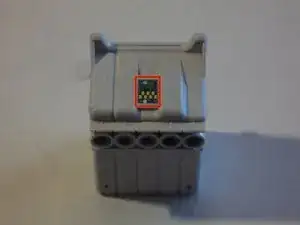

Each ink cartridge has a tiny circuit board with 5 contacts which can easily be removed with a metal spudger or similar tool.

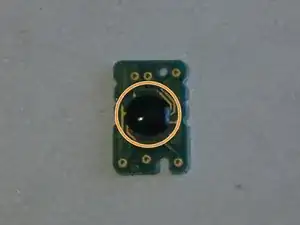

On the other side of the board is a resin blob hiding a chip.

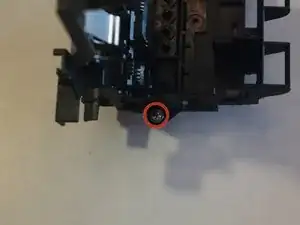

Only one screw holds the printhead assembly together.

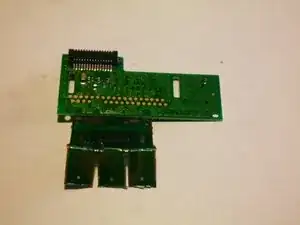

And... The circuit board comes out!

3 very dense ribbon cables ripped off whatever they were attached too when the logic board was removed.

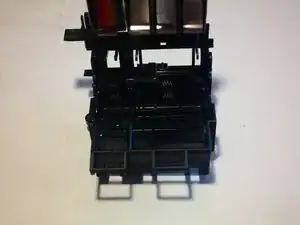

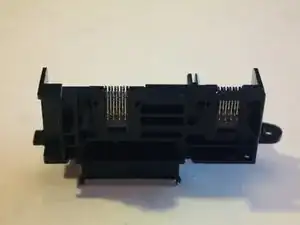

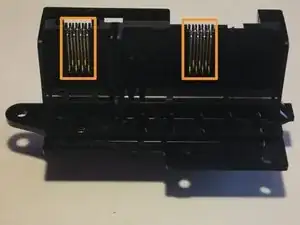

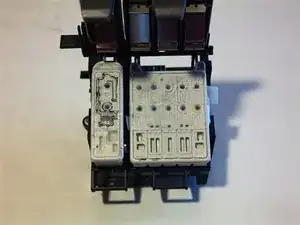

All that is left in the plastic block is the 10 spring contacts that connect the ink cartridge chips to the main board.

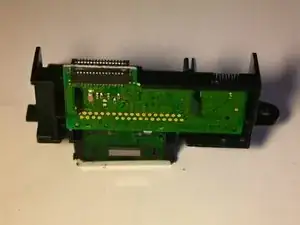

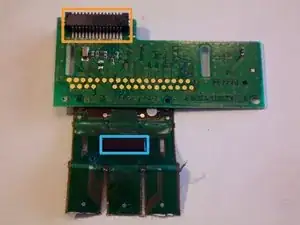

Let's take a look at the circuit board.

This flexible circuit connects the actual print head to the circuit board.

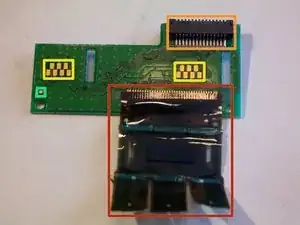

The dual ribbon cable connector

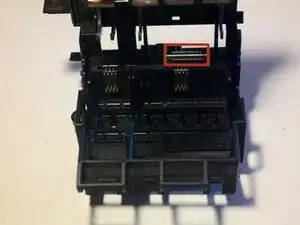

The contacts for the ink cartridge chips

This appears to be a test point of some kind.

This decoder/multiplexer chip on the flexible circuit appears to take 16 inputs and provides over 240 outputs for the print head.

Finally. Time to get inside the print head.

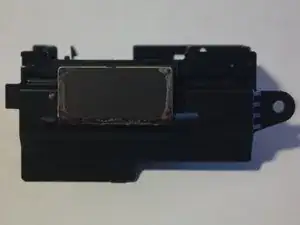

The print head is held in place by a metal cover that is held in place with blobs of melted plastic.

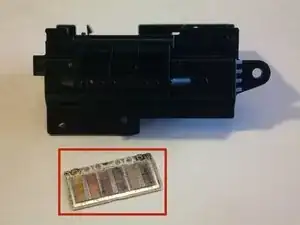

This colorful assembly is the actual print head.

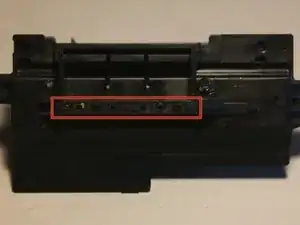

This row of 6 holes is the end of the tubes that transfer ink from the cartridges to the print head.

Here you can see the contacts for the cartridge chips.

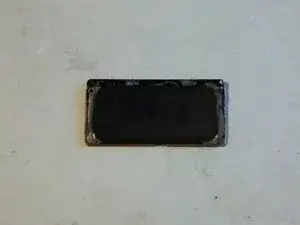

This is a close-up view of the most important part in any inkjet printer.

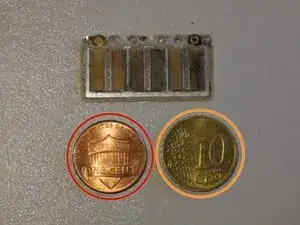

Penny for scale

10 Euro Cent coin for scale

For scale in the third dimension, the printhead is 0.3 mm (0.01 inches) thick.

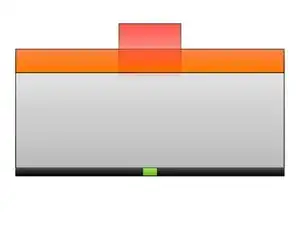

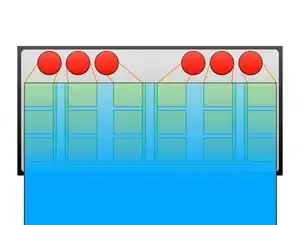

Here is a color-coded diagram of how the printhead is built. The only difference is that there 3 ink nozzles in a row instead of over 40.

Ink flows from the cartridge into the printhead through the red circles.

Ink flows into chambers underneath the piezo elements (marked by orange lines).

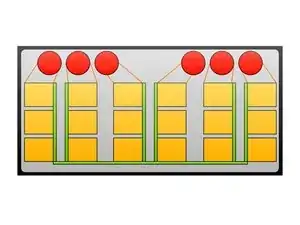

Individually addressable piezo elements for each nozzle cover the ink chambers.

The piezo elements are connected to a common ground by metal strips.

(Second image) The ribbon cable (shown as a blue overlay) connects the other terminal of all the piezo elements to the multiplexer.

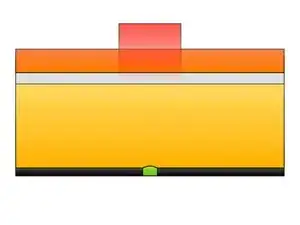

Here is another view. The gray area in the middle is the ink chamber.

The red rectangle (behind the orange) is the ink inlet.

The orange rectangle is the piezo element.

The green rectangle is the opening in the bottom that acts as the nozzle.

Let's answer your last question about the printhead now: How does it print?

The action starts in the second picture.

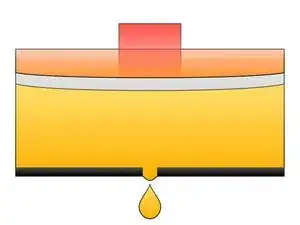

The ink inlet fills the chamber with ink (yellow).

The ink is prevented from exiting the nozzle by surface tension.

(Third image) When the printer needs to print, electrical current is applied to the piezo element which expands, creates pressure, and forces a single drop of ink out of the nozzle.

The (microscopic) drop of ink falls on the paper.

The contraction of the piezo element causes the remaining ink in the nozzle opening to be sucked back into the chamber.

Keep in mind that this printer has to control over 240 piezo elements which move over the paper many times in the time it takes to print a single page.

It is hard to give a bad repairability score to this device, because only one part of it will need to be replaced.

The ink cartridges are very easy to replace (as they should be).

The entire assembly is held together by one screw.

The actual print head is very delicate and is too small to be repaired, so if it breaks the entire printer will have to be replaced.

Update: I have now granted a repairability score to the Epson Stylus 820 Photo printer.
