Essential Home HC-409 Teardown

Geschrieben von: Garland Poon
Veröffentlicht: 03/03/16
  • Kommentare: 1

Essential Home HC-409 Teardown

Veröffentlicht: 03/03/16

Teardown

Einleitung

The guide will provide a detailed teardown guide from beginning to end.

  1. tEryovVNrJnYWQNm
    tEryovVNrJnYWQNm
    C3AlAUkvkjFUHhaW
    qtUealPoeOE3eBMl

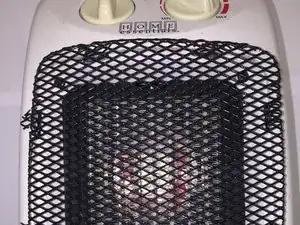

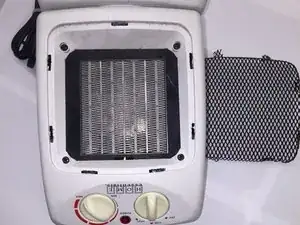

    • Remove the grill from corner to corner.

  2. dGCQQ2x5TbO2HApl
    dGCQQ2x5TbO2HApl
    6xOtAkIFZFvSWtDk

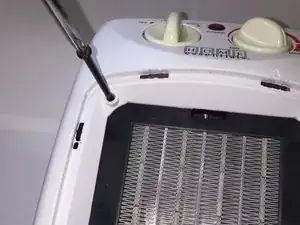

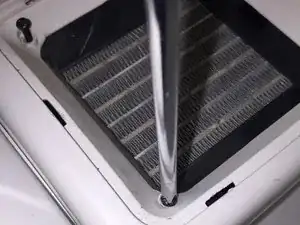

    • Carefully remove the screws and place them aside.

  3. UyiMebfPDMinchRs
    UyiMebfPDMinchRs
    OpVI4CcRfAKufAwh
    DbNitkgv3ACckdHQ

    • As seen in the pictures, set the screwdriver on the edge of the cover and pry it out.

  4. kJKBVVSDufao4j14
    kJKBVVSDufao4j14
    Fl1YPHwghLwCGLeC

    • Remove sticker in order to open the plastic casing of the heater.

  5. UFjXZt5EyXp5oNgC
    UFjXZt5EyXp5oNgC
    WZc6bycdjsQFGoNM

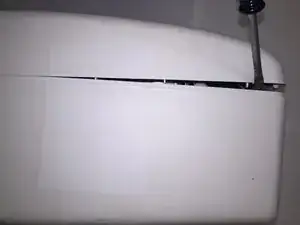

    • Slowly and carefully pry the plastic casing.

  6. uLFJLCA5F6FudZPS
    uLFJLCA5F6FudZPS
    TIFJ4LrJjx3o61ei

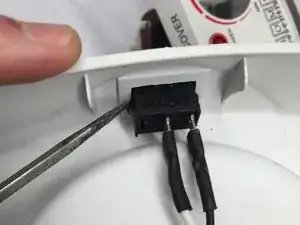

    • Apply pressure onto the sides of the switch while pushing it outwards.

  7. ymqmBRDANj2p3vXP
    ymqmBRDANj2p3vXP
    6qELAFUakCltkVJa
    45ZToL5Npc3N3UuC

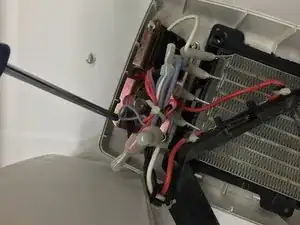

    • Unscrew the four screws located in the rear of the device. Remove the fan.
