Einleitung

  1. jJRGIDGM1vMUlJk1
    jJRGIDGM1vMUlJk1
    DCWV3MJvXsIAGqHH
    lipPqS4pkGorVWLb

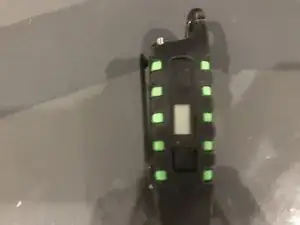

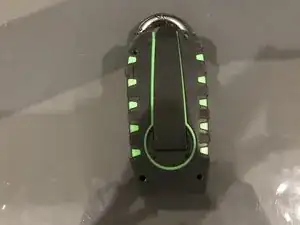

    • The front of the device has a solar panel and a speaker grill.

    • The only obvious screws are the battery cover and the back.

  2. M4cTVSItHxIAPmHn
    M4cTVSItHxIAPmHn
    TekGt65AP3VmYikx
    iX4DcSVk5aDZWWOg

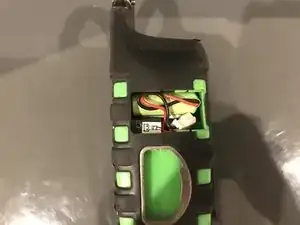

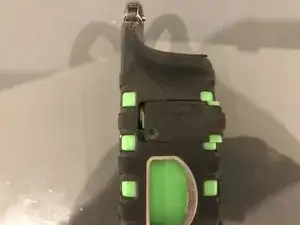

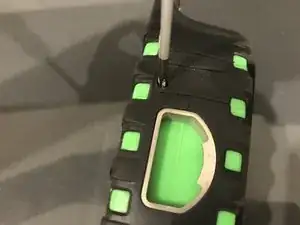

    • Removing the battery cover reveals an easily user-replaceable battery (hooray!)

    • It takes a single Phillips head screwdriver

  3. jUwNFXDX5qhCwPde
    jUwNFXDX5qhCwPde
    TtlSESGLA3XhOUgW
    ByicfMvaPy6TIEcU

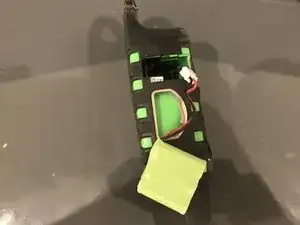

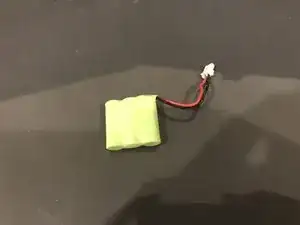

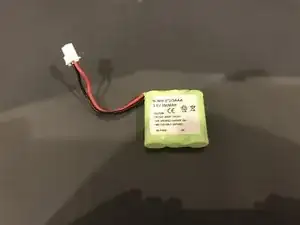

    • Removing the battery shows a standard form factor.

    • If you're looking for a replacement, I've got you.

  4. qQKqWcLSZHZFIsof

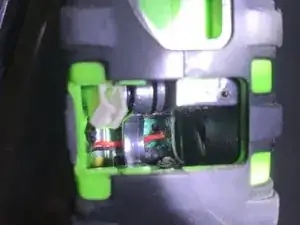

    • Peeking inside with a flashlight and camera, we can see some internals.

    • Let's get inside!

  5. CIEDbSeT3oOXiMnG
    CIEDbSeT3oOXiMnG
    2VHDiBrKx56xDCwU
    NrGJRCmIVSKk3Ol4

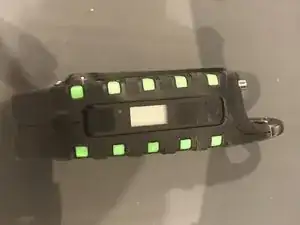

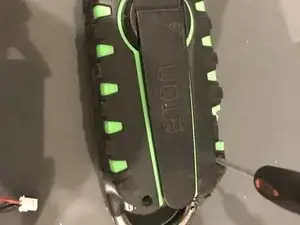

    • Removing the 4 screws and pulling apart the 2 halves worked

    • Let's look inside!

  6. KCvxKaqUwWq4PTJi
    KCvxKaqUwWq4PTJi
    6ZoVu5GfLlx6YYOx

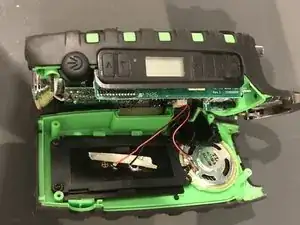

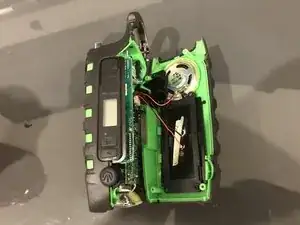

    • immediately, we can see the speaker and solar panel.

    • I spot user-removable plugs. Horray!

  7. PlsQnqdEJTVRUQAZ

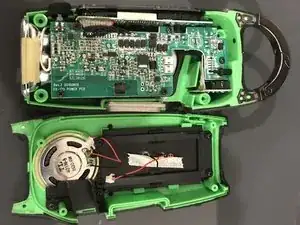

    • After pulling away the cables from the 2 plugs, we are free to keep tearing down!

  8. 5jGxSyyKhiYDghYv
    5jGxSyyKhiYDghYv
    Ysh5dJ5OWrBPCq65

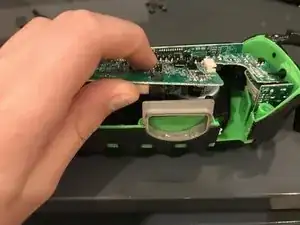

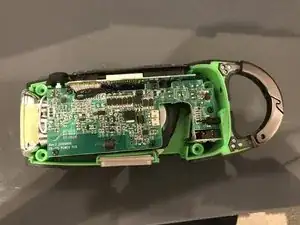

    • There are 5 Phillips head screws securing the power board in place. Removing them allows some give to peek inside.

  9. FE6Ku3Y1GSFOUKQR
    FE6Ku3Y1GSFOUKQR
    ZTmLcFuHgAeR6xAQ

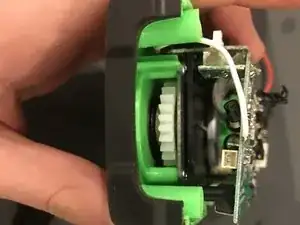

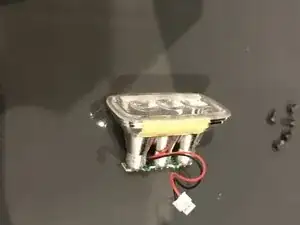

    • The flashlight module is also removable, with a single jack holding the cable in place.

    • Once again, a win for repairability.

  10. oxDLJA1F2YaB6Gps
    oxDLJA1F2YaB6Gps
    RSVcuEipHFOPMbEA
    hTGS6gYtLxtkKq4J

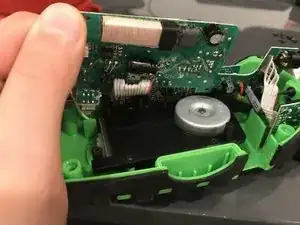

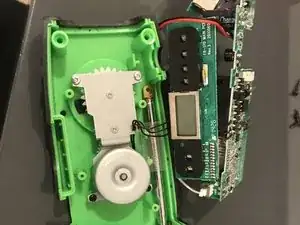

    • Pulling the power board away harder allows it to bend

    • here, we can see the underside, and how it REALLY works.

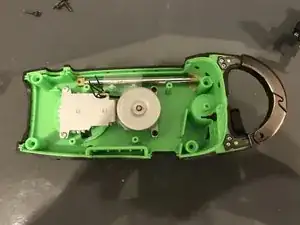

    • We can also see the hand crank generator on the bottom

    • to the right, is the USB and audio board. There is a ribbon cable connecting it, and it isn't user removable. :(

    • The power board and the main board are also user-inseparable :(

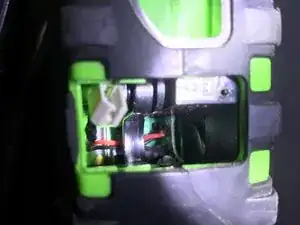

  11. FV5WRNIPOYHtGn3c
    FV5WRNIPOYHtGn3c
    1TgZoxnB4VNmhCKC
    K5ikXEM1eRu2CeoK

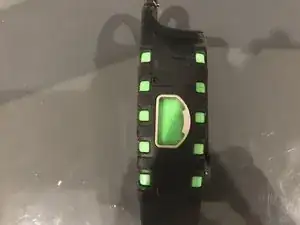

    • To wrap it up, we saw examples of both good and bad repairability, as all the circuit board are inseparable, but the battery and other components that may break more easily are connected by a standard port.

    • All the screws, no matter how big or small, were standard Phillips Head, and not some weird GameBit screw. (Looking at you, Nintendo!)

    • It's significantly better than most devices out there, but not perfect. It's great for most consumers, unless you want to replace a specific circuit board.
