Eufy Video Doorbell 2k (Battery-Powered) Teardown

Geschrieben von: Muzaffar
Veröffentlicht: 04/12/22
  • Kommentare: 0

Eufy Video Doorbell 2k (Battery-Powered) Teardown

Veröffentlicht: 04/12/22

Teardown

Einleitung

Eufy Video Doorbell 2K (Battery-Powered) a doorbell security camera that can be installed outdoors. Unfortunately for my unit, water got inside and fried a chip rendering the unit inoperable after 2 years of service. Since Eufy does not have a repair centre here in Malaysia, I decided to open it up and take a look inside.

note: Most of the images I took was is Portrait, thus images might be slightly weird or looks like it was rotated to the left.

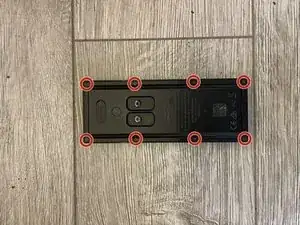

  1. HIKlOHluslMt63YS

    • Using Phillips 000 screw driver remove 8 screws at the back.

  2. UtBZSFJFBXeJEJXB

    • Using a metal or plastic prying tool, insert it in between the seems. Then carefully lift the back unit out. Once one side is open simply lift it out from the front cover.

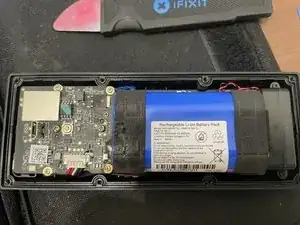

  3. qwX4EBaLNnniIvHC
    qwX4EBaLNnniIvHC

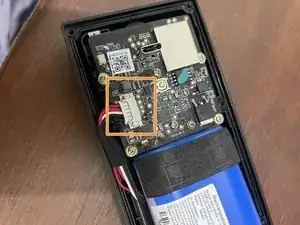

    f5bmQjOWUxLt6YRv
    NJmijuBmocSI5uan

    • Battery is connected to the main board. Using a tweezer remove the battery connector.

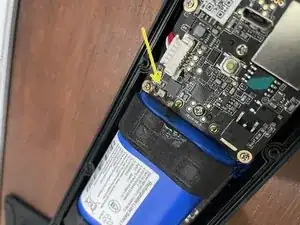

  4. wPjZfvfw6TDmYbBU

    • Water manage to get into my unit and fried this chip. Suggest you use a rain cover if this doorbell is expose to weather outdoors. There are a lot of 3D printed rain covers for this doorbell.

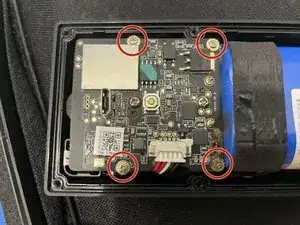

  5. uyewsqR4aLLTOjGD
    uyewsqR4aLLTOjGD

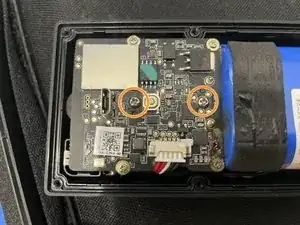

    uBVONtwxUuYuEEBk

    • Remove 4 screws with a Phillips 000.

    • Remove 2 screws with a Phillips 0.

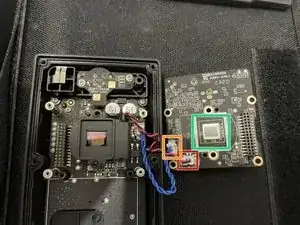

  6. yg5PRwQMCi5jgMUh

    • Disconnect the connector.

    • Disconnect the connector.

    • CCD of the camera

    • Do not touch the CCD. If finger prints got stuck it will be difficult to clean.

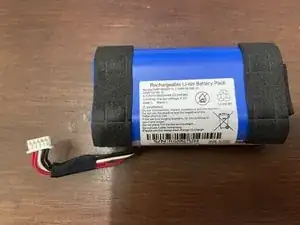

  7. bQwTdMOtI3ffeWlI
    bQwTdMOtI3ffeWlI
    FvIfSjtLi3rsHSRU

    • Battery details and specification.

    • You can use a multimeter to check the voltage of the battery. Mine was still good at 3.9V. Unfortunately the chip got fried.
