Fatshark FPV Headset 1000mah Battery Teardown

Geschrieben von: David Hoyt
Veröffentlicht: 19/01/16
  • Kommentare: 0

Fatshark FPV Headset 1000mah Battery Teardown

Veröffentlicht: 19/01/16

Teardown

Einleitung

  1. r3ZMBadM1pPRk3J6
    r3ZMBadM1pPRk3J6
    BEGrYwk6bFtB6d3x
    2hqCAta24tx2O4YK

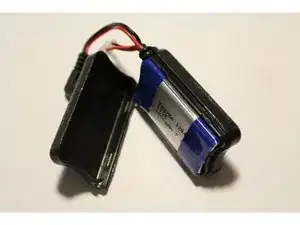

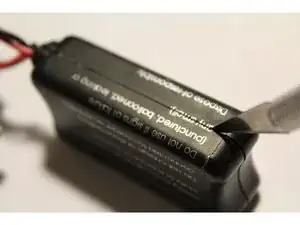

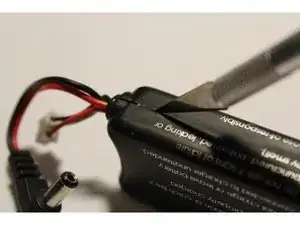

    • Cut the adhesive label down the seam of the battery case.

    • Do not cut down into the case as puncturing the battery will cause a fire.

    • Separate the two plastic case shells to expose the battery inside.

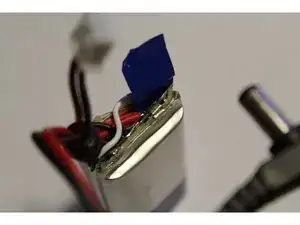

  2. j5PR6ylE2hPKPOFj
    j5PR6ylE2hPKPOFj
    xCgqSNSYooZTYdUH
    JDYuajIlNQugRNcO

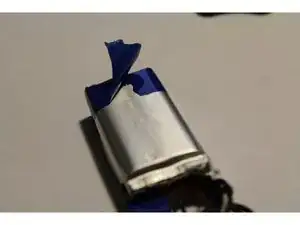

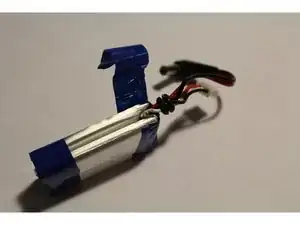

    • Remove the tape holding the battery cells together.

    • Do not stress the tabs on the battery cells or short any of the metallic contacts on the internal circuit board.

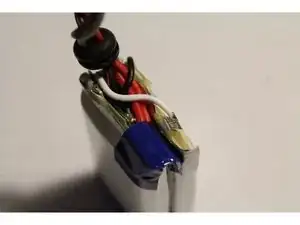

  3. ks4O2nOrpARamRC5
    ks4O2nOrpARamRC5
    mEgox5ZODLuvDe3n

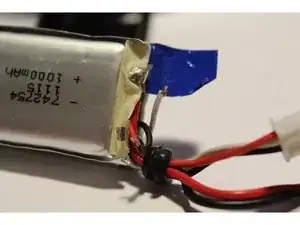

    • Desolder the two battery tabs with black and white wires connected to them.

    • Do not short the battery cells or the metallic contacts on the internal PCB.

  4. w3gRUXybyi2KAdof
    w3gRUXybyi2KAdof
    ExnDKCaH3ELvCgv2
    3jeyxEYYbLHIKcRY

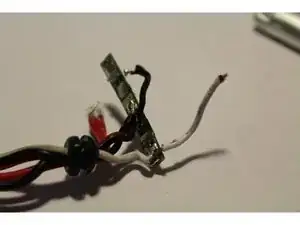

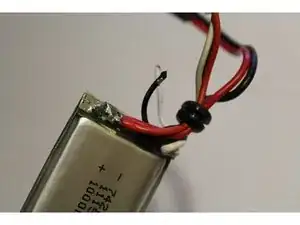

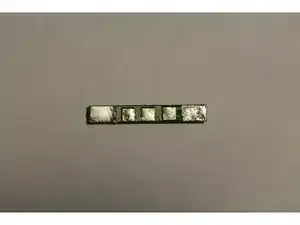

    • First, desolder the battery tabs from the PCB.

    • Second, desolder the main barrel connector wires and balance plug wires from the internal PCB.

  5. ElSQU16ZM2NcVXrc
    ElSQU16ZM2NcVXrc
    td4oUE2RZBJMn3wZ
    JORQCegmVPeSrnSP

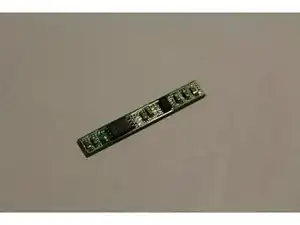

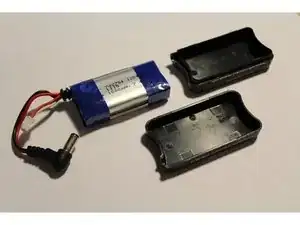

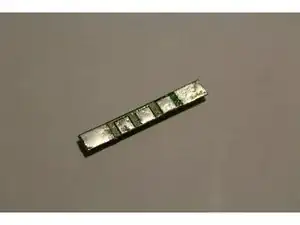

    • Extra photos of components.
