In this teardown we will reveal the internals of this wonderful device, and see what is driving the realistic graphics, LEDs and 120+ sound effects
Werkzeuge
-
-

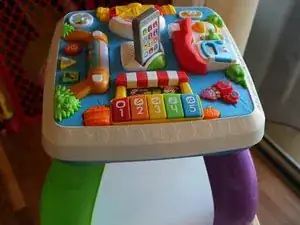

The table has 4 different play regions: Puppy's home, the market, the zoo and the farm
-
It also has the phone. Designed to call Puppy and friends.
-
-
-

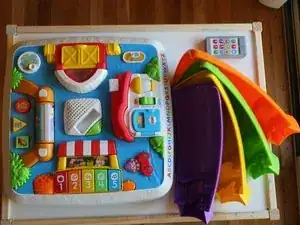

All 4 legs removed
-

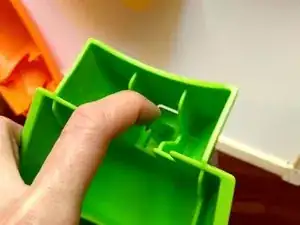

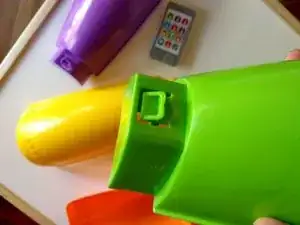

Each leg has a giant clip, that holds it in place. There is a neat tab to detach it from the table (see pictures)
-
-
-
"Laugh and Learn" is powered by 3 AA batteries
-
Depending on usage and type of the battery they deliver between 3 to 24 months of fun
-

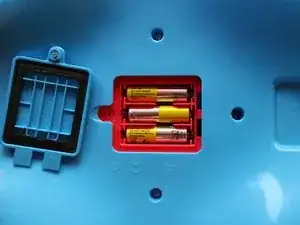

The battery compartment has a gasket to protect the batteries from water (or other liquids) - very thoughtful of a typical user
-
-
-

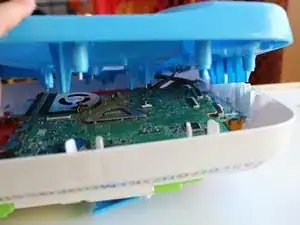

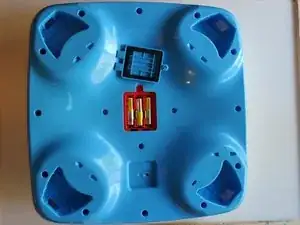

After unscrewing 16 screws we can finally lift the bottom side
-

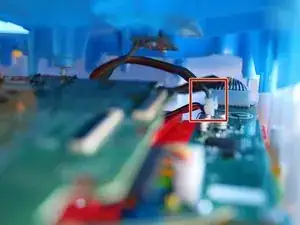

The on/off switch wire connector
-
-
-
We love modular design!
-

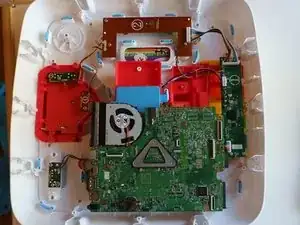

The internal side of the main board features:
-
60mm fan assembly with a single heat pipe and a tiny radiator
-
Authenticity label
-
Mini PCIe slot for wireless communication
-
DDR3 RAM slot, to buffer the audio effects
-

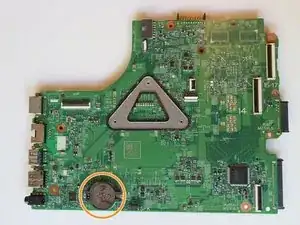

On the front side there is a tiny battery, that is probably used to back-up language settings
-
-
-
After removing the heatsink-and-fan assembly, the CPU is revealed
-

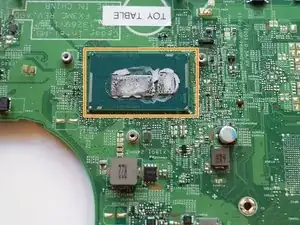

Intel i3-4005U CPU, featuring 2 cores (4 threads) running at 1.7 GHz and integrated HD4400 graphics, delivering the realistic experience of moving and talking animals and providing fast response for every button pressed on the device
-
The CPU is soldered down to the board, so there are no possible upgrades here
-

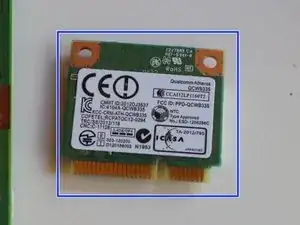

The wireless is powered by Qualcomm Atheros QCWB335 2.4GHz SB 1x1 Wi-Fi + BT 4.0
-
-
-

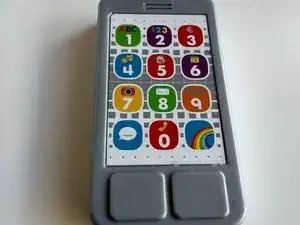

This is a standard model used for Laugh and Learn. For privacy resons there are no cameras on this phone. Major specs:
-
Android 6 (Marshmallow)
-
3.5" e-paper display. Our team was surprised by the quality - it really looks like a paper sticker!
-
2 buttons: home and back
-
Snapdragon 600 series chipset with 3G modem
-
-
-
The device is firmly built and easy to disassemble/repair. The only drawback is soldered down CPU
-
If we were asked about repairability score - the answer is 17
-
Thanks for reading this teardown!
-
