We got our hands on the fun Flip MinoHD digital video recorder and decided to take a peek inside. We were curious to see what kind of electronics were packed into this simplistic half-aluminum, half-plastic device.

  1. eCmXNuHrYvbRRx4K
    eCmXNuHrYvbRRx4K
    qhDfKSXvF4dpx4Ke
    KUixx2sNwhlBUKWv

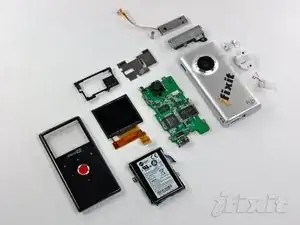

    • Today's guest has been long overdue for a teardown. So with no further interruptions, we give you the Flip MinoHD in all its glory.

    • The Flip MinoHD comes packaged in an elegant box that leaves much to the imagination.

    • Dare we open the box? Dare we do.

    • Contents of the box:

    • Flip MinoHD

    • Quickstart Guide

    • Soft Protective Case

    • Wrist Strap

  2. wIprgWgFnb4vTrOa
    wIprgWgFnb4vTrOa
    dlPnNtxeVFwIxVrE
    IXtcqYUYwRULYqVO

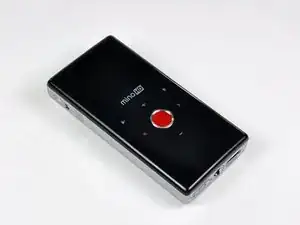

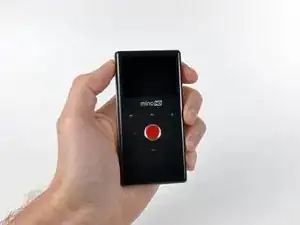

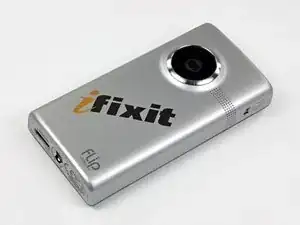

    • What's better than a Flip MinoHD? A custom-labeled Flip MinoHD!

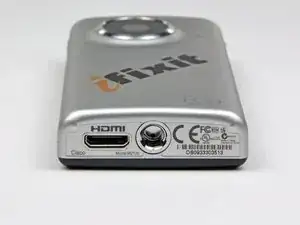

    • Eight unique touch-sensitive capacitive buttons (power, play, delete, record and four-way navigation) allow for ease of use.

    • An mini-HDMI output connector makes it easy to watch video on your HDTV.

    • There's also a tripod mount that fits any standard tripod.

  3. cpfRJPYRuOW2QsQb
    cpfRJPYRuOW2QsQb
    fJVQOli3G3vdL3Zv
    UknJtvKguW3ynMOR

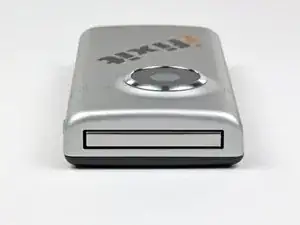

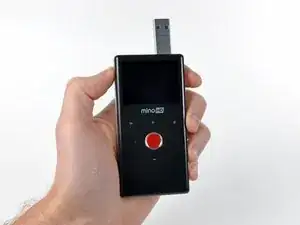

    • Sliding the small tab along the left side of the MinoHD releases the flip-out USB connector for easy docking/charging.

    • When done interfacing, the USB connector tucks in flush with the top edge of the device.

  4. eRH4Q4Xc4UOOynmp
    eRH4Q4Xc4UOOynmp
    ADMMVL11KOlRBcCf

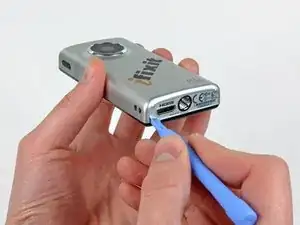

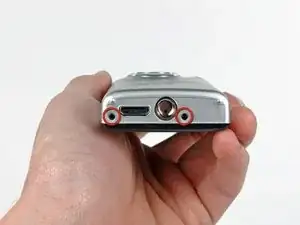

    • Use the sharp edge of a plastic opening tool to peel the two labels off the bottom of the MinoHD to reveal two hidden screws.

    • Remove the two Phillips screws securing the front panel to the outer case.

  5. UEQdDP2LfFhKT2AO
    UEQdDP2LfFhKT2AO
    c1BY1SnELjbtAMZo
    ta1ESOBpunWIcbuC

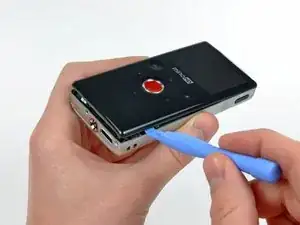

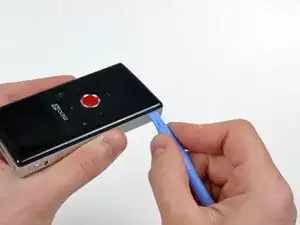

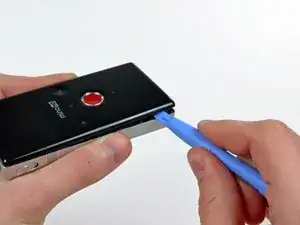

    • Begin the disassembly by inserting a plastic opening tool (with the edge pointed toward the aluminum outer case) between the front and outer cases near the bottom of either edge of the MinoHD.

    • Do not try to pry between the front and outer cases along the top edge of the MinoHD.

    • Continue running the plastic opening tool in the seam between the front and outer cases until the left, right, and bottom edges are free.

  6. VilFlUixxWtSsrvX
    VilFlUixxWtSsrvX
    jrjXmkX3tYHUVHuU
    pld4EJUfU4CPZlJb

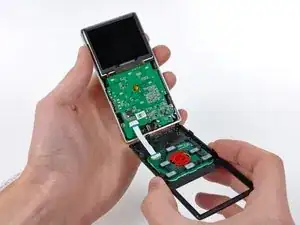

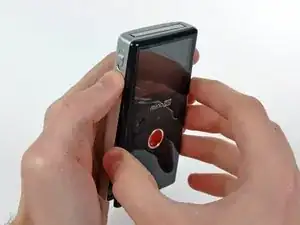

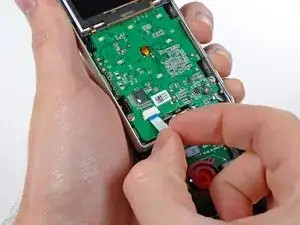

    • Push the front panel toward the top edge of the MinoHD to release it from the mounting tabs along its top inner edge.

    • Don't try to remove the front panel just yet! It is still attached to the logic board by a small ribbon cable.

    • Carefully rotate the front panel away from the rest of the MinoHD.

    • Pull the control panel ribbon cable away from its socket on the logic board.

    ahhh i need help!

    on the actual mino when i opened it the socket snaped off.the socket on the casing is fine but not the one on the board. what do i do??? please help

    Josh R -

  7. WITFMqXHGJDZUjsj
    WITFMqXHGJDZUjsj
    yISRRROVGwSfiycP

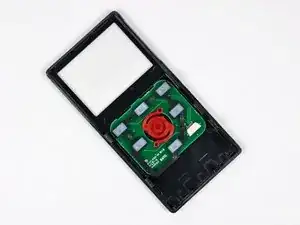

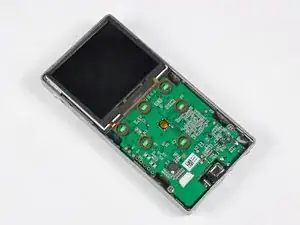

    • There's not too much interesting going on inside the front panel.

    • Capacitive sensors under each of the control symbols (play, back, etc.) provide the logic board with control data, while small LEDs mounted to the logic board (shown in red) under each "button" project light through the front panel to provide their illumination.

  8. p1yotOxNm1IdPSDi
    p1yotOxNm1IdPSDi
    jTWhmA1Ew1HIumAF

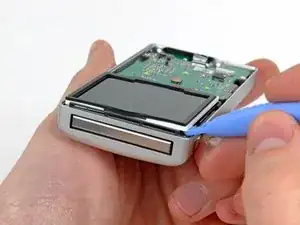

    • Use a plastic opening tool to carefully lift the top edge of the display out of its bracket.

    • It may be necessary to use a metal spudger to release a small piece of film stuck between the LCD and the display bracket.

    A guitar pick works great, if you do not own a plastic opening tool.

    Justin -

  9. wPTTKaxwCxvvUPyW
    wPTTKaxwCxvvUPyW
    FsxqHAJq5KwjxOrh
    bhKaCPuqwKjbpEZg

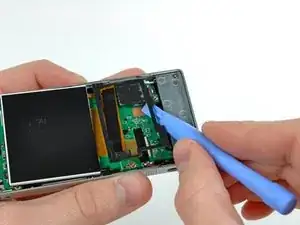

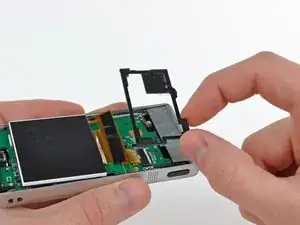

    • To access the display data cable, use a plastic opening tool to pry the metal and plastic display brackets off the logic board.

  10. 6DhaLNhtJMKxBegD
    6DhaLNhtJMKxBegD
    NFsMROXZMopj3CgH

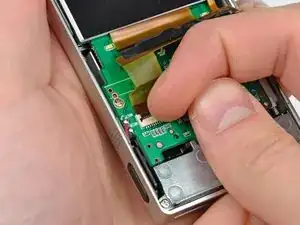

    • Carefully use your fingernail to flip up the retaining flap on the display data cable ZIF socket.

    • Pull the display data cable out of its socket and remove the display.

    • Interesting note: On-board video playback is provided by a 2" 960x240 transflective TFT LCD display.

  11. 1r2TEnqrBNUXeFSg
    1r2TEnqrBNUXeFSg
    MTHOT5GvNWVqZXYf
    qc5QmcJf3OrGBKdG
    • Remove the four silver Phillips screws attaching the logic board to the outer case.

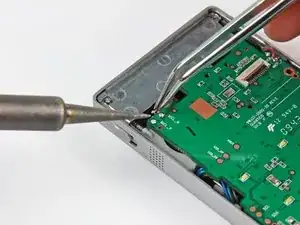

    • To remove the logic board, you must first de-solder the leads of both microphones from the logic board. When soldering on a circuit board, be sure not to heat up the connection excessively.

    • Use a pair of tweezers to gently pull each lead as you heat up the joint with the tip of a soldering iron.

    • Repeat this process to remove all four microphone leads. Their locations are boxed in orange on the first picture.

  12. 2kJhaL3fxTdflhJg
    2kJhaL3fxTdflhJg
    oXLPO6GrKKDKCIYJ
    GqfgtAllPIMYCf2b

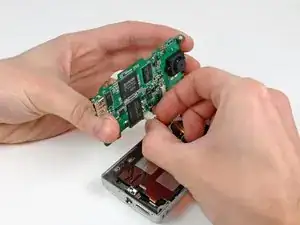

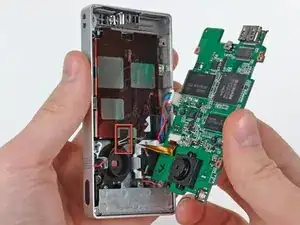

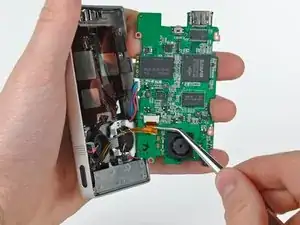

    • Carefully maneuver the logic board out of the outer case, minding the cables still connecting the two components.

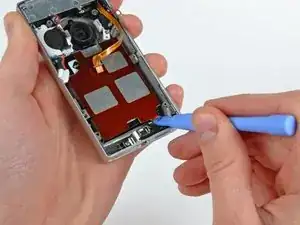

    • To gain more clearance, remove the small strip of black tape securing the USB ribbon cable to the battery bracket.

    • Use a pair of tweezers to pull the USB ribbon cable connector away from its socket.

    • Pull the battery connector out of its socket on the logic board.

  13. UQRvsUtnyOtxhV4l
    UQRvsUtnyOtxhV4l
    AkYu2RDOxAHYoKfQ
    pbrNlvDcaU4YNm26
    • Remove the two small silver Phillips screws securing the battery to the outer case.

    • Use a plastic opening tool to pry the battery up off the outer case.

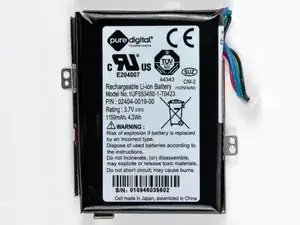

    • The MinoHD sips two hours worth of power from the internal 3.7V, 1150 mAh Li-ion battery weighing in at 30 grams (including bracket).

    • Coincidentally, that's the same battery capacity as the iPhone 3G.

  14. ABVtPT1upIN5JKYi
    ABVtPT1upIN5JKYi
    SrjoJbirwkvjEQL3
    TXZ4crpfuoYfZKdG

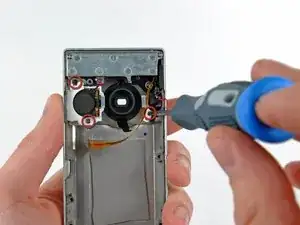

    • Remove the three Phillips screws securing both microphones to the outer case.

    • The microphone assembly on the left also houses a small speaker for audio during video playback. It connects to the board via two spring-loaded pressure contacts.

    • Lift both microphones off the inner surface of the outer case.

  15. auE1hKIO4GvXK1Fc
    auE1hKIO4GvXK1Fc
    16MWfTERTcErjTGR
    XbQbNHGOXsxY4J5q

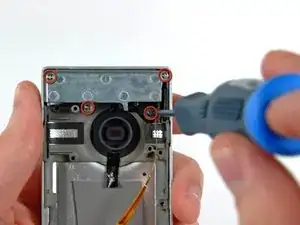

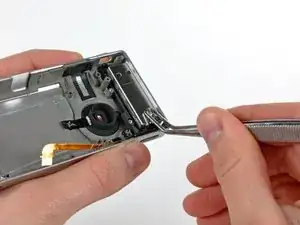

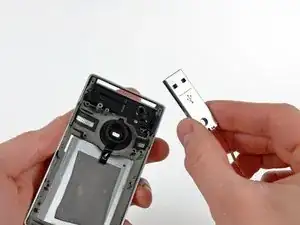

    • Remove the four Phillips screws securing the aluminum USB bracket to the outer case.

    • Use a pair of tweezers to pull the flip-up USB axle away from the outer case.

    • Once the axle clears the outer case, the flip-up USB connector may be ejected at high speed. Wear safety glasses.

  16. DKqdvmrkKJ2hjyYI
    DKqdvmrkKJ2hjyYI
    OVJ46AgXBimv5sZT
    HPUCR4XOVkIGBymx

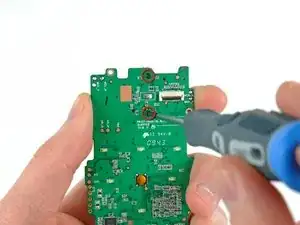

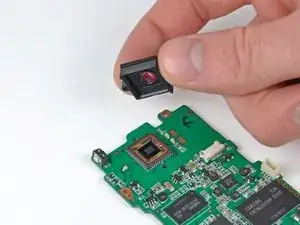

    • Remove the two Phillips screws securing the camera lens to the logic board.

    • Lift the camera lens off the board to reveal the CMOS sensor.

    • The high definition CMOS sensor has .0000022 meter wide pixels to capture clear 720p video.

  17. J2QVbLcCdkBKsuFi

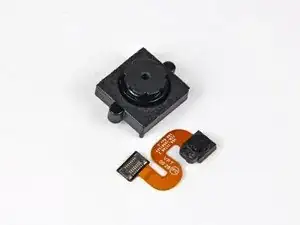

    • Side-by-side comparison shot:

    • Flip MinoHD camera lens.

    • iPod nano 5th Generation camera assembly.

    • The MinoHD has a fixed focus lens that ranges from 0.8 m to infinity.

  18. RI2gQqgQ5MqJQOm1
    RI2gQqgQ5MqJQOm1
    tr5iMb5ZFe5gftEO

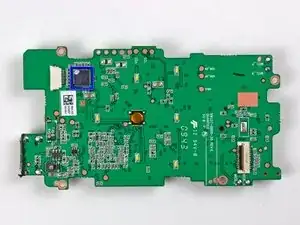

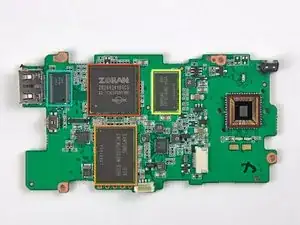

    • The big players on the logic board include:

    • A Zoran COACH (camera on a chip) 12 processor featuring real-time lens distortion compensation and noise reduction.

    • Samsung's 934 KMCMG0000M-B998 8 GB NAND flash memory for video storage.

    • One Samsung K4T51163QG 512 Mb DDR2 SDRAM chip.

    • Texas Instruments' TPD12S521 to protect the board from electrostatic discharge through the HDMI port.

    • Cypress' CY821434-24LXTI PSoC presumably for encoding signals received from the capacitive touch controls.

  19. EiCcdnowAM5N5wOr

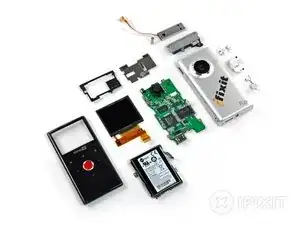

    • It's time we bid farewell to the MinoHD. We hope you enjoyed our precious time together. 'Till next time...
