Fujifilm X30 EVF Replacement/Teardown

Follow disassembly instructions from disassembly guide through step 17

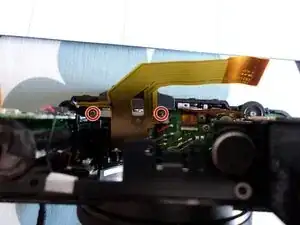

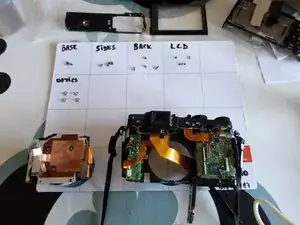

unscrew 2 philips screws.

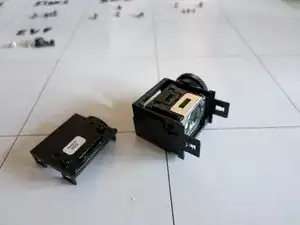

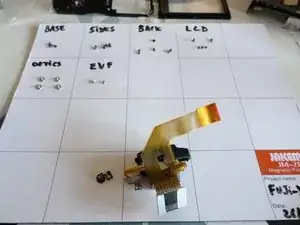

Slide the EVF to remove it. Becareful "play" button will come out too.

Adhesive sealing tape can be just worked out with tweezers to unstick it without removing it.

disassembly plastic cover

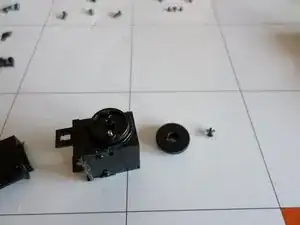

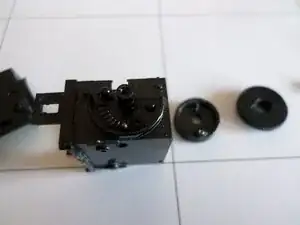

unscrew plastic wheel.

Becareful not to loose the little metal ball

Working on a magnetic mat can be handful

when re-assembling:

put the first plastic wheel on place

Drop the ball in the hole, and put the spring over it

Then screw the second plastic wheel over it

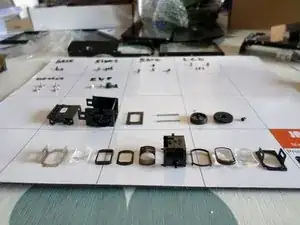

To remove lens block, you have to push the 2 metal rods from one side to the other. The rods have one end thinner than the other

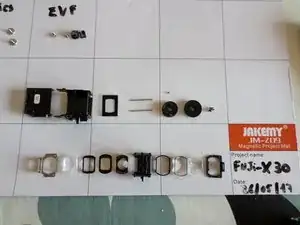

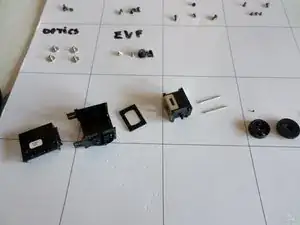

Now you can remove every lens in order to clean them from dust or humidity

When re-assembling, there's only one way to get them back in, so keep track of lenses order and direction when removing each one of them. Or wou'll have to try many times to comlete the puzzle.
