Nowadays there's no shortage of fitness trackers on the market to choose from. After looking closely at several of them, the sleek, minimalist design, 'hidden' interactive OLED screen, and sealed waterproof construction of Garmin's Vivosmart stood out.

Since there seems to be relatively little information available on the construction of this device, I did my own tear-down and decided to share it with you here.

  1. rbjCbAvNZNmcwR4x
    rbjCbAvNZNmcwR4x
    2tdBIVVcPVAWdJ2E
    HD6XmrwE6PLWtcsk

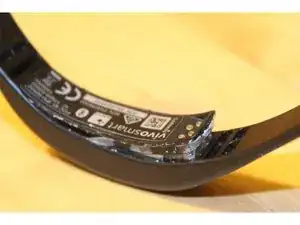

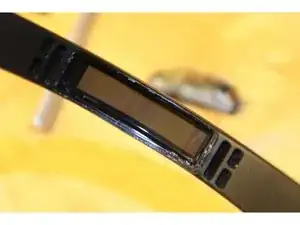

    • I was able to get at the electronics by bending the strap and prying the hard plastic enclosure out with a sharp utility razor.

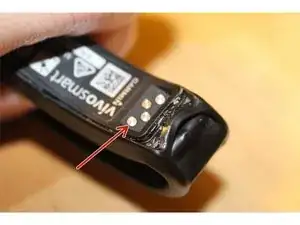

    • Note the 4 metal pads where the USB interface connects - we'll come back to those.

    • The Vivosmart is waterproof rated up to 5 ATM so accessing the electronics is not easy. Keep prying and picking away and it will come out eventually.

    • The electronics will eventually come out in one enclosed package and you'll be left with a flexible strap with a translucent insert.

    • Note the feel of the strap - Garmin possibly used a soft TPS rather than the stickier feeling silicone rubber commonly used in other wearable devices.

  2. XRVSUhDKgMNwuC1S
    XRVSUhDKgMNwuC1S
    D3CjfDA4vFU3xbXO
    JlODGP32JaebmZKR

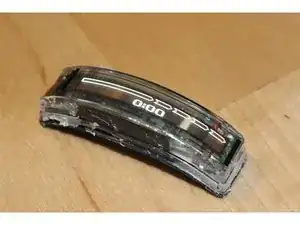

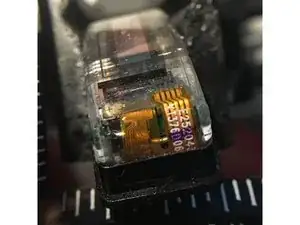

    • Here's the electronics enclosure, with silicone sealant all around the edges.

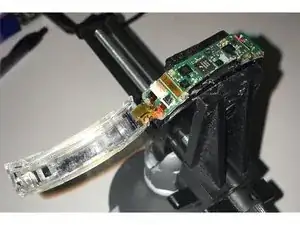

    • Looking at the side - the flex connectors go up from the PCB to the display. One for the OLED array and one for... stay tuned.

    • Clear away a whole bunch more of the sealant with your razor blade and the clear plastic cover can be pried off to reveal the PCB.

  3. GTH3DIpAFbMNW2vI
    GTH3DIpAFbMNW2vI
    aTqOLjBLWsLogVoP
    H3FbNoIKQLijYYJD
    • Now to take a look at that display...

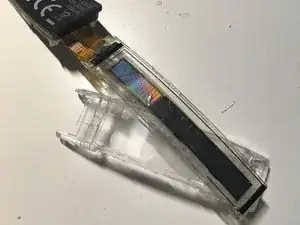

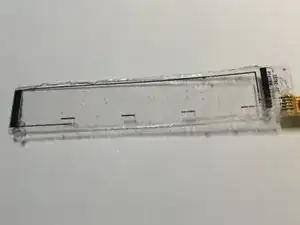

    • The flexible display strip can be peeled away from the clear rigid plastic.

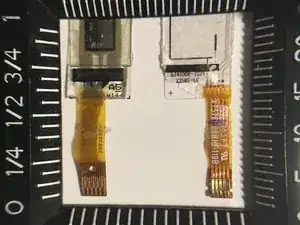

    • A closer look at the display strip reveals that it can be further split into two strips. One is a 128 x 16 OLED display.

    • The other is a capacitive touch sensor.

    • Note in pic 3 that there are 4 sensing pads on the capacitive touch sensor - this allows you to select menu items and swipe

  4. jgIA5ocM2LeIdFwr
    jgIA5ocM2LeIdFwr
    T6j4l4tI5CMZAW3K
    A1pL2vcGgXihkGFS
    • To remove the electronics from the hard plastic base we need to dig out a lot more sealant.

    • I first pried up the end of the PCB near the USB interface.

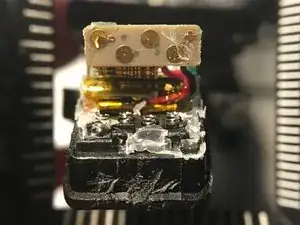

    • Notice the spring contacts coming from the 4 USB conductor pads - these come in contact with pads on the PCB.

    • Finally (pic 2) the electrical assembly is free! Three rigid boards connected by flex.

    • Check out the antenna built into the flex circuitry - looks like a PIFA.

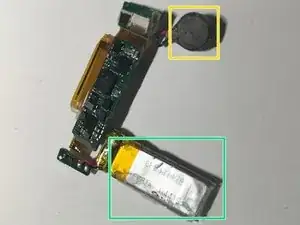

    • You can keep prying and release the

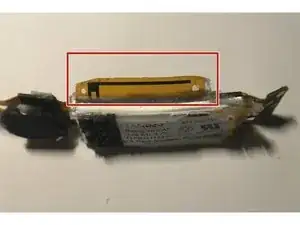

    • 70mAh Li-ion battery

    • and buzzer.

  5. OfFdcDPhePq2j2iy
    OfFdcDPhePq2j2iy
    opPu35nE6wO3pTaf
    RPY6icnDaqLdPQxD

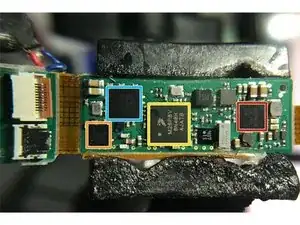

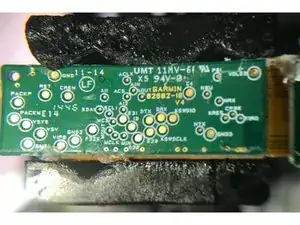

    • Now let's see what kinds of ICs are being used:

    • Nordic nRF51422 low power RF SoC. Used for Bluetooth LE.

    • Cypress CY8C20767capacitive touch controller.

    • Maxim 14676B wearable charge management IC.

    • Assumed to be an ARM Cortex-M microcontroller. Freescale, the manufacturer, is no longer in business, as it was purchased by NXP recently - this makes it hard to look up the marking.

    • There are all kinds of test points visible on the back. Garmin must do a pretty thorough QA.

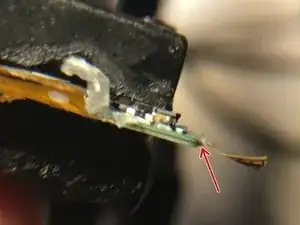

    • Looking side-on, you can see that the flex circuitry is sandwiched between two sets of rigid PCB.

    I'm extremly confident the mcu is one of those http://www.nxp.com/products/microcontrol... .

    bot47 -

    The mcu is Freescale MKL26Z256VMP4 labeled as M26P8V.

    tam -

  6. BVWIGvwWhRxFdQ3N
    BVWIGvwWhRxFdQ3N
    xxnUQCnyr4nZpSMy
    4ZXydUAqO2TSqquZ
    • While we're at it, let's take a quick look at some of the mechanical parts.

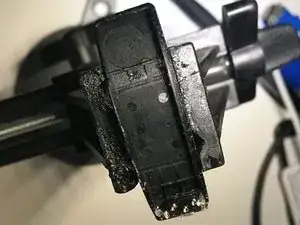

    • First, the rigid (probably ABS) injection molded base plate for the electronics.

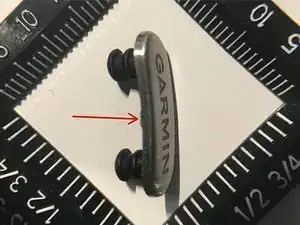

    • The plastic strap lock has a brushed aluminum plate crimped to it with the Garmin logo embossed. Nice touch!

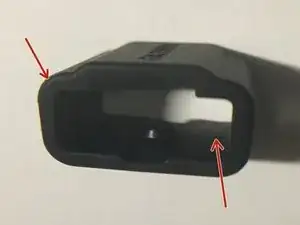

    • A close look at the strap holder reveals part lines on the inside and outside - probably a multi pull mold. (really hard to see here - sorry).

    • Now that your Vivosmart is all torn down... it's probably not going back together again easily. Hopefully this guide saved you from pulling yours apart.
