Some months after its initial release and lukewarm reception, the Pixel C has found its way back into the news, with a hefty discount to developers who want to try out the new Android N operating system. Sounds like it's teardown time.

For the freshest produce, find us on Facebook, Instagram, or Twitter for the latest teardown news.

  1. 2vLAABPFEPEhLGjA
    2vLAABPFEPEhLGjA
    LLRGmqaMfySXto4f

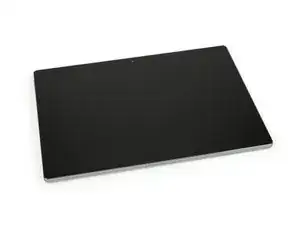

    • What makes a Pixel C? Let's see!

    • 10.2" LTPS LCD with a resolution of 2560 x 1800 (308 ppi)

    • Nvidia Tegra X1 64-bit quad-core processor paired with a 256-core Maxwell GPU

    • 3 GB LPDDR4 memory

    • 32 or 64 GB storage options

    • USB Type-C

    • 8 MP rear camera and 2 MP front camera

    • Android 6.0 Marshmallow

  2. GkIrTTpwElYxp52V
    GkIrTTpwElYxp52V
    3WoHaIs1GYtMN2sb
    6lvVSjrbxFryDIBu

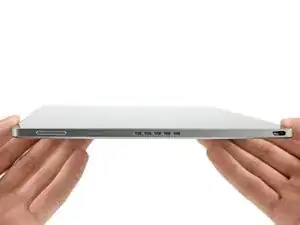

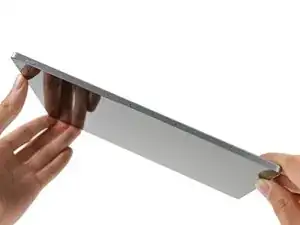

    • The Pixel C features a slick unibody aluminum chassis, with stereo speakers, USB C, and the usual power and volume rockers.

    • Along the top are holes for the "quad noise-cancelling microphones." Interesting feature for a device that doesn't yet support always-on "OK Google."

    • (Apparently this feature is "coming soon.")

    • We've seen dual microphones in devices for a few years now, a feature that cancels out ambient noise by comparing signals from two different locations. Four is a bigger number than two, so it probably does it better.

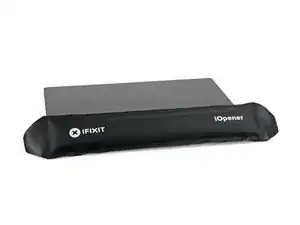

    • But enough of the outside—let's slap some heat on this fondleslab and open it up.

  3. Xqk3COypAr6KDwJE
    Xqk3COypAr6KDwJE
    mTRa2CqbyFKCg64k
    EotrSkwfKgZw5aJx

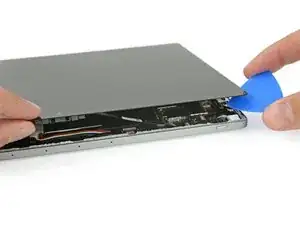

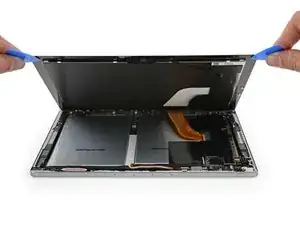

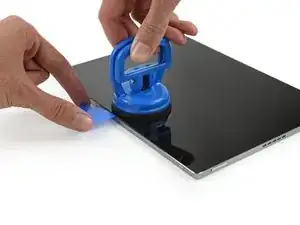

    • After much heating and some heavy duty suction, we have liftoff!

    • Alas, we seem to be tethered to the launchpad: a thin cable for the front-facing camera keeps us from immediate opening success.

    • A bit of deft spudgering is called for.

    • With the camera cable dispatched, we're able to open the Pixel C, with the wide display data ribbon cable still attached.

    • And get a look at that adhesive—thick, gooey, and plentiful. No wonder this was a tough nut to crack.

  4. wGHTVftFiKS3fp1t
    wGHTVftFiKS3fp1t
    NgYV6anKZIYNCi3p
    Yupwpwtw3O4HnDBf

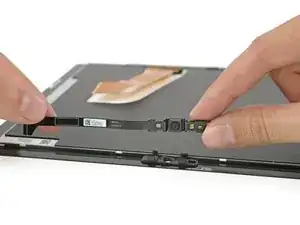

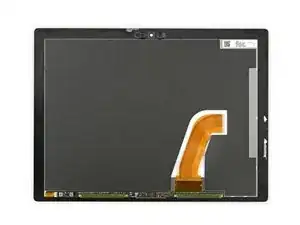

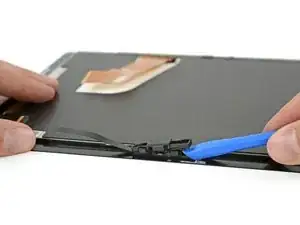

    • Unlike most other tablets we've seen, the Pixel C's front-facing camera assembly lives on the display, not within the device's unibody chassis.

    • That makes for an annoying extra cable to disconnect when opening the device.

    • The front-facing camera assembly contains a 2 MP selfie cam, ambient light sensor, and what looks like a camera indicator LED.

    • A small daughterboard connects the display data cable and is host to the Synaptics touchscreen controller (S3370B).

  5. L2QeQXg4MdmCiH3y
    L2QeQXg4MdmCiH3y
    vuSXWZBZPIuE4RVK

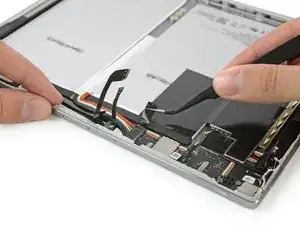

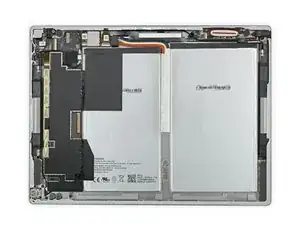

    • Display dispatched, we get a better look at the goods.

    • In the interest of safety, we decide to disconnect the battery first—no easy task.

    • The connector is buried under two ribbon cables and a piece of tape.

    • And an exploratory battery poke tells us those cells are very solidly adhered to the case... We'll save that chore for later...

    • There are a total of 17 magnets spread out through the whole case to allow for connecting it to the keyboard.

  6. NKFStdYmrMphl23w
    NKFStdYmrMphl23w
    wrRJBDlkbVRSRgAE
    PJcfkYjc4anXYglA

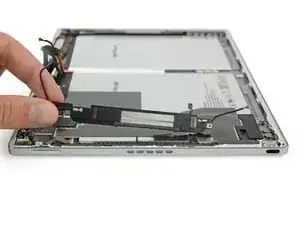

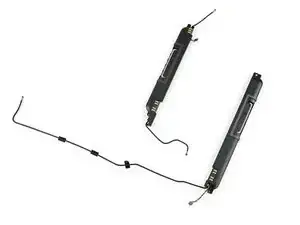

    • Where to next? Perhaps those fancy stereo speakers.

    • The speakers are home to adhered-on antennas, so replacing the speaker will probably mean a bit of extra work in the form of peeling and re-sticking.

    • The speakers' backs are covered in spring contacts that all connect to the back of the case—perhaps for grounding or for conducting WiFi signal to the antennas.

  7. CPKBOpwOggBkNLRI
    CPKBOpwOggBkNLRI
    vceGLLPnBOwJGef2
    jetMcFApfXNgBnVk

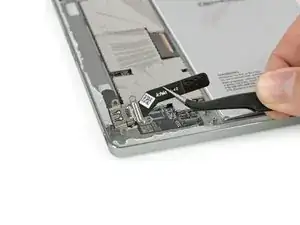

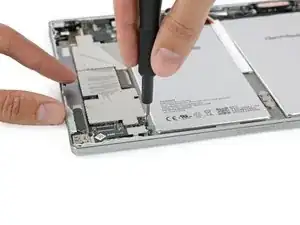

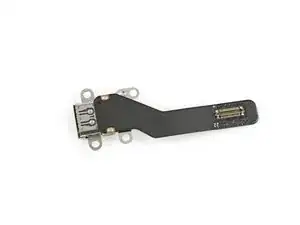

    • A couple standard Phillips screws secure the USB-C port bracket—but after that, the removal is painless and very modular.

    • We love seeing ports as separate parts! This port will likely get a lot of abuse throughout its life, and a modular component means it can be replaced with relative ease, at low cost (assuming you can get the device open without breaking the display...)

  8. JmgSZqiQa6LBbiwC
    JmgSZqiQa6LBbiwC
    yw14qkVhAQvBZBWp
    KCVicHGfobEBlfZt

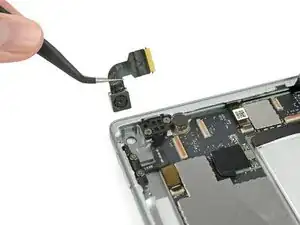

    • More modular components ahead!

    • The rear-facing camera comes out of its hutch after taking off the metal bracket keeping it in place.

    • We continue to be confused about tablet cameras—but at 8 MP, you can take pretty decent photos of your cats without grabbing your phone.

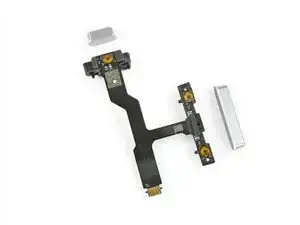

    • The power button and volume rocker are simply fixed with two screws apiece. Short cables and simple button covers will make replacements a breeze.

  9. NYS2HaBSmsYulU4A
    NYS2HaBSmsYulU4A
    vFpPDJHQZ43udbMA

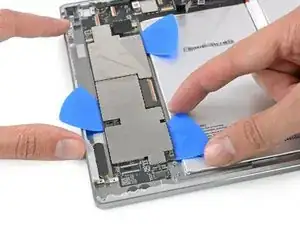

    • After a honeymoon of modular parts, we encounter a rough patch: an adhered motherboard.

    • And a black one at that! We're having Apple product flashbacks. At least the USB port was modular.

    • No screws to be found, we opt for some heat action.

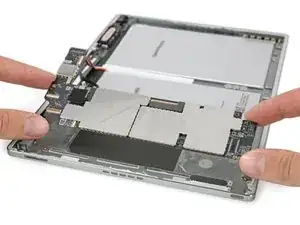

    • We finally pry out the heart of the tablet, wresting it from two adhesive pads, some (nonstick) foam padding and a couple strips of conductive foam.

  10. VvLqE3hmeH6tQcCw
    VvLqE3hmeH6tQcCw
    3YJjk1VebGrch2Hs

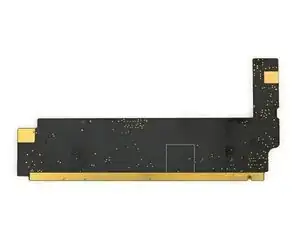

    • Major players on the board:

    • Nvidia Tegra X1 64-bit quad-core processor

    • Samsung KLMBG4GEND 32 GB eMMC flash storage

    • Samsung K4F2E304HMMGCH 6 Gb (1.5 GB) LPDDR4 RAM (x2 for 3 GB total)

    • Broadcom BCM43540LKUBG 5G Wi-Fi 802.11ac controller

    • Nuvoton NAU88L25 audio codec

    • STMicroelectronics STM32F3x8 32 bit ARM Cortex-M4 microcontroller

    • Infineon SLB 9645 trusted platform module

  11. QrX4JDdPeNbIMlXV
    QrX4JDdPeNbIMlXV
    6MxWSTW3LqIg24jG

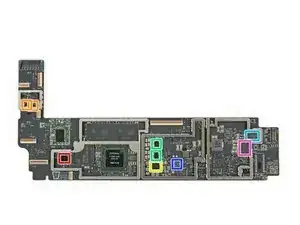

    • IC Identification, pt. 2:

    • Realtek ALCxxxx card reader controller

    • Analog Devices audio amplifier (likely)

    • Maxim Integrated MAX77620A power management

    • Maxim Integrated MAX77621A power management

    • Diodes Incorporated PI3USB30532 USB 3.2 Type-C analog switch

    • Diodes Incorporated PI3USB9281C USB port protection w/ charger detection

    • Winbond W25Q128FW 128 Mb Serial NOR flash memory

  12. l3Z4ZbPnTRKqKYeg
    l3Z4ZbPnTRKqKYeg
    ghorHqU1sJH6vAUl
    • IC Identification, pt. 3 (sensors):

    • Bosch Sensortec BMI160 3-axis accelerometer/gyroscope

    • Bosch Sensortec BMM150 3-axis magnetometer

    • Texas Instruments TMP451 temperature sensor

  13. FX3V5JIufpwounVU
    FX3V5JIufpwounVU
    wZqUeHZRYsfuE416
    6kBqXZwcy1xtGp42

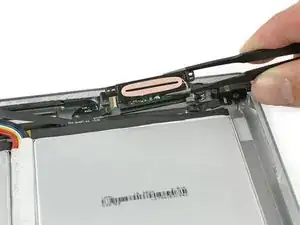

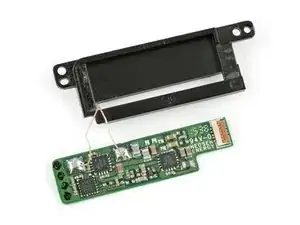

    • This neat little coil feeds the Pixel C's parasitic keyboard, when it's connected in the proper screen-covering position.

    • Having no ports of its own, the keyboard needs inductive charging from the tablet to function. We'll find a twin to this coil in the peripheral.

    • Under the coil, we find a control board—probably responsible for turning boring old DC power from the battery into exciting, varying-magnetic-field-generating AC to power the coil.

    • Chips found on this PCB include a STMicroelectronics STM8S003F3 8-bit microcontroller, a Semtech TS32101 DC-DC boost converter, and a Semtech TS51231 wireless power system transmitter.

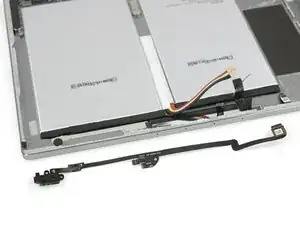

    • We also get to peel out this record-breaking headphone jack port with the longest tail ever.

    • It actually does double duty as an interconnect cable for the inductive coil and the right speaker.

  14. uQpBaNtEwfAHwDYG
    uQpBaNtEwfAHwDYG
    coabQKfQK1hI1jmm
    AiD1G6YbUYpoLXgD

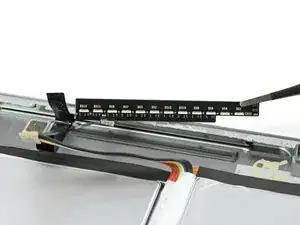

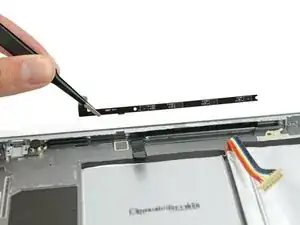

    • This portion of the case seems to be geologically interesting; under the headphone jack crust, we find a reflective backing covering an LED board.

    • But wait—those LEDs point up at the display, not toward the indicator bar in the case. That seems weird.

    • The shiny foil layer actually traps the light from the board and bounces it back down to a light guide that shines out through the case.

    • The final stratum is an array of four noise-canceling microphones.

    • Who knows if doubling the microphones will actually double the performance from the standard dual-microphone array.

  15. VjuTnvNJOEAmcqtK
    VjuTnvNJOEAmcqtK
    WsOunPaHdZXNo6Mq

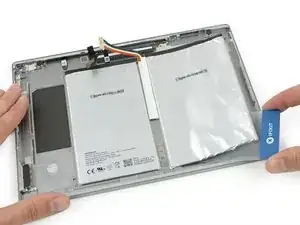

    • We're finally ready to tackle that hefty battery, but first let's peep those specs.

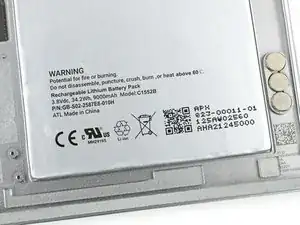

    • At 34.2 Wh, the Pixel C handily beats the 27.9 Wh 9.7" iPad Pro, but comes in behind the Surface Pro 4's 38.2 Wh powerhouse.

    • After some serious heating, we start scraping along with a plastic card.

    • Even at the shallowest of angles, we start to curl that battery like some pencil shavings. This is some pretty tough adhesive.

    • We decided tomorrow would be a better day for a Li-Ion battery explosion, and stopped here.

    Have you considered doing the opposite for battery removal? Freezing (or near freezing) might make the adhesive brittle while also preserving the rigidity of the battery pack. A cold Li-Ion battery is also less likely to explode, so that's a plus.

    Christian Schaab -

  16. TVbyLJxS2kIK5qhj
    TVbyLJxS2kIK5qhj
    AGTNR6iZc354cb34
    JOFiChgSgbgL6E1a

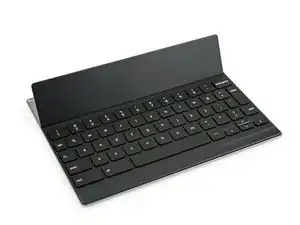

    • Now on to the Pixel C's keyboard. While not included in the base package, it's still worth a peek.

    • With no obvious point of entry, we start prodding, and heating, and prying.

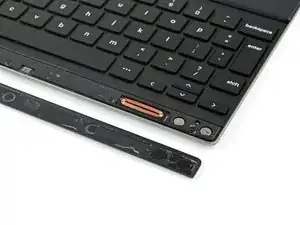

    • A plastic bezel is the first chink in the armor, and it looks like we made a good choice. Already we have an inductive charging coil, and several magnets exposed to the world.

  17. qILB6BDjtkWO4T1R
    qILB6BDjtkWO4T1R
    LuASkjAneuY2aYTT
    CnGOQOUaqP1mN2Ap

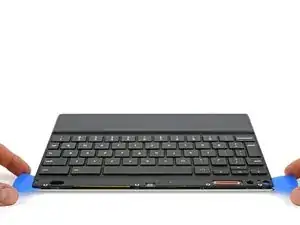

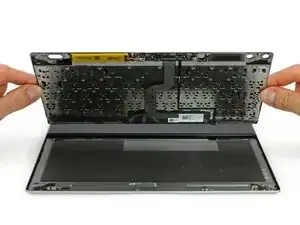

    • Removing a few screws, and adding a lot more heat, gives us ingress into the main body.

    • And the keyboard lifts right up—no pesky cables connect the keyboard to the bottom case, and none run near the prying edges. Phew!

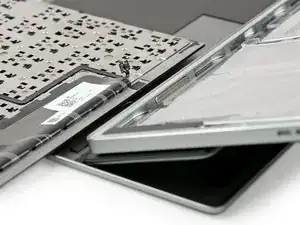

    • The big cable is for the keyboard, but what about that thinner one?

    • The narrow cable lines up with a magnet in the Pixel C's case—so, our bets are on Hall effect sensor. This way, the keyboard instantly knows it's attached to the tablet, so "you can start typing in an instant."

  18. wQUrfHSpgxS14Tn1
    wQUrfHSpgxS14Tn1
    IEwxXtykuANQDqBP
    ESSWxVEXLolQQgHi

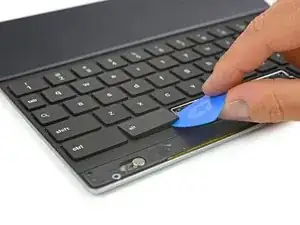

    • With an opening pick we can simply pop off the single keys.

    • Behind it we find the traditional scissor mechanism. Larger keys have an additional small metal bar.

    • The keys are also easy to clip on again. We are a bit worried about the tiny plastic clips breaking when trying to insert a key in the wrong orientation.

  19. FYKZhhxvEsJeYt1Z
    FYKZhhxvEsJeYt1Z
    jJwZYikH4YRC3FZx
    lDVJWiMgMJptag1V

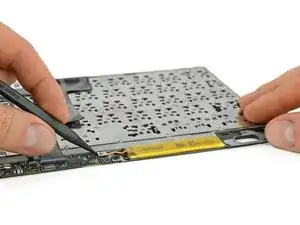

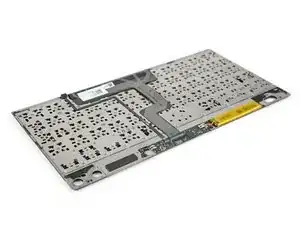

    • It's looking like the base is just a weight and hinge, while the guts are piggybacked to the keyboard assembly.

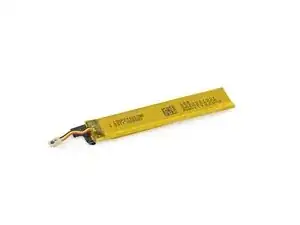

    • Ignoring the cables for now, we scoop out the teeny battery.

    • Lacking any specs, we can't tell you much about the battery—other than, well, it's small. And inductively charged by the tablet.

  20. LqJYKVgGa3uW2qAq
    LqJYKVgGa3uW2qAq
    HO3aSKjkUjAdGmuc
    Q6ZONamC5reTWKvH

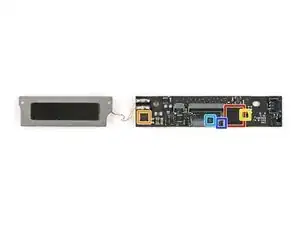

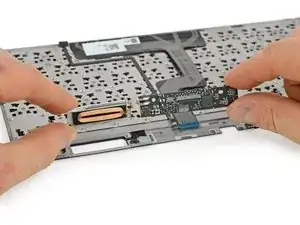

    • Dispatching the keyboard and sensor cable, we pop the main board—and attached inductive charging coil—from the keyboard.

    • And the brains of this (small) beast: Nordic Semiconductor nRF51822 2.4 GHz Bluetooth and 32 bit ARM Cortex-M0 microcontroller

    • Semtech TS51221 wireless power receiver voltage regulator

    • STMicroelectronics BAL-NRF01D3 50 Ω Bluetooth balun

    • Dialog Semiconductor (formerly Silego) SLG46110 Programmable mixed signal array (likely)

    • Texas Instruments LP5907SNX-3.3 250 mA / 3.3 V LDO regulator

  21. 3IWQYgYSapkRJnTO
    3IWQYgYSapkRJnTO
    XkvBMkR6UhZ36AJN
    n5FmZAmT1oLCXCAH

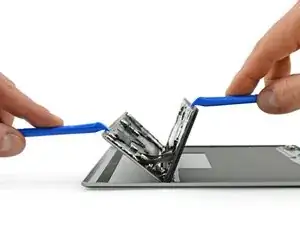

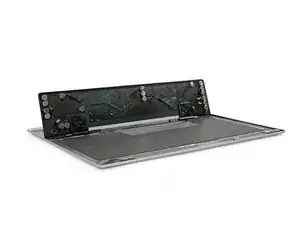

    • Final frontier: the tablet mount hinge.

    • As with the rest of this keyboard, it's packed with glue, but after a heating marathon we manage to pry the hinge components apart.

    • Under the cover we find: many more magnets! Google really wants this tablet to sit securely...

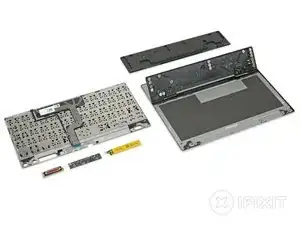

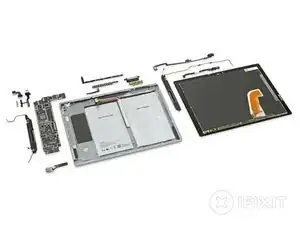

    • This snappy layout gives you a good idea of the simple, but solid, construction of this peripheral.

  22. btW6YsxhwkhlQhiV
    btW6YsxhwkhlQhiV
    I4qygwIMXIiUNQpm
    • The Pixel C Repairability Score: 4 out of 10 (10 is best):

    • Many parts, including the USB-C port, are modular and can be replaced independently.

    • The motherboard is glued tightly to the rear case.

    • Crazy strong adhesive holds the battery to the rear case, complicating the inevitable replacement.

    • The fused display must be removed to access any interior parts—no easy task, thanks to tough adhesive.
