This is the teardown of the HTC Droid Incredible. We will show you how to take the phone apart.

This will take fifteen minutes. And in order to reconstruct please follow the steps backwards to the start.

  1. RRReCxgZENKud2eo
    • Start by removing the back cover.

  2. lPiqZhdIKi2OUvlO

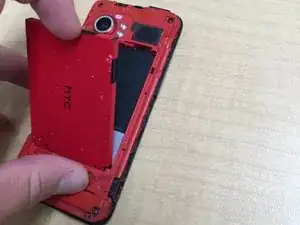

    • Then remove the battery.

  3. FuXMDdxFKYMZFPAS

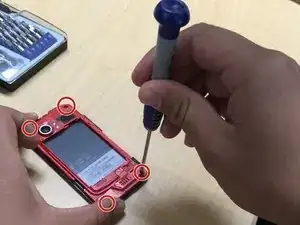

    • Then remove the four screws located in each corner of the phone.

  4. jKSTyuRVAeDOvEkN

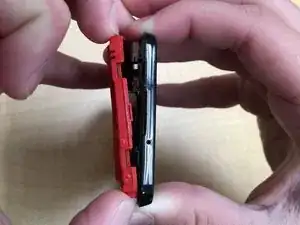

    • Then carefully start to spit the phone from any corner.

  5. gyHYxipbC2kVhkN5
    gyHYxipbC2kVhkN5
    FSIaQOvC5HxWmhyP
    fZ6JCmCMWAvyHnxp

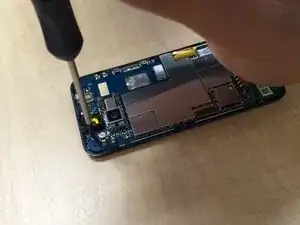

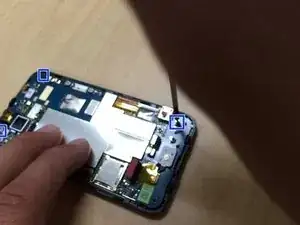

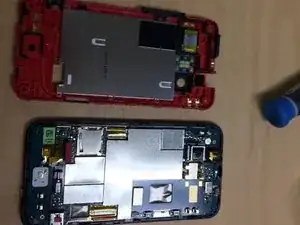

    • Then remove the three screws. one at the top and the other two at the bottom.

  6. 2YhPi6PCuiiw3c6E
    2YhPi6PCuiiw3c6E
    yXbXSjfdgZAZSPZK
    AqhRuVQfXoXrffuQ

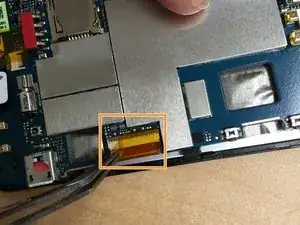

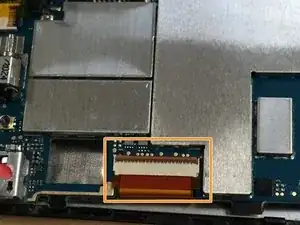

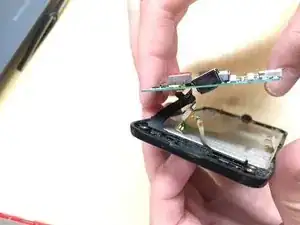

    • After removing the screw you also have to remove the orange strip by lifting up the top of the container. Then pull the strip out of it.

  7. pJOc1HHXRw1Nlnfv
    pJOc1HHXRw1Nlnfv
    eGJ1jBF5OQlXacGR
    kG4xlDvUPyplV3yA

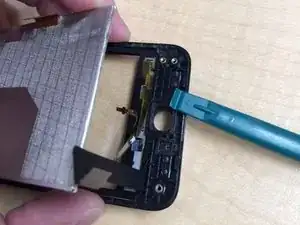

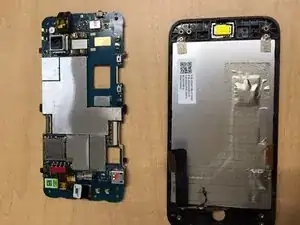

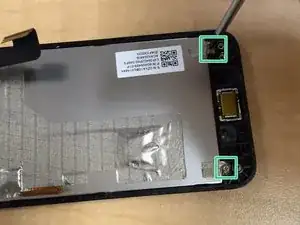

    • Remove the top two screws on the pone that will be encased in tape, and then pull the screen out using Blue Opening tool or other.

  8. PNpMqydSJewlSUkL
    PNpMqydSJewlSUkL
    aKBwktEv21AmRHOY

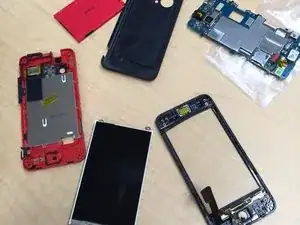

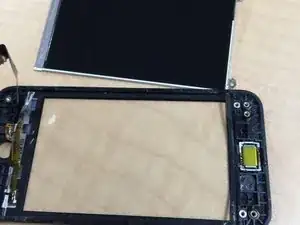

    • That is how you take apart the HTC
