HTC Evo 3D Teardown

Geschrieben von: David
Veröffentlicht: 23/08/12
  • Kommentare: 1

HTC Evo 3D Teardown

Veröffentlicht: 23/08/12

Teardown

Einleitung

This is only a simple teardown to take out all components that can be easily switched out.

  1. YHSLUHwueXi2Lmm2

    • First things first, Remove the back cover, battery and SD card.

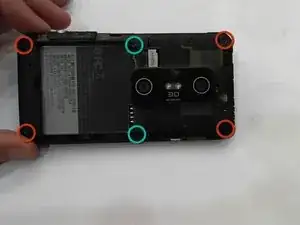

  2. PfqnKPcPigarTbLG

    • Remove the four T5 Torx screws.

    • Then remove the two Phillips screws.

    • *Very sorry for dark image*

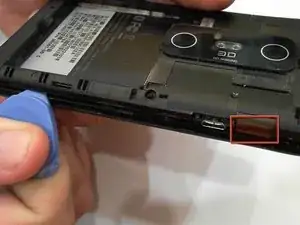

  3. DR5akMHlIQvCDscm

    • Once the screws are all out from the exterior back case, Begin separating the front housing from the back by using a spudger or any similar tool.

    • Begin from the bottom were the battery bay is, It is the easiest way.

    • Be careful of ribbons behind the plastic

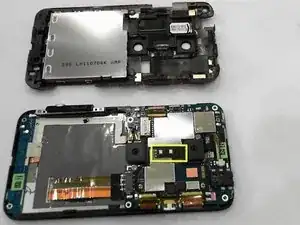

  4. 2aMhTFXiuloY4WJi
    2aMhTFXiuloY4WJi
    AIbOCLc2TGALkQ2L
    S3EQJlJCHMmUXWMO

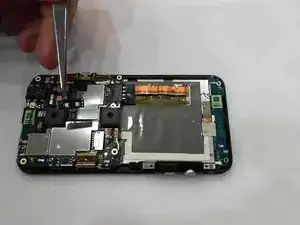

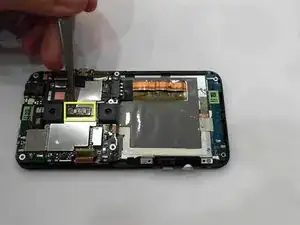

    • Once separated begin to remove the LED board. Apply only light upward force and it will detach itself.

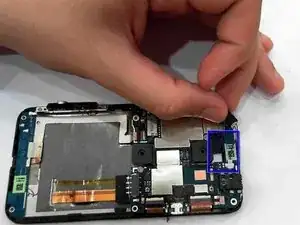

  5. l6CpmyWYdDcKgkor
    l6CpmyWYdDcKgkor
    1TlL4RURnD1OrKb6

    • Vibrator come's out easy, Just grab it by the wire and give it a little tug and it should come out.

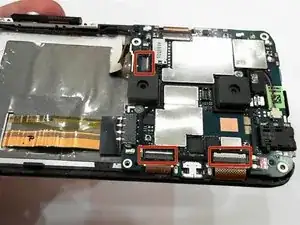

    • Start unlocking the clips holding the ribbons. pull the white tab up to unlock.

    • Example: bottom left is unlocked, bottom right is locked. upper left has bin finished and removed.

    • Tuck the ribbons in without bending or making tears in them.

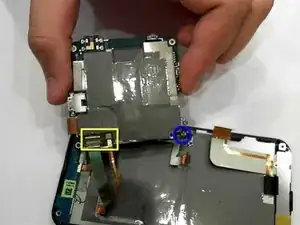

  6. INAAGYwapMVWQElt

    • Behind the main board is two more ribbon's.

    • Flip both tab locks holding the ribbons and they will slide out vary easily, Don't force it.

    • Wifi/cellular antena port, Lift up cord head directly to remove and press straight down centered to put back on.

    • As a side note, the grey tape on the back side of the board was covering the clips so i cut a small section for this guide.

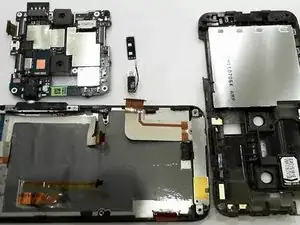

  7. SAcFTjiWfCsr1bD5

    • This concludes the (simple) teardown of the Evo 3D.
