Its quite difficult to get the front cover off, but one it is it will expose the tweeter, woofer and one of the 2 passive radiators

The back cover isnt a cover like the front is, it IS the back. Removing all the face screws will allow it to rather easily pop off and expose the inside

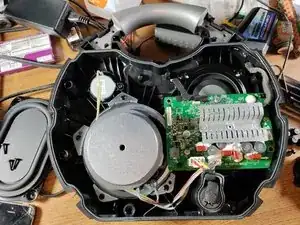

Inside here we will find an onyx tweeter, aura sub and both of the weighted omni passive radiators

Theres also a SINGLE 18650 battery and the main board

Tweeter is 4 Ohm, Woofer is 2 Ohm. Remember this as it will be used on the next page

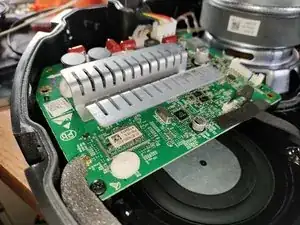

Not too much to see here, Bluetooth module and its antenna, AK7755EN DAC and various power supplies and the output filters for the amplifier. a DC-DC boost converter supplies higher voltage for the amplifiers

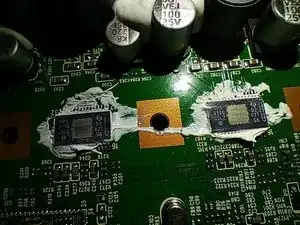

Under the heatsink lies 2 TPA3116D2's that i believe are running in PBTL

Heres where its gets complicated and long-winded. The speaker has 2 operating modes. Battery and AC power, Which is a 19V 2A brick. When running on battery supply voltage bounces between 7V-10V when measured at pin 32 of the TPA's. When plugged supply voltage sits at a much more stable 12V

The DAC also implements an aggressive compressor when on battery power. Power AT THE WOOFER on battery was 5.9V which comes to 17.5W into 2 Ohms. When plugged in voltage jumped to 9V, which at 2 ohms is 40.5W! I Didn't power test the tweeter but im going to guess battery is around 3W-5W and plugged in is around 10W
