    • Here's the Bop-It Toy! Compared to older versions of the game this one is more compact, thus allowing for more portability.

  2. bM1fOPoQWiS1gbBl
    bM1fOPoQWiS1gbBl
    LAqfliutuSfIWumi
    QtCcaAUr63wSXo1C

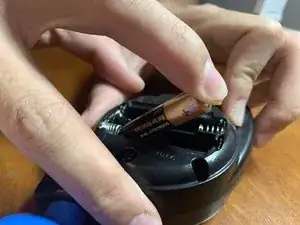

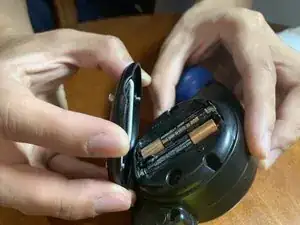

    • Next we'll remove the batteries. Fortunately when purchasing the toy these batteries were included.

  3. SMZYXOPsbQLx6EdG
    SMZYXOPsbQLx6EdG
    ZDGSukNtNiqXLAJZ
    5aall31GQGAtVNDG

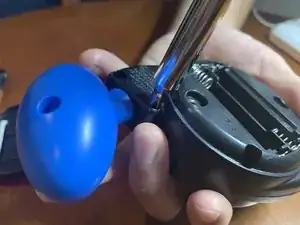

    • Now we're ready to take apart the rest of the Bop-It toy.

    • For the two additional screws in the middle we needed to use a thinner, longer Phillips screwdriver to reach the screws.

  4. WqCLSZCuekiwfdDW
    • When pulling both parts of the game apart, we made sure that no loose parts such as the spring shown fell off.

  5. dgJuPxEgfg3FYOyH
    • With the Bop It opened up, we can see the different components that make the game work:

    • The button used to detect a twist. Looks like instead of using a dedicated sensor to detect a twist, the toy connects the twist to a lever to push a button. Maybe this was done to save money, but this may not make the toy as durable.

    • The button used to detect a pull. Like the twist part, this also uses a button instead of a dedicated sensor.

    • The button that detects a bop. Since a bop is just a button press, this one doesn't need any additional fancy mechanical parts.

    • The speaker. It looks like it has a spring over it that makes "bopping it" as fun as it is.

    • The microcontroller. It's covered up by a glob top, so we can't actually tell what type of microcontroller it is unfortunately.

  6. 6oMbKUSpQVoUSNwO
    6oMbKUSpQVoUSNwO
    wmIPvSIlqYGKxZSF

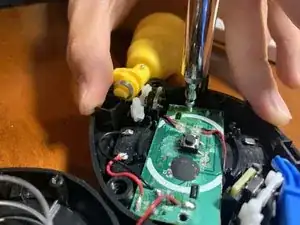

    • Now let's see if there's anything else under the PCB.

    • Unfortunately, there wasn't really much to see beside the reset button and a few capacitors.

  7. SMF2RsWrRskHPJA1
    SMF2RsWrRskHPJA1
    oCJrhZp3R1TflnyM

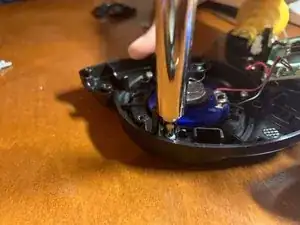

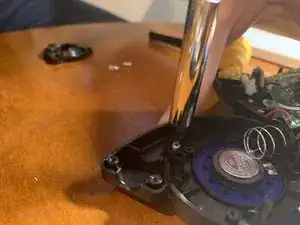

    • Alright, just a few more screws to go.

    • Along with the speakers itself, we could also see another spring connected to it. This spring might be there to protect the speaker from any damage after "bopping it".

  8. GwMPXE2iZPD4dpb1

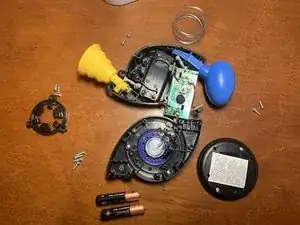

    • Thanks for taking a look at this teardown! Special thanks to Travis Vo for helping out with the teardown.
