Huawei Phone p7 Teardown

Geschrieben von: Sophia
Veröffentlicht: 10/06/15
  • Kommentare: 4

Huawei Phone p7 Teardown

Veröffentlicht: 10/06/15

Teardown

Einleitung

  1. TvUEk4qJkAcYfXGn

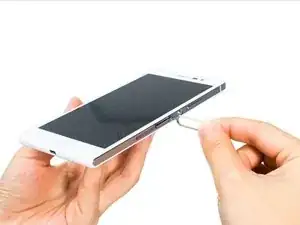

    • Remove SIM card trays.

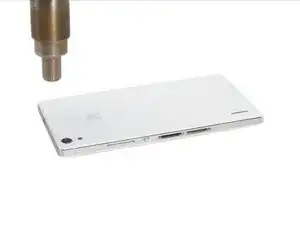

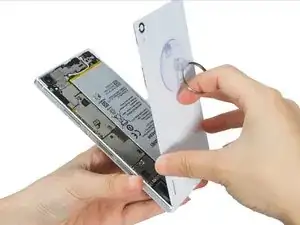

  2. a6SKHQTerPg5WByA
    a6SKHQTerPg5WByA
    EqBYpVwRHUIf5bRj
    ZWww2VLCDZSMBKC4

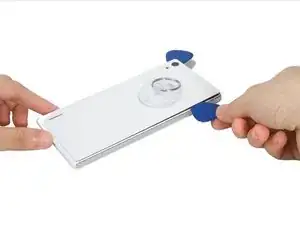

    • Remove back cover.

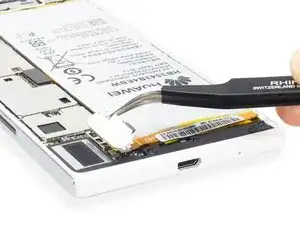

  3. xPWRhQHUsIYQb51g
    xPWRhQHUsIYQb51g
    dLUcNRxVR6NQUydP

    • Remove battery connector securing bracket.

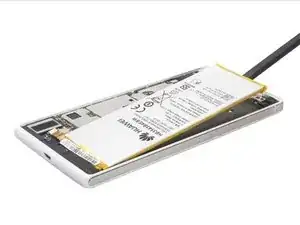

  4. HlAItc2JKhXYKVQ3
    HlAItc2JKhXYKVQ3
    Px5bjEasarpEo6Po
    6LLPFumWYbxHy2dT

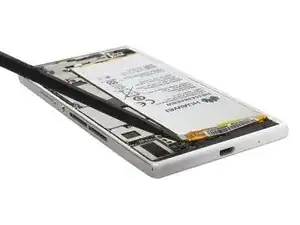

    • Remove battery. Attention: Be careful with the adhesive and the flex under the battery.

    When removing the battery don't just be carefullof the flex cable underneath it. Also be very carefull of the battery, mine just exploded !

    Willem Haasbroek -

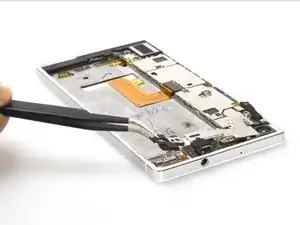

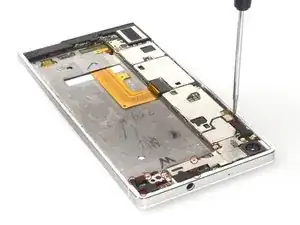

  5. bKAURAd2vBGZcCFK
    bKAURAd2vBGZcCFK
    DNTXS2v4WNEF2m33

    • Twist off the screws and remove the top securing bracket.

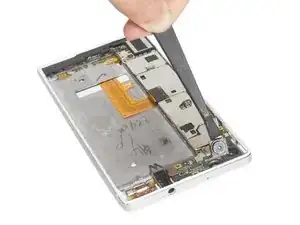

  6. c2x5g5ToS5TAYnNB
    c2x5g5ToS5TAYnNB
    yJWWyv2F4HOWkYrC

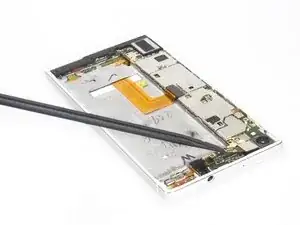

    • Release connector and remove front facing camera.

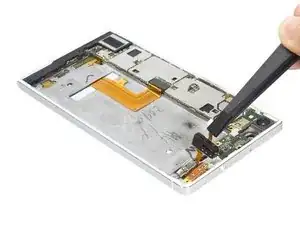

  7. O2pTsbTL5PFrmMUH
    O2pTsbTL5PFrmMUH
    sPHVmv4QSPvibbZD

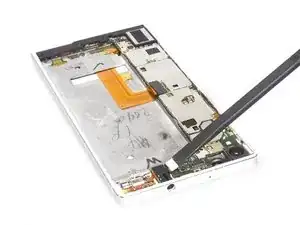

    • Release the connector and pry to remove headphone jack assembly.

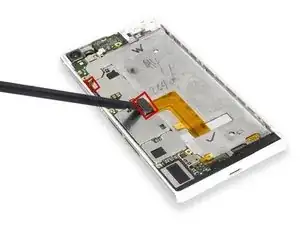

  8. diWIQDvkL2W2Wyq1

    • Release power flex connector and LCD screen connector.

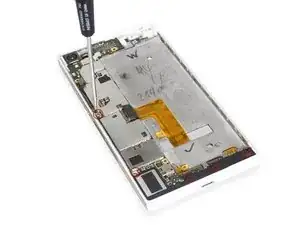

  9. IgQPw1EmsDv2nDDa
    IgQPw1EmsDv2nDDa
    quP6j2BSCnP2oOVm

    • Twist off screws and remove bottom securing bracket.

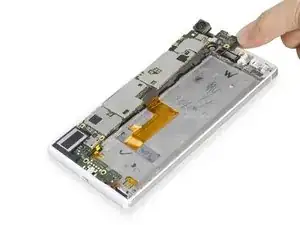

  10. gJINN2AufirwVtFU

    • Remove motherboard.

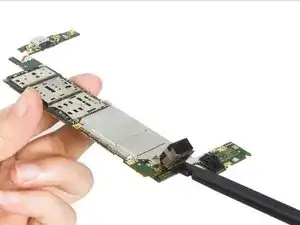

  11. T5mYAlHGSnWayXNp

    • Remove rear facing camera by the way.

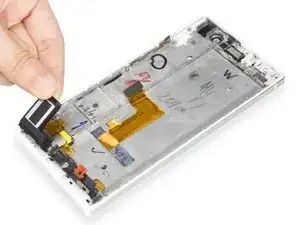

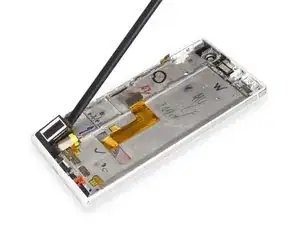

  12. ATgY5XCbjaqVYpAD
    ATgY5XCbjaqVYpAD
    o4bxRBUDTgpW2oLV

    • Remove loudspeaker assembly.

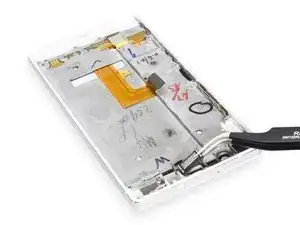

  13. RQ1GAFPxuHlqxYPt

    • Remove earpiece speaker.

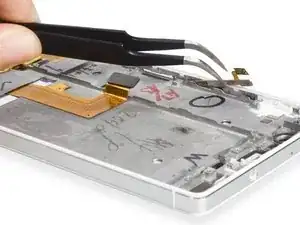

  14. 3njBOAsTnRB5U1js

    • Remove power flex.

  15. aY4CrK5aXDeTybXm

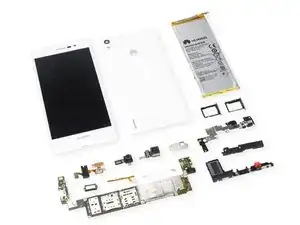

    • Done.

    • We are sorry that didn't separate the screen from mid-frame. Because we can't open a gap between them even after a long time heating and many times try. It's said there is glue but not the sticker around the screen. So if operate with force, it's at high risk to break that good screen and scratch the frame.

    • But you can do it freely when you have cracked the screen and need a screen replacement.
