Ikea TRÅDFRI Gateway Teardown

Geschrieben von: arturo182
Veröffentlicht: 31/03/17
  • Kommentare: 6

Ikea TRÅDFRI Gateway Teardown

Veröffentlicht: 31/03/17

Teardown

Einleitung

  1. DhGwKtNTwlC4Bbhs

    • The Gateway I'm tearing down today came from the Ikea Gateway Kit, which includes the Gateway, two bulbs, a remote, a USB A to Micro-B cable, a Ethernet cable and a 5V @ 1A charger.

  2. BOHAL3A2gguuZVpA
    BOHAL3A2gguuZVpA
    bWVoYLcdrXVHYUMC

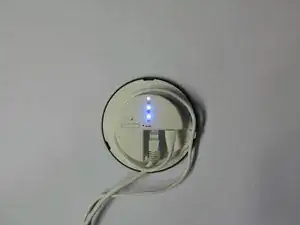

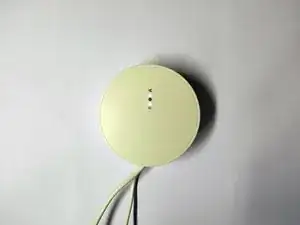

    • The Gateway has 3 status LEDs:

    • Network

    • Internet

    • Power

    • The cables fit neatly inside the plastic case.

  3. eiWgDB33FZbTnyyX
    eiWgDB33FZbTnyyX
    qMVJCk1DLC4X1Xki
    yMJmZIYGPHMiL2bj

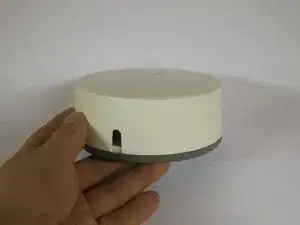

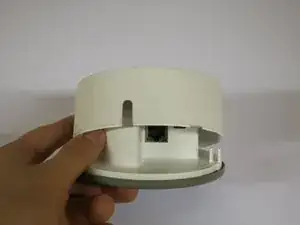

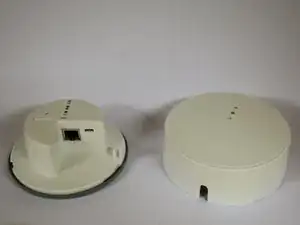

    • The top part of the Gateway easily comes off after you twist it slightly counter-clockwise.

    • There are two helpful markers on the side of the Gateway, when the top marker matches the bottom left marker, the top is locked, when it matches the bottom right marker, the top is unlocked.

  4. 2MDRMWNSpRLjTBNp
    2MDRMWNSpRLjTBNp
    YWGi6yo3gmKkpgEb

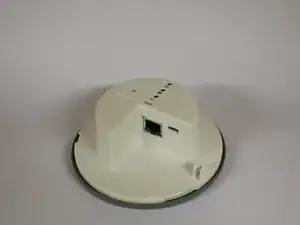

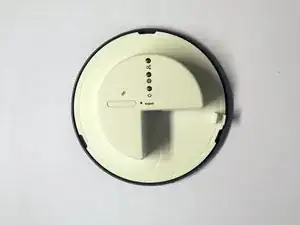

    • Closer look at the base.

  5. 2xPFCX5lPmjWcOvn
    2xPFCX5lPmjWcOvn
    2DaCTNSML6VKBhXN
    difOMQePVWTGxHTR

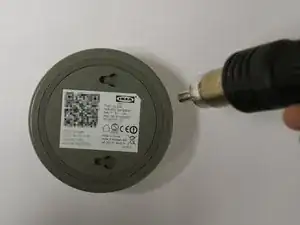

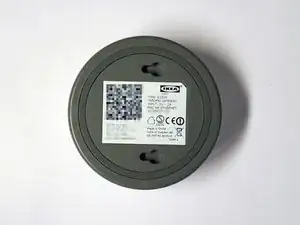

    • We flip the base and we see a sticker with the Ethernet MAC address and QR code used during the setup.

    • But not screws!

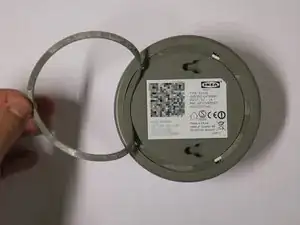

    • Let's heat up the rubber ring slightly to soften the glue and remove the ring.

    • Voilà, plastic tabs.

  6. RUROMj52R43tNWpl
    RUROMj52R43tNWpl
    tbDsk2qiYR43CZVc
    IdgORReXxiqcIlnr

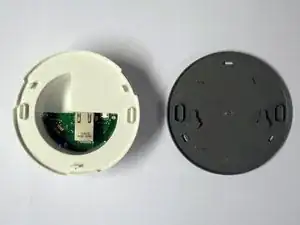

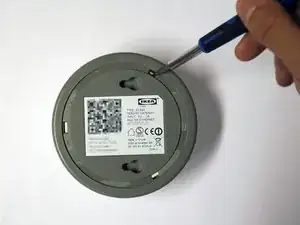

    • We pry the 3 tabs and we see...

    • A tiny PCB!

    • Wow, that is one tiny PCB.

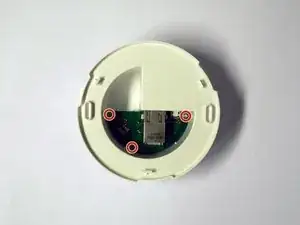

    • The PCB is held in place by 3 Phillips head screws.

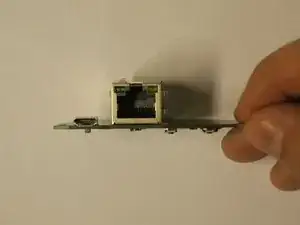

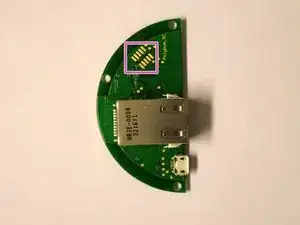

  7. k2BCmJGU4y3FIXKn
    k2BCmJGU4y3FIXKn
    kiybtyXIS6arcrPP
    Uf414664EkWnWHnT

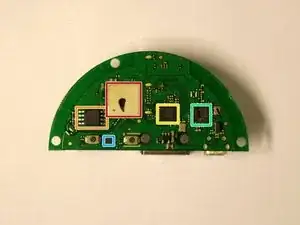

    • A mysterious unpopulated footprint, can I hear "debug connector"?

    • ISSI IS25CQ032 32 Mbit Quad-SPI Flash

    • Murata Type1GC 2.4GHz & 5GHz Wi-FI Module

    • The module includes the Cypress BCM43907 Wireless System SoC

    • Broadcom BCM5241 Fast Ethernet Transceiver

    • Silicon Labs Mighty Gecko EFR32MG1P132GI Zigbee and Thread Multiprotocol SoC

    • Seems to be the same SoC as the one used in the Ikea bulbs.

    • 934 3959 1624 - With the recent announcement that the gateway will work with Apple's HomeKit, it's possible this is the MFi chip

  8. iJTYjOKYKKZkUogZ
    iJTYjOKYKKZkUogZ
    no2EwHMhXQhydLoB
    ZnZQSNGIoDHdBrDo

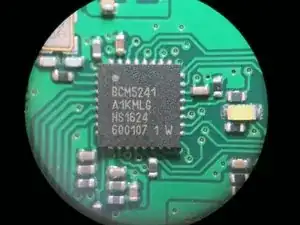

    • A closer look at the Wi-Fi/Ethernet/Zigbee parts.

  9. ZFQEsV3Gchnth66l
    ZFQEsV3Gchnth66l
    OO26Tw6QYJHCEtHn
    s4HlYVWcCOVQ1pMC

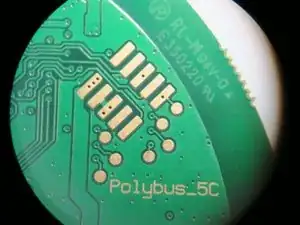

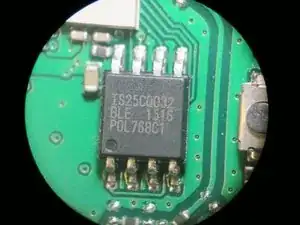

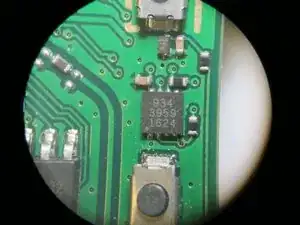

    • Another look at the other parts.

  10. ayLucbPxfZvhm1B5
    ayLucbPxfZvhm1B5
    f2LFbNWNvklGSrgc
    kNEaqncGk3s1OGHB

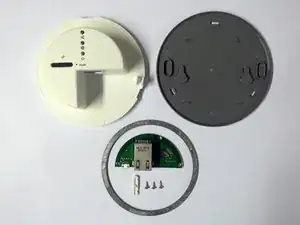

    • This concludes the teardown.

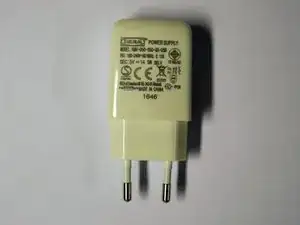

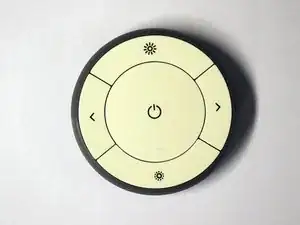

    • As a bonus, I include a shot of the USB charger and the remote, which I won't be tearing down today.
