Jolla C or Intex Aqua Fish Teardown

Geschrieben von: Jos Wagenmakers
  • Kommentare: 0
Jolla C or Intex Aqua Fish Teardown

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

Basic disassembly of the Jolla C (mostly the same as the Intex Aqua Fish)

  1. gLo1YIYdW6OKfCeO
    gLo1YIYdW6OKfCeO
    4HXHNBHL4IpFlNFA

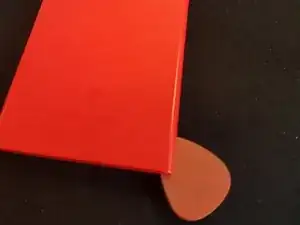

    • Remove the back cover, starting at the bottom right corner with your nail or a prying tool

  2. BdVIIX2oe2Iqv2VT
    BdVIIX2oe2Iqv2VT
    4wGailTTedNGwqMt

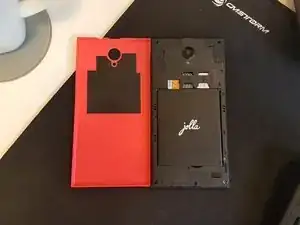

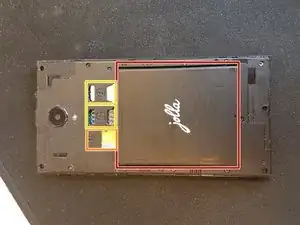

    • Remove the battery

    • Remove all sim-cards

    • Remove the microSD-card

  3. 25QFBOF5GBmqsy3Q
    25QFBOF5GBmqsy3Q
    1jCiZkcYNARTd1TF
    avaFBMltFnCXrpts

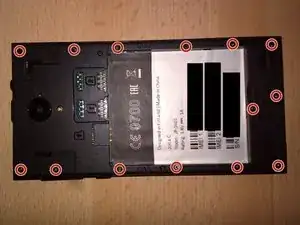

    • Remove all 14 cross-head screws

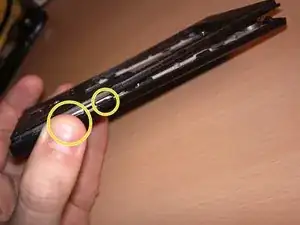

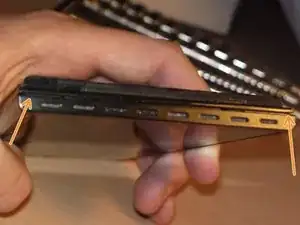

    • Use a prying tool to separate the middle cover from the phone, working from the bottom slowly up to the top

    • Watch out for the power and volume buttons, which probably fall out of the device.

  4. VmjaKT1ybKnmq3DI
    VmjaKT1ybKnmq3DI
    bBlfXDGmyUaCKrZM
    A1mU3VjrWCv64PlX

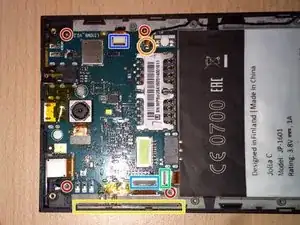

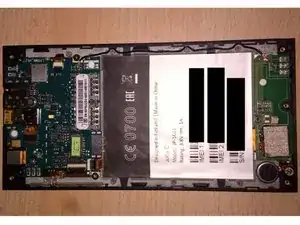

    • Remove all cross-head screws

    • Remove the antenna wire from the circuit board

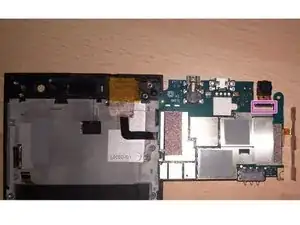

    • Pry loose the power & volume button part at the side (it is stuck to the phone with sticky tape) and pull it out

    • Pull out the connector for the bottom cuircuit board

    • Pull out the screen connector

    • Pry loose the connector for the proximity sensor etc

    • Now you can remove the top circuit board

    • Remove the main and front camera connectors

  5. S1AbfNeFLObBbUmp
    S1AbfNeFLObBbUmp
    x2fUXaPKjSAqSEGL

    • Remove the antenna cable

    • Remove the speaker and vibration motor from the phone

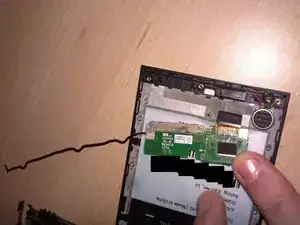

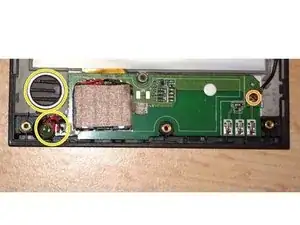

    • Both items are stuck to the phone and the cables are very fragile. I broke one of the connections when removing the speaker for a second time, as seen in the second picture. It is possible to solder it back on

Abschluss

To reassemble your device, follow these instructions in reverse order.
