Einleitung

The Jolla smartphone is a smartphone produced by Finnish company Jolla Oy that runs the Sailfish OS, released on 27 November 2013. Let's see what's inside!

  1. EZhxlZpAcJKHRVbE

    • Turn it off!

  2. bATtbPEBVgbJ5vKK
    bATtbPEBVgbJ5vKK
    KFVsnfYIainZhOQm
    BpnATlUZNaMT4cGe

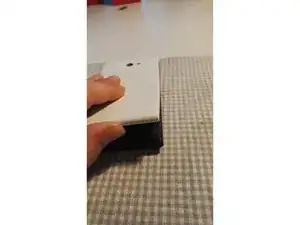

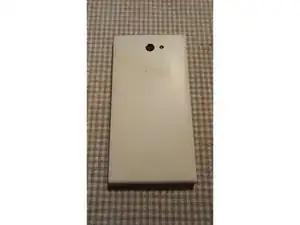

    • Remove the back cover by pulling up from the bottom right hand corner. Remove the bottom first and then the sides.

  3. 2OywfENHMAEZ3QPS
    2OywfENHMAEZ3QPS
    CHjnXNqXWOmYHHMF

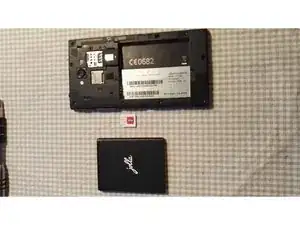

    • Remove battery from the small space near the bottom of the phone.

    • Remove the sim card by pulling the plastic flap to the right and pulling/pushing the sim card downwards.

    • Remove the MicroSD card by pushing up from the bottom until it clicks. It will then ping down.

  4. csJNIVxbHLfody2k

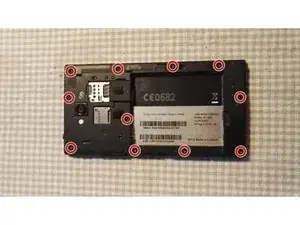

    • Remove 11 T5 screws.

  5. 6ABFJTT5IS3BRfAy
    6ABFJTT5IS3BRfAy
    UIwKZKSUYfCiD5QB
    RdH2LLvP2EDU3HHm

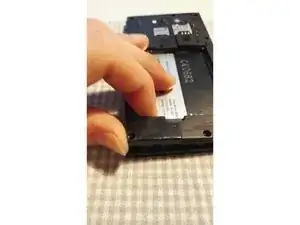

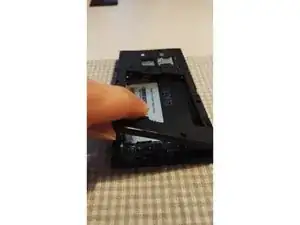

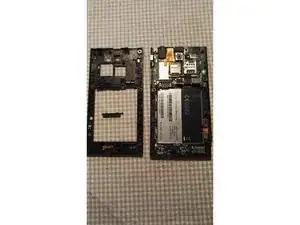

    • Pull up from the bottom corners, remove the bottom first and then the sides.

    • The volume and power buttons may fall out at this point. Don't lose them.

  6. EiYa4jvVFBljdQGN
    EiYa4jvVFBljdQGN
    MLZqqcU2JOFH1SYw
    yZBMmNGCqrwmbvCf

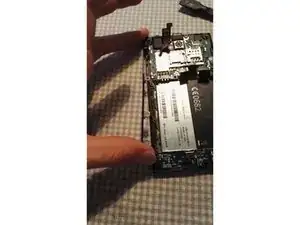

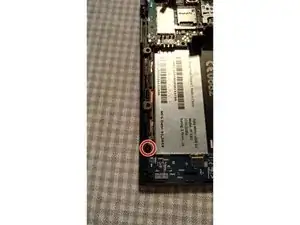

    • Remove this T5 screw from the bottom left hand side. This is the only screw holding in the inner frame.

    • The frame should lift out and up from the phone.

    • If your volume button and power button haven't fallen out yet, they will now.

  7. vLaHtoQW1LuX6X2X
    vLaHtoQW1LuX6X2X
    moBpSojiVvfb2IE4

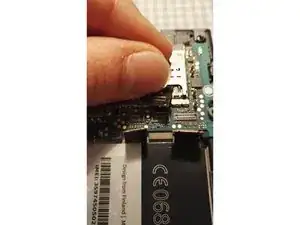

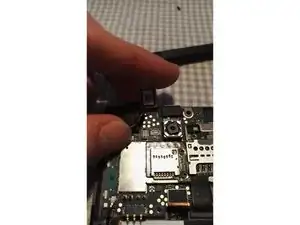

    • Two connectors on the top right hand side.

    • 3 connectors on the right hand side about half way down the phone.

  8. PkEsMEr4xK4Tjnlw
    PkEsMEr4xK4Tjnlw
    LT6IDmPmWFRbJvaH
    OWGRsFfewpsiiYZd

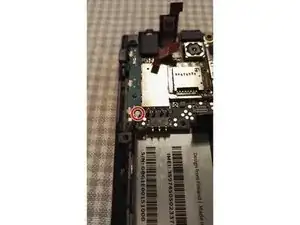

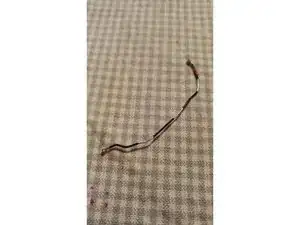

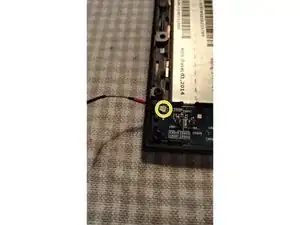

    • Remove one end from here.

    • The other end can be removed here.

  9. NZGhO4hoZSDQXAW4
    NZGhO4hoZSDQXAW4
    JEPfVTkTVvhdabSP
    fUnRwSxS3PWyVh1p

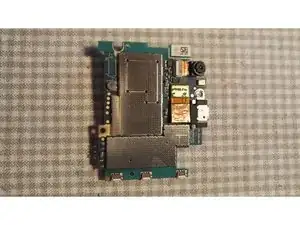

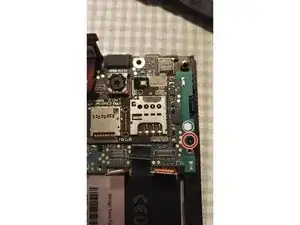

    • The circuit board is held in place by one T5 screw.

    • Use a spudger to gently pry the circuit board upwards. Do this on both sides.

    • It should lift out quite easily.

  10. UjYEr5bEdvwwNtCa
    UjYEr5bEdvwwNtCa
    AOeOfGwWh5AifFFB
    JUbVRaOULLvg4Dq3

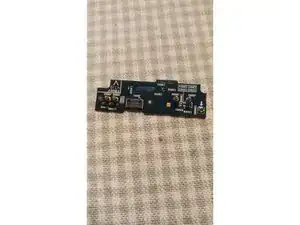

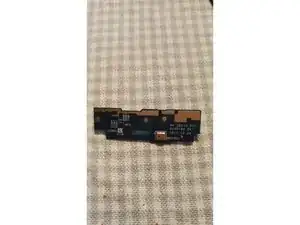

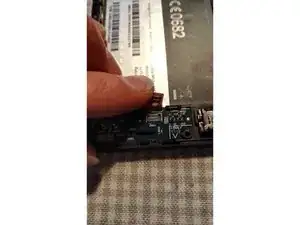

    • The second circuit board can be removed after removing the connector attached to it and gently prying it off. It's fixed in place by a small amount of glue.

  11. CZ3y65bmUe3NegUZ
    CZ3y65bmUe3NegUZ
    PVscwCARMyGxfqKv
    3HM3YL6rvS5vbtHL

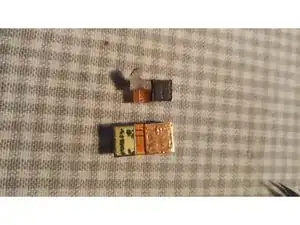

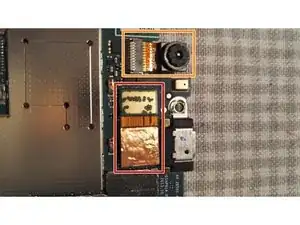

    • Main camera.

    • Secondary camera.

  12. PvBeH2FglfORQxnd

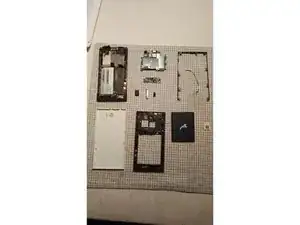

    • I won't be removing the screen in this teardown as replacement screens for the Jolla phone are not very easily available at the moment.
