KORG Volca Sample Teardown

Geschrieben von: Christian
Veröffentlicht: 09/08/17
  • Kommentare: 26

KORG Volca Sample Teardown

Veröffentlicht: 09/08/17

Teardown

Einleitung

This guide will show how to open the KORG Volca Sample and explain how things work inside.

  1. MUElwcmRiLElNoPD
    MUElwcmRiLElNoPD
    1fcLdFKiZLAXMHJW

    • Remove seven Screws.

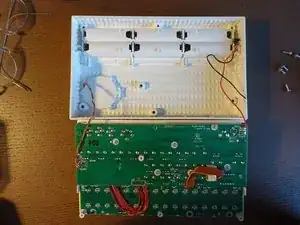

    • Then turn the Volca around. You can now remove the two PCBs. Take care with the loudspeaker cable and the battery cable. In my picture the black cable is already loose.

  2. ZLE3Vwus3YOCcVLA

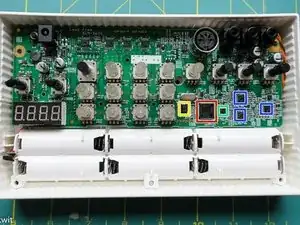

    • This is the main processor. It is an Cypress FM4-Series MB9BF164L.

    • 25Q03213

    • The DAC. AKM4384FT.

    • MV3241 / 49AG3 / P220

  3. 4DFEUUrkmBdqpOwy
    4DFEUUrkmBdqpOwy
    saEByPpb4GGqfM4g

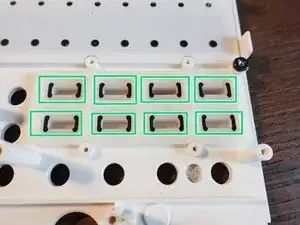

    • This is how working buttons should look like.

    • If this isn't the case, clean these parts with a Q-Tip dipped in isopropanol.

    • Clean these parts as well.

  4. pQOZIPsMq1KKT2Is
    pQOZIPsMq1KKT2Is
    WSnRWNjZ2bmPjv1W

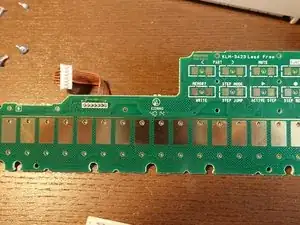

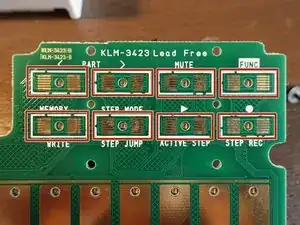

    • Here is a complete overview of the PCB containing the Step Touch Buttons and the FUNC and WRITE buttons
