Keurig K-Mini Teardown

Veröffentlicht: 15/03/21

Teardown

Einleitung

Werkzeuge

Phillips #0 Screwdriver

Schritt 1

Unplug machine from the mains electricity.

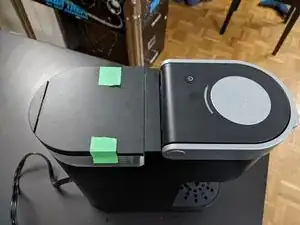

Tape down the water refill cover.

Schritt 2

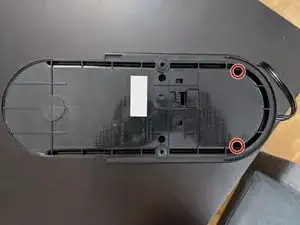

Remove two phillips screws on the base.

This step needs a Philips #1 screwdriver, #0 was too small when I tried.

Edward Davis, Jr. -

Schritt 3

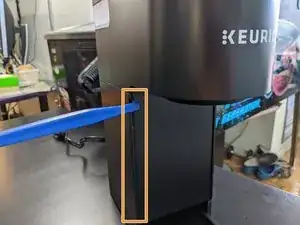

Insert pry bar and slowly work your way down the side of unit popping out the clips.
Repeat on the other side.

Schritt 4

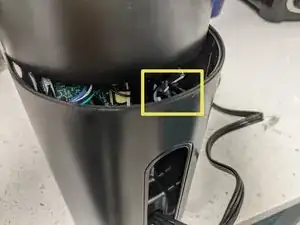

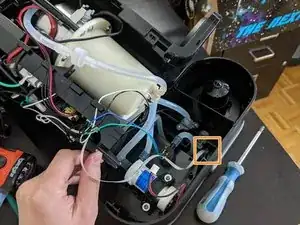

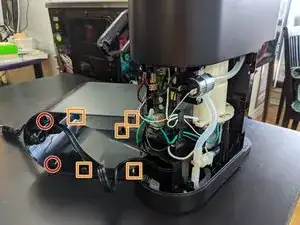

This clip on the rear of the unit is particularly tricky to pop off, but popped off when the other chassis clips were all removed and held open, while pulling it backwards.

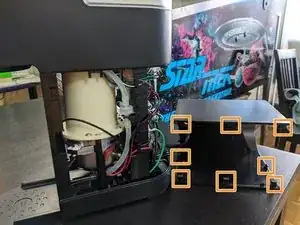

There are 3 clips down each vertical side, 2 on the top middle and 2 on the bottom middle.
This is where the screws screw in to. They need to be unhooked from the base to be able to pull it backwards and off.
Getting the chassis off was particularly tricky, I recommend borrowing a second pair of hands if you can.

Got chassis OFF. Want to find clog or whatever has made it stop working. What is next step,after #4?

lindsay cable -

Schritt 5

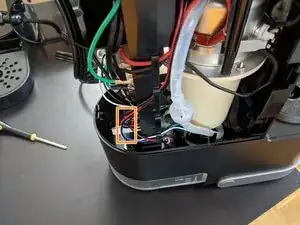

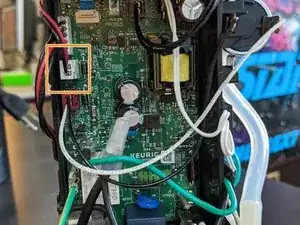

Before separating the top section, unplug the water pump from the rear circuit board.

What is the Blue capacitor like in the above photo (MOV1)? Is it a thermistor or varistor? and what is its value? The above photo is blue, But mine is red. It got burned and its face was blown away, so identifying its value cannot be made.

Frankie Fulgar -

Hello, does anyone know how to reset the thermostat? my keurig doesn't turn on

Jorge Garcia -

Schritt 6

Flip the unit upside down.

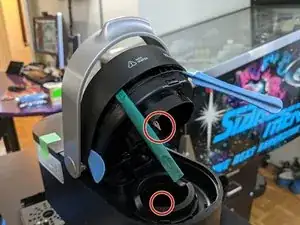

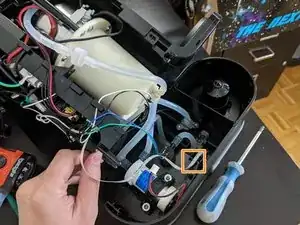

The top of the unit is held in by one clip near the circuit board and clips around the cup spout
Holding the unit upside down, work pry bars around the curve and the top will pop off.
Once the front is popped off, you can wiggle the top section and it will separate from the base

Schritt 7

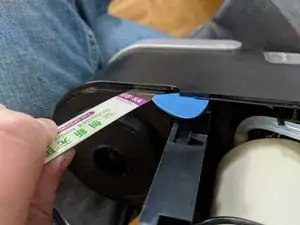

The ribbon cable for the lid is glued in place and the lid can not be removed unless there is slack to pull.
Gently pick at the silicon glue blob and it will come up at the edges. Slide it down the ribbon cable.

Schritt 8

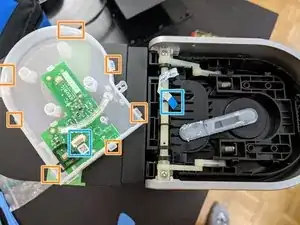

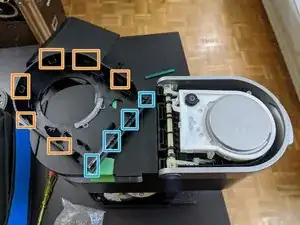

There are six clips around the curved section and four clips along the hinge holding the top of the lid in place.
Apply pry bars around the curved section of the lid until the middle can be pulled out.
Be very careful not to hurt yourself on the spikes.
Once the curved section has popped off, the lid will still be attached at the hinge section. Close the lid and pry along the back of the hinge section, pushing the lid top away from the water refill area until the lid pops off.

where can I get the pry-tools? thx.

Randy

Randy -

Right here on the iFixIt store. They are included in most kits.

James Clutterbuck -

Schritt 9

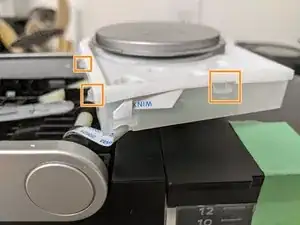

The white box has clips around the edge which can be easily popped off with a pry bar.
Remove the K and power buttons. There are four springs under the K button to stabilize it.
Under the white rubber cover it's the small latching connector for the lid ribbon cable.

Schritt 10

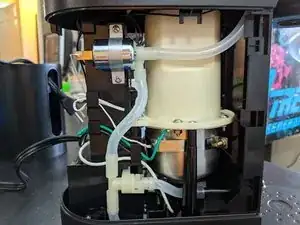

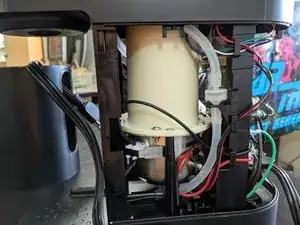

Side views of the internals.
Make sure when re-assembling to clip all the wires in the right places, so they do not come in to contact with any hot parts and potentially melt!
The lid ribbon cable has a little clip in the top of the chassis to keep it tucked away.

Have NO energy left to try to solve problem on this cheap plastic piece of junk. Waste of $. No wonder there are so MANY used, for sale.am throwing it OUT

lindsay cable -

Tinte & Feder

James Clutterbuck

Mitglied seit: 15/03/21

181 Reputation

8 Kommentare

I plugged mine into 220V

Can I change the fuse?

How ?

and where can I find the part

Hattan Talaqi -

There is a heavy current heater circuit. These machine are not dual voltage. Machine is made for local voltage and modification is unlikely possible. There is a thermal fuse for safely right after the main, hiding in red sleeve, but I did not open and inspect the rating. Circuit continuity can be verified easily.

Lawrence Law -

I don’t recall seeing a fuse, but maybe it’s there. Take it apart and find out.. then document it here ;-)

James Clutterbuck -

Took it apart, power button and strong button comes on but brewing button does not work (no light seen). Can this be the board that controls the switches or is it a defective strip?

Ryan Bissoon -

I accidentally plugged my Keurig K-mini to 220V. when I opened it, I found out that the R7 resistor (10 ohms) and the MOV1 parts got burned and blown, makings its identity no longer visible. Does anyone know if this is a thermistor or a varistor? and its correct value? I couldn't find a Keurig K-mini circuit diagram online. Would highly appreciate a response. Thank you in advance.

Frankie Fulgar -

I looked on mine and it's a S10 K150 Varistor

Daniel Vakulich -

My mini works, but no lights. Good thing I remembered the sequence. My neighbor gave me his old unit for parts, but it too works, but no lights. In your tear down did you notice a low voltage circuit on the main PCB? Maybe a DC rectifier? Do you know of this problem?

Eric overn -

Hi, I think my K mini has the water reservoir filter broken. I tested it unplugged and it liked on the side (the black plastic thing were the water from the reservoir gets in the heating circuit). Any ideas how to FIY? Warranty is expired.

catwoman_3679 -
