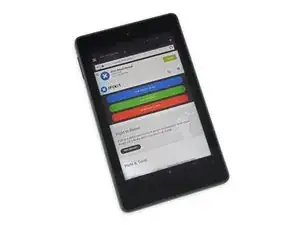

Advertised as the "Most Powerful Tablet Under $100", the Kindle Fire HD 6 was too tempting to pass up. Join us to find out if inexpensive means cheap, irreparable, or just down right economical. It's teardown time.
Double Teardown Alert! We also tore down Amazon's new Kindle 7th Generation!
Warm up with some hot tweets on Twitter, join us on Facebook, or find our Instagram photo finery.
Ersatzteile
-
-
One hundred dollars. One Benjamin. A single C-note. That's the cost of a Amazon's New Kindle Fire HD 6. Let's see what your not-so-hard-earned cash buys you:
-
6" high definition touchscreen with 1280 x 800 resolution at 252 ppi
-
Quad-Core processor with two cores running at 1.5 GHz and two cores at 1.2 GHz
-
1 GB of RAM
-
8 GB (4.5 GB available to user) or 16 GB (11.6 GB available to user) of internal storage
-
802.11b, 802.11g, or 802.11n Single-antenna Wi-Fi + Accelerometer + Gyroscope + Bluetooth
-
VGA Front-facing Camera + 2.0 MP Rear-facing HD camera
-
-
-

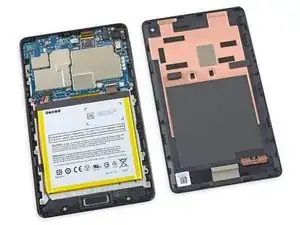

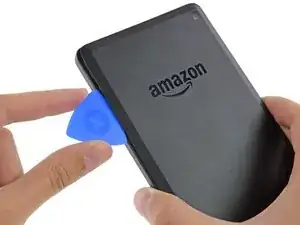

Good news, everyone! You won't need anything fancier than an opening pick to crack this case. Plastic clips and no adhesive secure the panel.
-
This looks familiar. It seems the Fire HD 6 is just a small Kindle Fire.
-

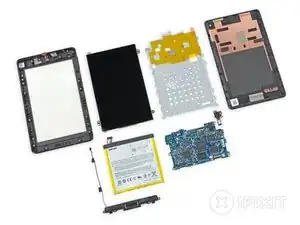

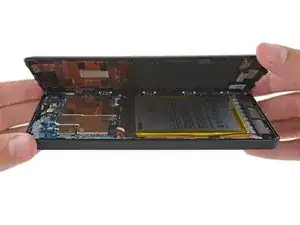

Already a very simple device, the Fire has undergone some serious streamlining internally (not to mention shrinking externally).
-
It looks to us like the motherboard, rear camera, battery, and speaker are all clearly available for easy removal...
-
-
-

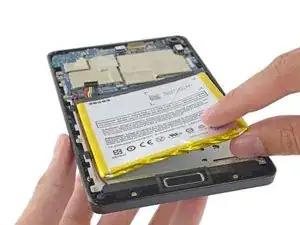

Or so we thought. The battery, while up on top and otherwise ready to roll, is suffering from separation anxiety.
-

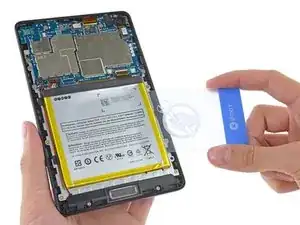

Even with our plastic card, we had to use excessive force to pry the battery out.
-

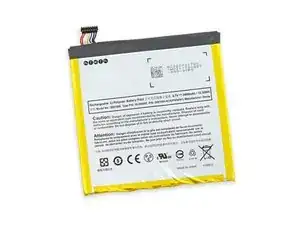

The 3.7 V, 3400 mAh (12.6 Wh) Lithium-ion Polymer battery in the Kindle Fire HD 6 is pretty hefty at 60 grams—about one fifth of the total weight of the Fire.
-
Amazon promises about 8 hours of use, but warns that "results may vary."
-
-
-

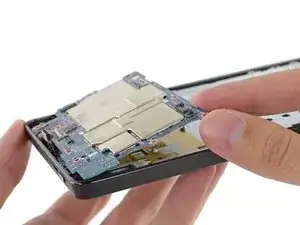

Moving right along on the "removing modular components" train, we pull out the speaker, rear-facing camera, and finally (after all of that effort) the motherboard.
-

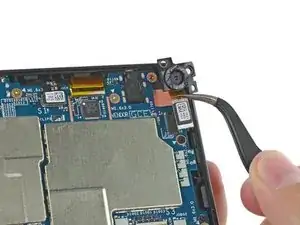

The 2.0 MP rear-facing camera is...well...a camera.
-
Which is great if you ever wanted 2005 flip-phone photography in a new unwieldy format.
-
-
-

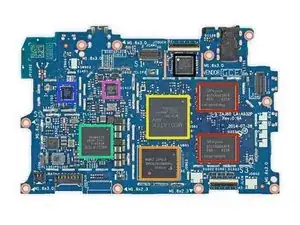

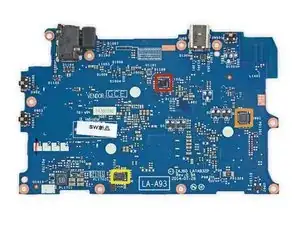

These are the ICs that ignite the Kindle Fire HD 6:
-
SK Hynix H5TC4G63AFR 4 Gb (512 MB) DDR3L SDRAM (512 MB x 2 = 1 GB)
-
Toshiba THGBMBG6D1KBAIL 8 GB e-MMC NAND Flash
-
MediaTek MT8135V Applications Processor
-
MediaTek MT6397A 1425-ANAH EC4 AW80H
-
MediaTek MT6628TP Wi-Fi/Bluetooth Controller
-
SlimPort ANX3618 SlimPort Connectivity IC
-
Cypress Semiconductor CY8CTMA4 63-56LQI 1419 F 04 CYP620476
-
-
-
Look ma, no optical adhesive! It's been a while since we've seen a tablet display come apart into non-fused glass and display components.
-
The 6 inch, 1280 x 800 pixels (252 ppi) display is provided by LG Display.
-
The display glass assembly contains the digitizer and the VGA front-facing camera.
-
-
-
Fire HD 6 Repairability Score: 8 out of 10 (10 is easiest to repair).
-
The rear case is very easy to open, granting trouble-free access to the internals.
-

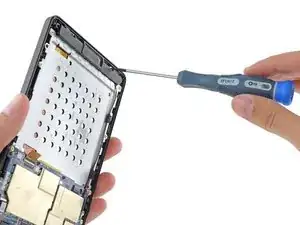

All the fasteners found inside are T5 Torx screws—one non-proprietary screwdriver is all you need.
-
Simplistic design and limited functionality means fewer components and less headache for disassembly.
-
Battery adhesive is much stronger than necessary, which makes disassembly hazardous.
-
The glass panel is fused to the front plastic frame, meaning a heat gun is required for replacing cracked glass (or you have to replace both components together).
-
8 Kommentare
Simplistic refers to treating somthing as much simpler than it is.
In this case, calling partial disassembly into a few major subassembles, one of which contains more than 95% of the content of the device, a teardown, is a simplistic understanding of what a teardown is.
The design is clean and straight forward, but not simple, except perhaps to someone would would regard an automobile engine/transmission assembly as a component to be replaced rather than repaired.
Hey guys, does anyone know where I can purchase a glass replacement or the entire front glass housing? My son dropped it while coming out of the car, and the entire glass shattered. Thanks in advance :)
hey Anibal Alanis, you can buy it on Amazon or online shopping, check on google
Nobody has these replacement screens. Amazon suggested just to buy a new one, of course! maybe in a few months, China will start cranking them out and I can finally fix my son's unit without spending $100
I don't know what if anything you did about this , as your post is 11 months old at this time, but I bought this same device from a neighbor for $20. It has a cracked screen. Cost to replace it? $100
