Einleitung

We will open the Volca Mix and see what's inside.

  1. CtedGODOYVUTRhgS
    CtedGODOYVUTRhgS
    F4qS1EAS1SIWkdWP
    vVwWqUCGASCVM65Y

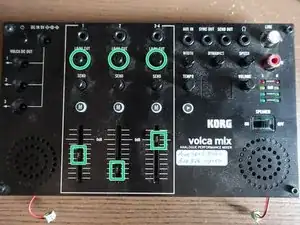

    • Remove eight screws.

    • Remove the bottom plastic case. You will see the PCB.

    • Remove four further screws and unlatch the two loudspeaker-jacks.

    • Remove the three Hi/Lo-Cut knobs and the three fadercaps. You can now remove the PCB from the case.

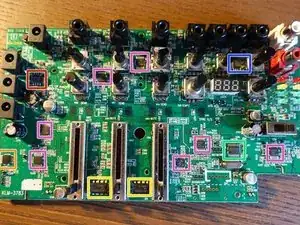

  2. bGy3Fo1HPJXLGLAt
    • Texas Instruments - TPS54231 2A, 28V-Input Step-Down DC/DC-Converter.

    • Texas Instruments - CD4013B D-Flipflop. I am not sure if this is correct. The Marking is CM013B/77K G4/A32G

    • National Semiconductor - LM386 Low Voltage Audio Power Amplifier

    • ST Microelectonics - STM32F030F4 Microcontroller.

    • JRC - NJM4556A Dual High-Current Operational Amplifier

    • ST Microelectronics - TL084CDT JFET Quad Operational Amplifier

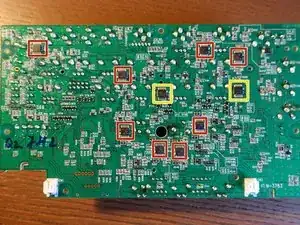

  3. EQFlZXUNIcTGYGxs
    • Texas Instruments - CD4013 D-Flipflop

    • ST Microelectronics - LT084CDT JFET Quad Operational Amplifier
