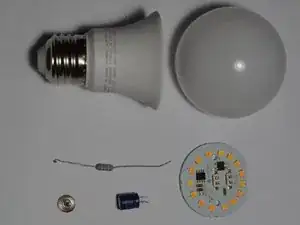

Teardown of a standard LED light bulb
Werkzeuge
-
-

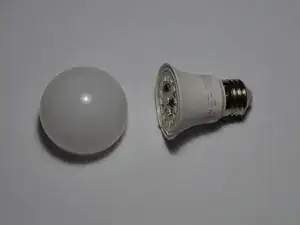

Carefully cut and pry with razor blades between the diffuser and body of light bulb.
-

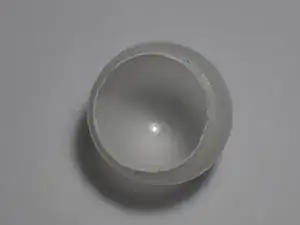

Diffuser is sealed onto body of bulb.
-
-
-

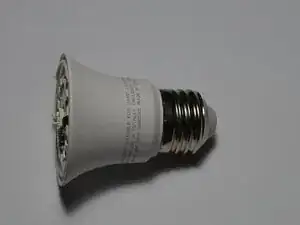

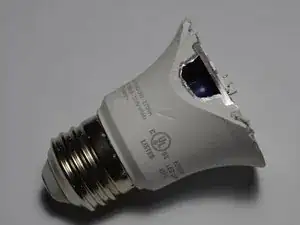

Filing into the side of the bulb.
-

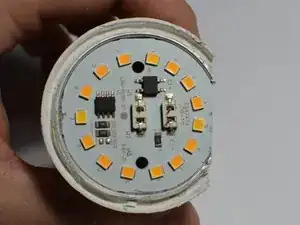

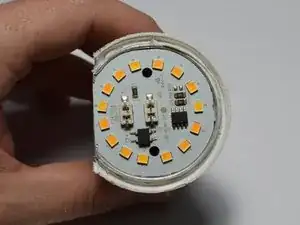

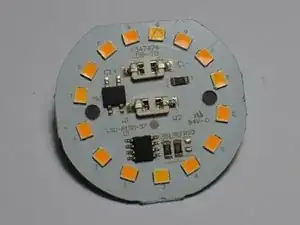

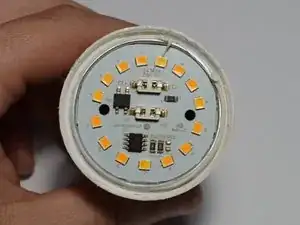

Top layer is circuit board.
-

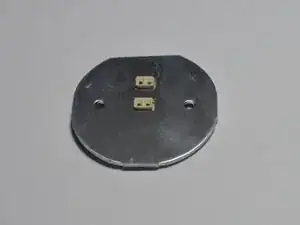

V-shaped metal is casing about 1mm thick.
-
-
-

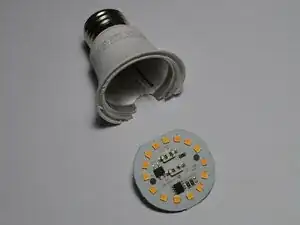

With open gap circuit board can be removed.
-

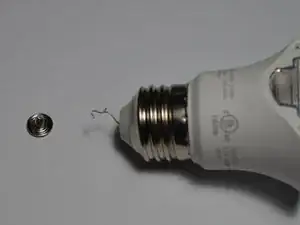

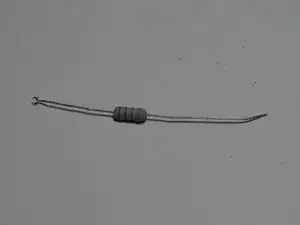

Attached with wire and resistor to base of bulb.
-

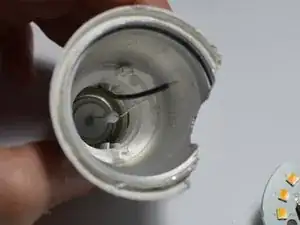

Release clips to release wires.
-
-
-

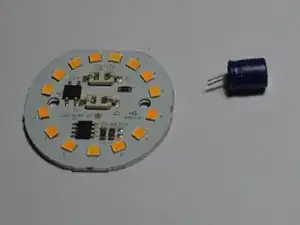

Capacitor is removed as previous wires in Step 4 were removed.
-
Capacitor is 10 mircoFarads.
-
3 Kommentare
I'm curious, if anyone has taken apart enough failed LED light bulbs to discover if there is a trend in what part fails first. This would be interesting if it is a component that can potentially be replaced. A buck or less to get more life out of a $10 bulb seems like a good trade off!
jaeckerb -
I've wondered the same thing myself. It seems likely that it would be a failing capacitor or possibly one of the LED's in a series circuit, where if one fails they all go off or flash as the failing LED works, heats up, fails, cools down, works again, and repeat) as often failed LED bulbs do.
Diode usually. you can take your meter and on both sides of each diode test each individually when it lights up u know that one is bad. pop bad led off with pick and take lead out of graphite pencil shaving on circuitry and/or. little drop of super glue to allow it to bond and test again light should be fixed.... easier done then explained lol.... god bless.
