Einleitung

I broke my LG 25UM58-P LCD panel. Since there weren't any teardowns or disassembly guides online, it was only fitting to do one before it went in the bin.

  1. 4DJSIFdejfsRqglR
    4DJSIFdejfsRqglR
    I43JD65EUDIWZuQU
    FfajPspcWsOZu1Oo

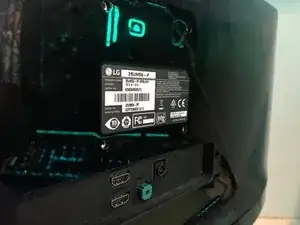

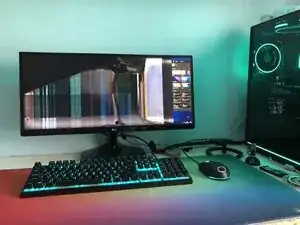

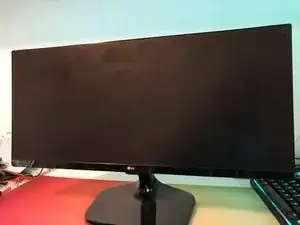

    • Top Tip: If you don't leave an HDMI cable attached to your monitor, you can't trip over it, and destroy your display.

  2. hDLSS3HUBsR2BAJn
    hDLSS3HUBsR2BAJn
    hUZP61FwY22RjlYw

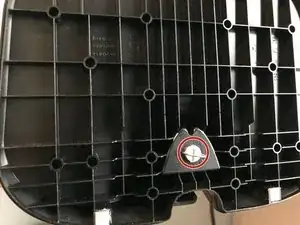

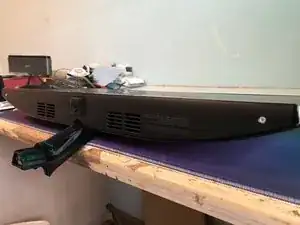

    • The base plate can be removed by undoing the screw as seen in the second image.

    • Captive D-Ring screw

  3. NsEVQebCwI251Lq6
    NsEVQebCwI251Lq6
    wCErB4hHVMxxKqSF
    W6vb6ylk2ytgZkog

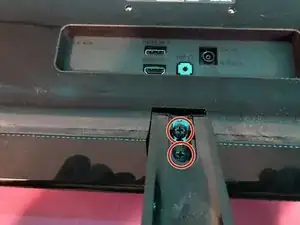

    • The stand is secrured to the monitor frame with 2 Phillips screws.

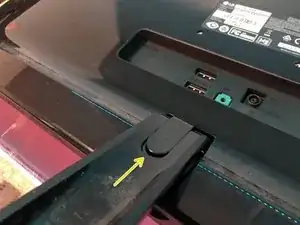

    • The small cover needs to be pushed down to disengage the clip.

    • Slide up in order to reveal the screws.

    • 2 x Phillips #1 screws

  4. GdBqfmxZx3gZXFFX
    GdBqfmxZx3gZXFFX
    Tn4dl5lBkNfU1Xsf

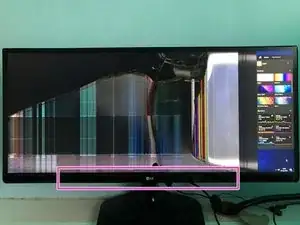

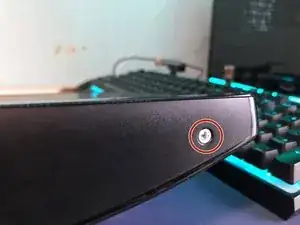

    • There are 2 Phillips #2 screws holding the lower trim, with the LG logo, onto the monitor.

  5. 6AtilCB2QtKIJdMK
    6AtilCB2QtKIJdMK
    RkPBgTGXUf3GJYLo
    dqIAuBX3CeJQLIRR

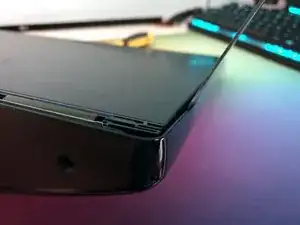

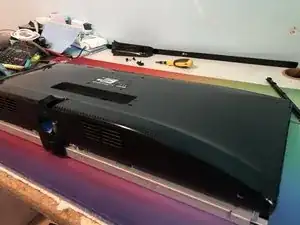

    • The lower trim piece lifts off with some persuasion.

    • The screen is held on with an overengineered system of clip and tabs. The only method that personally worked, was to pry at the display and lever it out.

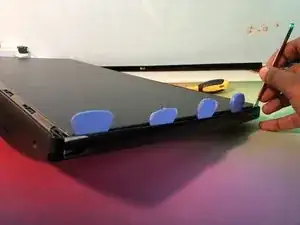

    • The guitar picks were used to hold the display panel up and prevent it from clipping back in.

    If you hit from the stand attachment part (where you screw the feet) bottom part of the screen drops.

    Furkan Taşdelen -

  6. hXsDSsCVhD2Hr1Ig
    hXsDSsCVhD2Hr1Ig
    pfMmhAaKX6oZkXNl

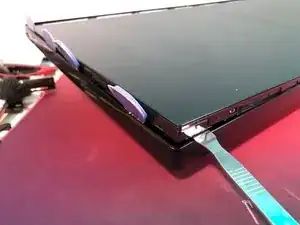

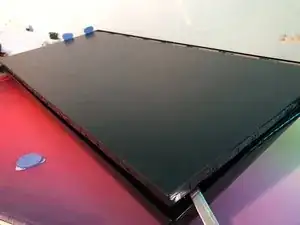

    • Once you work your way around the edge of the display, and release all the clips, the panel will be free.

  7. olrRQcBM46T2Zw4G

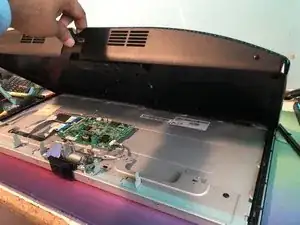

    • The rear cover separates from the LCD panel, revealing the surprisingly tiny control board

  8. rOhGoaxksMvwSIH2
    rOhGoaxksMvwSIH2
    nLhdsKIfFBwtf6wu
    qLXgnNY6LVBYOjJ6

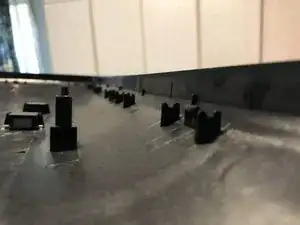

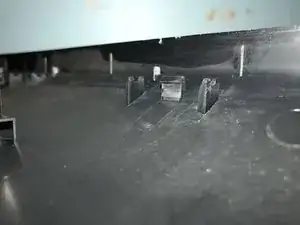

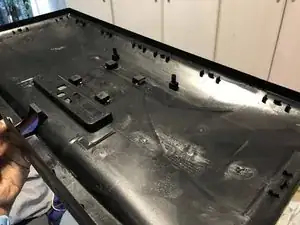

    • Some close-ups of the clips and mechanism used to secure the rear cover to the LCD panel

  9. LS6bTMupkEabQHtx
    LS6bTMupkEabQHtx
    Q1gNyoIQCJprlgWY
    XRkXIMHtQhpWRvrr

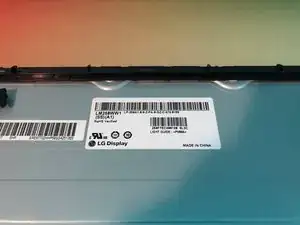

    • The panel model appears to be: LM250WW1

    • The LCD itself has the part number: BBSU1V 3467C2

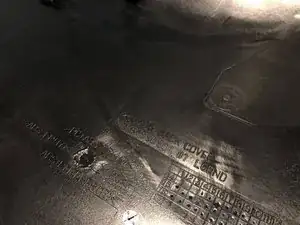

    • The rear housing is stamped with the part number: MCK67880501

  10. TBfL2lGqUhQEViSP
    TBfL2lGqUhQEViSP
    OjBdEvOSA2MEI3Be
    jPOvGpGupfPoCZqG

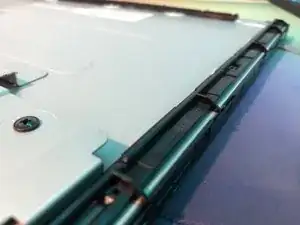

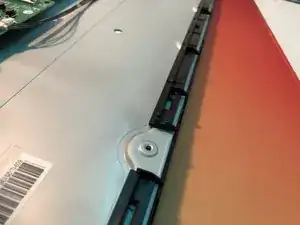

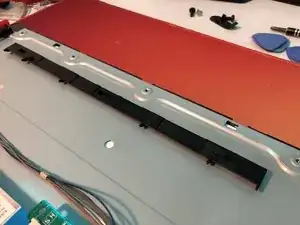

    • A closer look at the mounting method shows that there are a series of plastic "rods" that slide into slots on the LCD panel frame. The "rods" then attach to the clips on the rear housing as seen in Step 8.

  11. uXddYHFEx3qFISW2
    uXddYHFEx3qFISW2
    cNEDXnoLZaVmyqEy
    LDBO1O2DFsrVvC4U

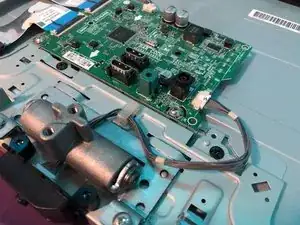

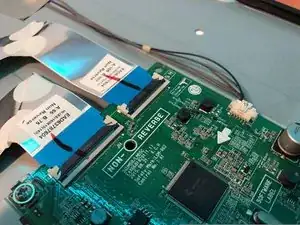

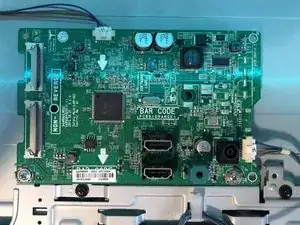

    • Judging by the markings on the motherboard, it appears that the same PCB is used for the 34UM58.

    • The part number of the board appears to be: 692M000F-002 63624404

  12. gnvrSBOyJt6KCplE
    gnvrSBOyJt6KCplE
    XcFfPWte5UULULQB
    qChwFmvJner1AYml

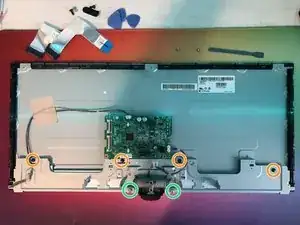

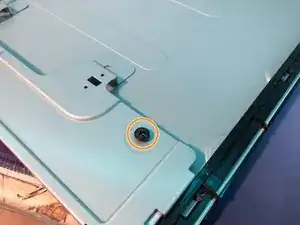

    • 4 x #1 Phillips screws are used to secure the hinge plate to the back of the LCD panel.

    • 2 x #2 Phillips screws are used to secure the hinge itself to the LCD panel.

  13. EuHSNdJyBhDTHaWl
    EuHSNdJyBhDTHaWl
    6HFp352voWIErtZZ

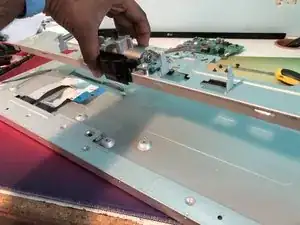

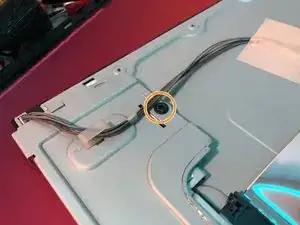

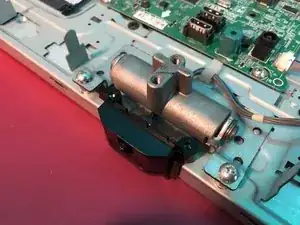

    • Carefully route the cables away, from the hinge panel.

    • With the 6 screws removed from the previous step, the hinge assembly can be lifted away.

  14. FMP1RhVKsttKAAtn
    FMP1RhVKsttKAAtn
    TkNBrwdJMAfdGF6B
    bnDbACkqiTTrA5fY

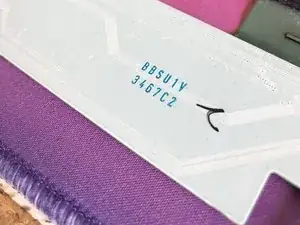

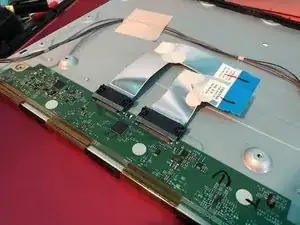

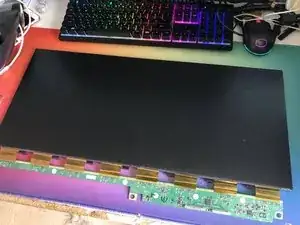

    • The LCD panel itself can be separated from the backlight.

    • Part number: BBSU1V 3467C2

  15. BHExUbUW1rrAQOLh

    • A fairly tricky monitor to disassemble.

    • I'm 90% sure that removal of the LCD panel from the housing/frame will cause it to shatter (if it wasn't already damaged).

    • Replacement panels are about the same cost as replacing the entire monitor itself, making repairs unfeasible.

    Thank you very much for taking the time to make this guide.
