This old phone dropped on my hand recently and I was interested to teardown, as much as I can. As a result I made this for anyone interested.

  1. vFNNUOIsYVOKwEp5
    vFNNUOIsYVOKwEp5
    kHUyhLhXDFHhH4RX

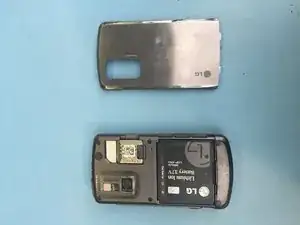

    • Press this button to unlock and remove bottom plate

  2. UYmMtFRhN6tF2CmZ
    UYmMtFRhN6tF2CmZ
    QedHQptVofhDLupx
    IhkDlqt1liNcBVZS

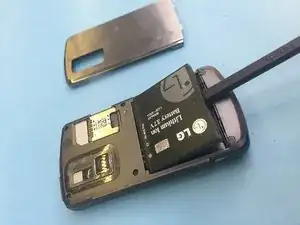

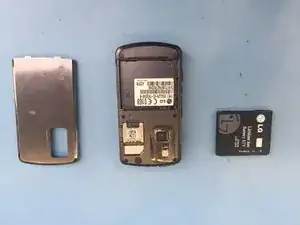

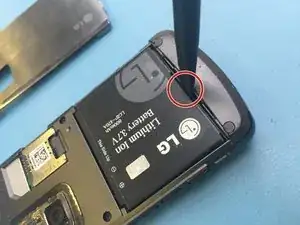

    • Insert your blackstick and remove the battery

  3. dgIRnT3NKtFle1YY
    dgIRnT3NKtFle1YY
    ebkXYBgxioBSONa3
    RUnI6LPwk3XCFYOI

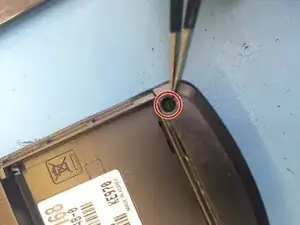

    • Find the hidden screws under the rubber covers.

  4. ZXhpEVoHByLYu5FO
    ZXhpEVoHByLYu5FO
    gZydTBxqSovYC3bI

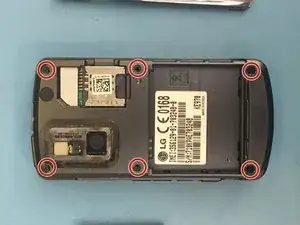

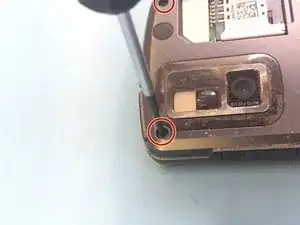

    • 6 same size screws should be removed.

  5. EXEGUGnjQR6OYxuu
    EXEGUGnjQR6OYxuu
    tGZWhUqEBOZBlAPL
    UYmNugHYjvSc6yaI

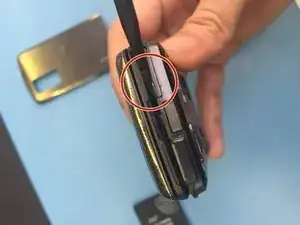

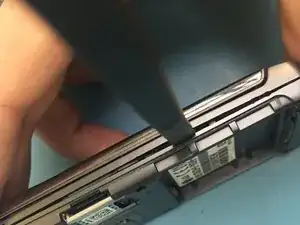

    • Insert your blackstick and try to slide it from the one side to the other. At some point you can hear the "click" sound. It's really fragile so be careful. Don't put the blackstick too much inside because you might damage other parts. Try to be as gentle as you can. If you don't feel it, take your time. It's better if you do a break.

  6. QjQSHUpLv5Ug51gK
    QjQSHUpLv5Ug51gK
    mk1kCUymPOObUXa1
    BbDCRJtetQtAvsL2

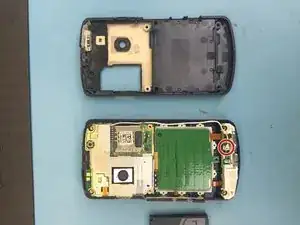

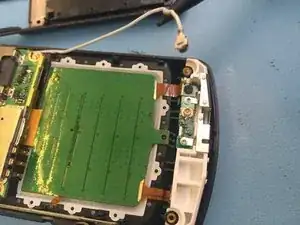

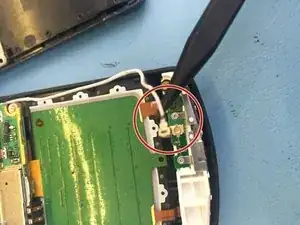

    • Once the two parts are separated we should disconnect the antenna to proceed further. Insert your blackstick under the antenna and push it up very gently.

  7. glxehEkNiDmbq1UT
    glxehEkNiDmbq1UT
    x5wBjEtkQe1Koq6W
    uvRRoZUbEGiSuMX6

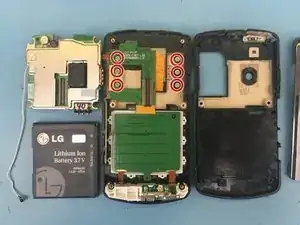

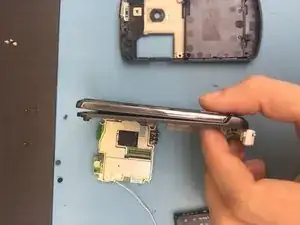

    • The display can be unscrewed. 6 silver screws are holding it on the main body. Although soldering required to replace this part, since the flex cable is attached on the Motherboard. So I leave it here.

  8. WgYxd4rWbO5UrBiS
    WgYxd4rWbO5UrBiS
    5tpLQb1oBrvRvnRG
    iYSgArpcBlJeGKPA

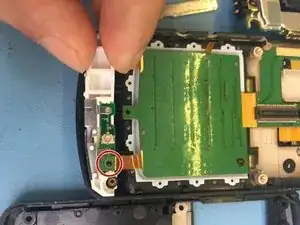

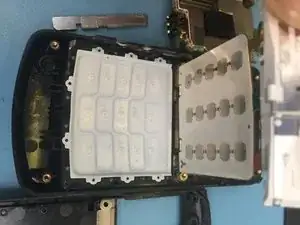

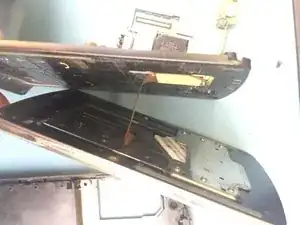

    • Remove the last screw and you have access to the keyboard underneath.
