Want to know the pieces that drive this phone or just want to know how to disassemble it? This guide is for you!

Now, let's go!

  1. MsRAWQqNJcB3aYui
    MsRAWQqNJcB3aYui
    VM5qS2DWmOTuOfVH

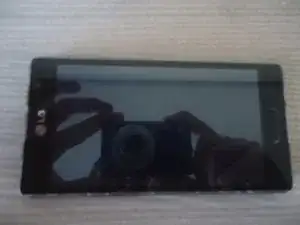

    • Released in 2012 as the best phone in the L series (the other phones were L3, L5 and L7)

    • This phone exists in different versions : the P760 (this one), the P765 (for India), P768 (for America - and a 8 MP camera) and P769.

    • The specs of this phone :

    • CPU: Cortex A9 (dual-core @ 1 GHz)

    • RAM: 1 GB (0.75 GB according to the phone)

    • Storage: 4 GB (2.3 GB usable) + micro-SD

    • Screen: 4.7" IPS, 540x960.

    • OS: Android 4.1.2 (for the latest version - 4.2 with Cyanogen 10.1.2)

  2. jWU2W5oKpx5jWIxK
    jWU2W5oKpx5jWIxK
    xSWaS41PI6KpeWRd

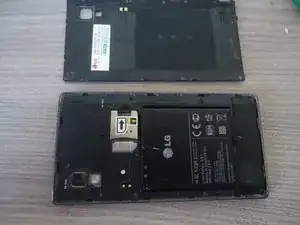

    • To access to the battery: easy: let it drop or lift with your thumbnails the rear cover.

    • The battery can be removed the same way (dropping the phone is not a good idea...)

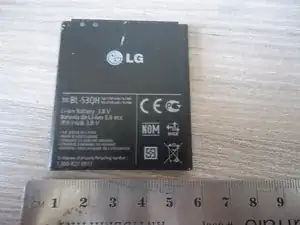

    • The battery has a capacity of 2150 mAh. Not that bad but it runs out quite quickly (good point: the battery is removable)

  3. ONRQmWA5dbSKFasJ
    ONRQmWA5dbSKFasJ
    4bBJdIGZAuQMeMMa
    WevVjrL4sqqI4kHQ

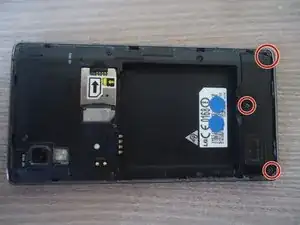

    • Let's begin the fun part: with a screwdriver, let's remove the three Philips screws.

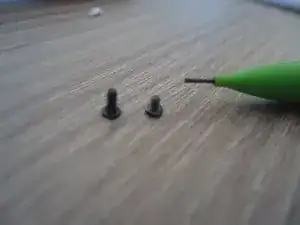

    • Keep the screws on a magnet not to lose them (or two: there are two types of screws in this phone: the little short and the little long screws)

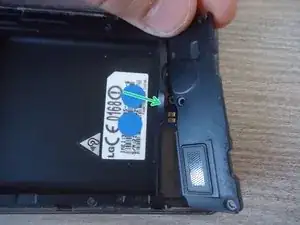

    • This part can be lifted easily (eg: insert a flat screwdriver on the top of the part)

  4. F4VVPLyPvWQTgISP
    F4VVPLyPvWQTgISP
    Eb1Iw4M3chGKyY5e
    DZXnjsCMxayopkQQ

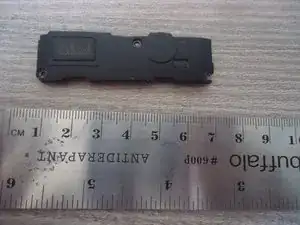

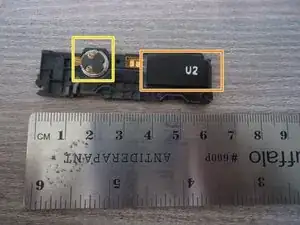

    • What does this part do?

    • The vibrator which... well, vibrates.

    • And the bottom speaker: used when you listen to music and with hands-free calls).

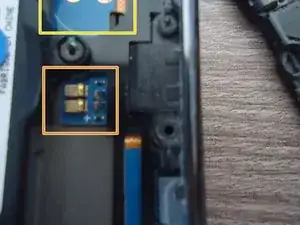

    • From the rest of the phone, the connectors are visible.

  5. 6dCqjRSDU3yB6XpA
    6dCqjRSDU3yB6XpA
    VcCWxV5SIsPdjlvm
    cA5lrVigsHHKshqR

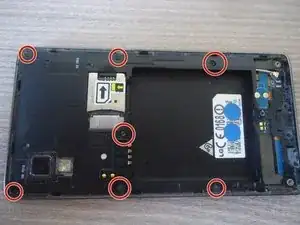

    • Now, to access to the motherboard and to the connectors, you are at 7 screws from it!

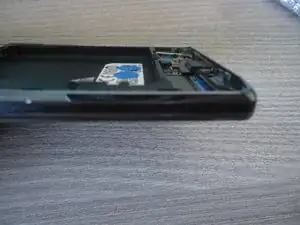

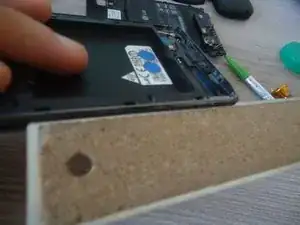

    • With a spudger (or something flat - NOT a flat screwdriver), pry the glossy part and separate it from the rest of the phone.

    • As a rule of thumb, a rule is somehow effective!

  6. tPjQAsqmZHW2BqOG
    tPjQAsqmZHW2BqOG
    iCSqFCncydqpnNuS
    bn1L4QL2EZ4JoYct

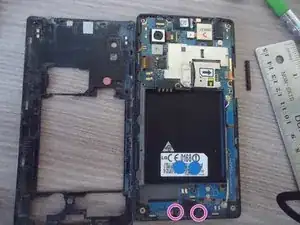

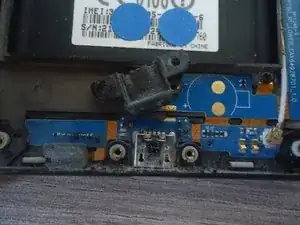

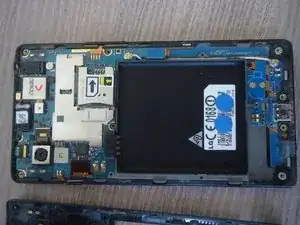

    • Here we are! Before removing the lower card, let's remove the two little screws and the cache hiding the micro USB port.

    • The phone, with the guts visible (almost...)

  7. 5VDvyTDEwxsSfKYc
    5VDvyTDEwxsSfKYc
    CHP2oeWOVY5XqyEO
    aLCNCeZDISufecrE

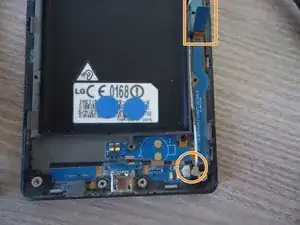

    • To proceed, detach the antenna and the connector.

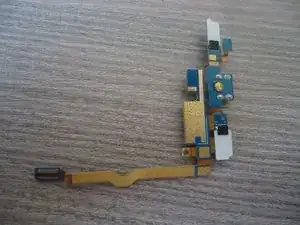

    • Then, the tedious part: the board is glued to the case! Proceed wit care not to break the card (by taking the part and with a spudger).

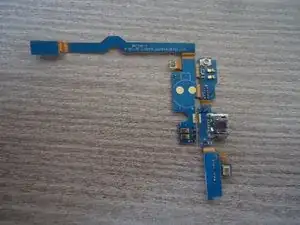

    • We can note the presence of the (little) microphone. This board gathers the connectors for the vibrator, the speaker, the micro USB and the antenna. This part is quite important!

  8. OVLaAxtHmPF4bEMH
    OVLaAxtHmPF4bEMH
    2KEbYV2Rt2QPYfSx

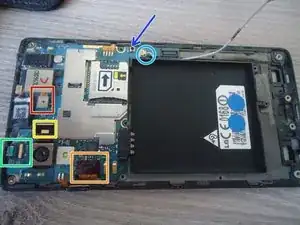

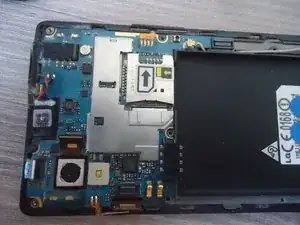

    • Now, the (dual-)core of the phone: the motherboard. LG was good for the board: almost everything is linked by connectors, easily removable!

    • Let's continue our dissasembly by disconnecting the four remaining ribbons:

    • The digitizer

    • The screen

    • The rear camera

    • The front camera and the proximity sensor

    • The antenna. Useful if the antenna was torn because it is easily replaceable!

    • Is it me or the phone includes a second antenna for dual-SIM models?

  9. L2CceloGhKq1yUPG
    L2CceloGhKq1yUPG
    XJQKaojxemTWAZdc
    uOLsMZfoamHYaXI4

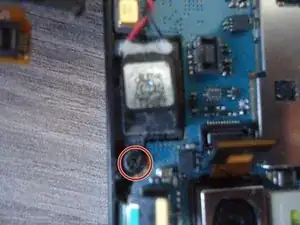

    • Careful, the board won't go without unscrewing this tiny screw, securing the top speaker (sorry for the quality)!

  10. Swb13N3doOSXJMXK
    Swb13N3doOSXJMXK
    ZVbdFmuHVTNFrwkH

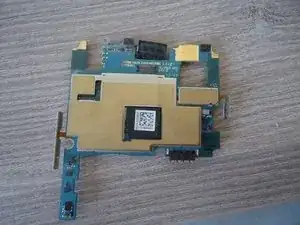

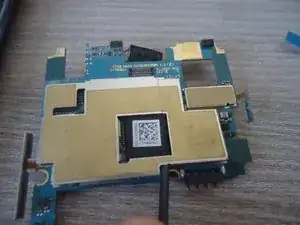

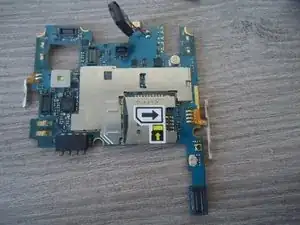

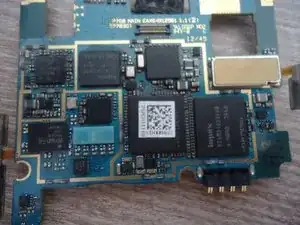

    • The motherboard, with the shields. With a flat screwdriver (do it if the phone is dead... Otherwise, the components beneath are fragile and may stop working).

    • I don't want to say wrong things so the analysis is left as an exercise for the reader.

  11. NptbXjPoXEuIbalo
    NptbXjPoXEuIbalo
    LfCVGD2AeKCNInfc

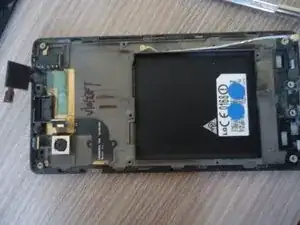

    • The most interesting part for a fragile phone: the digitizer.

    • The connector of the digitizer can cause you trouble! Don't lift the digitizer brutally or the ribbon may tear!

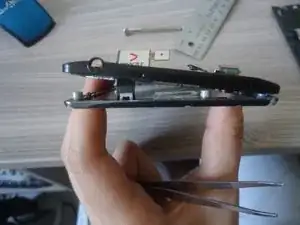

    • Little by little, with a spudger, the both parts start separating... Be careful though!

  12. VDFW6h6FyeVLl2YM
    VDFW6h6FyeVLl2YM
    kyerAJXoUrGJcxiy

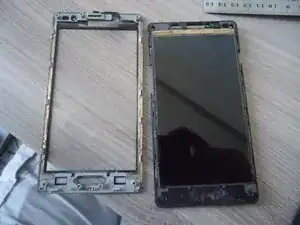

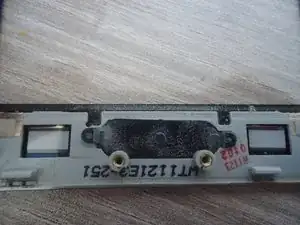

    • Here is it! It includes the two capacitive buttons on the bottom.

    • The button is barely maintained on the digitizer!

  13. MUKtQIZdKQT6Kgyk
    MUKtQIZdKQT6Kgyk
    5yChDNTnjrLWIk6M
    iMtMfN4mmknnIQw1

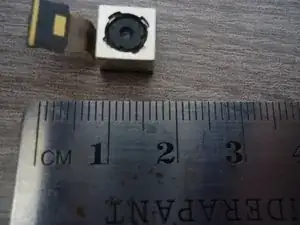

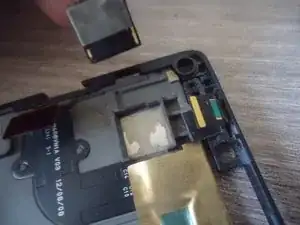

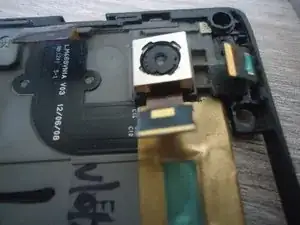

    • The rear camera is glued to the naked phone. A flat screwdriver and the camera is gone!

  14. TMFZONPHrqbIZRQx

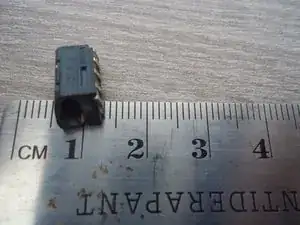

    • The female Jack connector is not soldered at all! Only on its place, with the four connectors touching thr motherboard.

  15. 2GsDs5NgNLNU2L3F
    2GsDs5NgNLNU2L3F
    dpFAUNIRLnLwNWsP

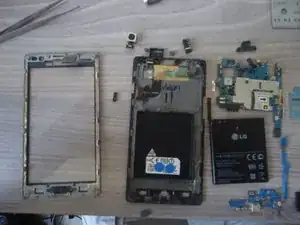

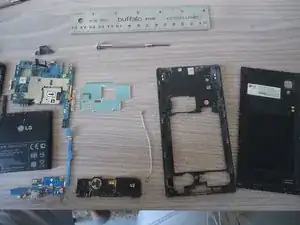

    • This teardown is completed (almost).

    • Feel free to add information if you want!

    • Rest in Pieces, phone...
