This guide will demonstrate how to fully disassemble the LG Optimus L9 P769

  1. 55mZIwQhOJZqWlc2
    55mZIwQhOJZqWlc2
    s6kEFwn52bIFdqPL

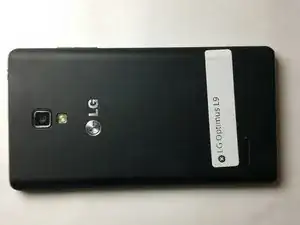

    • Here's what LG's L9 P769 holds hardware-wise:

    • Dual-core 1.0 GHz CPU

    • 4.5 inch IPS LCD with a resolution of 540 x 960 pixels

    • 4 GB of internal storage

    • 5MP Primary camera and VGA front facing camera

    • Wi-Fi 802.11 a/b/g/n, dual-band, Wi-Fi Direct, hotspot, DLNA

  2. RxJMm1NudeAgCSAJ

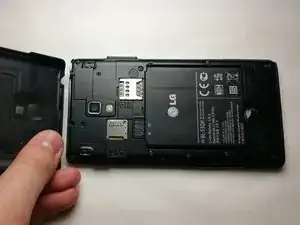

    • Power off the device and gently lift the battery cover off to access the battery

  3. IDAQHW1AunV6WmVg

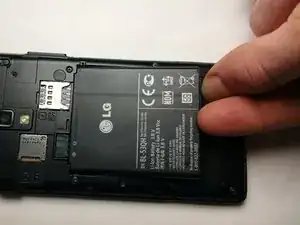

    • Lift and remove the battery from the notch in the edge of the battery compartment

  4. N5Z4OhUBNjKEg23S
    N5Z4OhUBNjKEg23S
    eZQsx6CG1bkEMswR

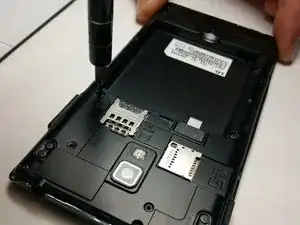

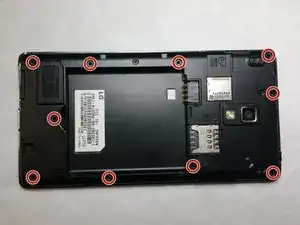

    • Remove all 10 of the 4.5mm screws that hold the back frame to the case of the phone using the PH000 headtype

  5. XAnr3GoqR6aHgYBw
    XAnr3GoqR6aHgYBw
    PYf1eWMffPFvKSFy

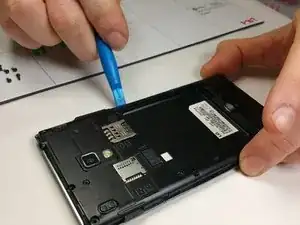

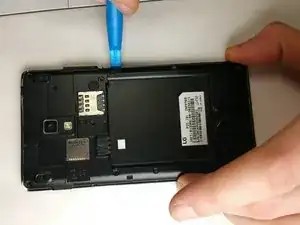

    • Using a small prying tool, carefully remove the back frame by prying on the sides of the device.

    • Do be careful when prying back frame and removing it as too much force may result in damaging the frame.

  6. 4VBYS4xBSaQnVNY1
    4VBYS4xBSaQnVNY1
    rfi6ScwmShDh22eY

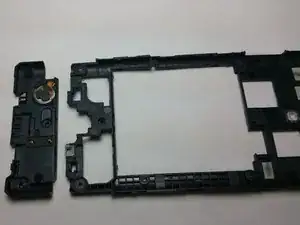

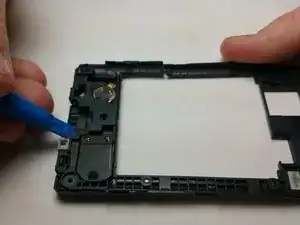

    • Carefully remove vibration and speaker module using the prying tool

  7. tchygsVINWyPQIvi
    tchygsVINWyPQIvi
    wBhEFojqOVqmCkGF
    xBPOeHvgDdQ3Iv1x

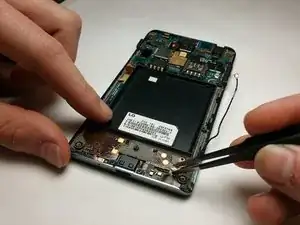

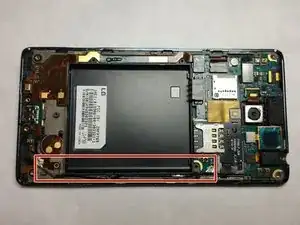

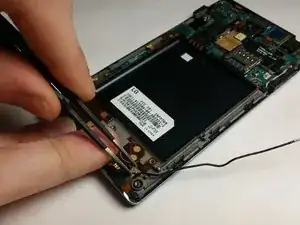

    • Remove both connections of the antenna by pulling up with tweezers

  8. 5NVK6LL3yEcWO2BB
    5NVK6LL3yEcWO2BB
    Ip2AfySnlPoTaNdG
    GjDAavvHXl3ANxRR

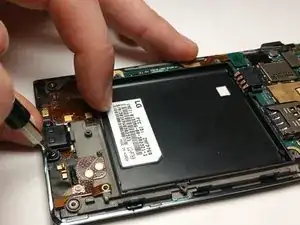

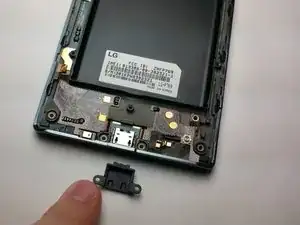

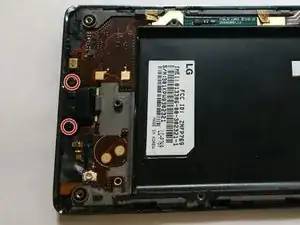

    • Remove Micro-USB Cache by unscrewing both 2.9mm screws with the PH000 headtype

  9. ZStTDdP26TnlQueo
    ZStTDdP26TnlQueo
    KMTfVbyW4RehAQBE

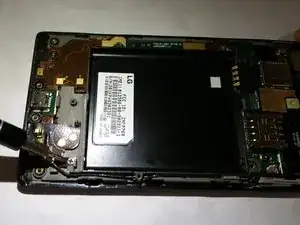

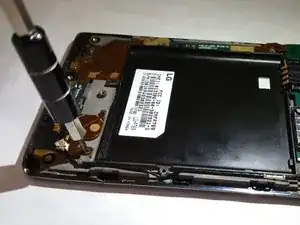

    • Remove 1.8mm screw to free Micro-USB module for removal using the PH000 headtype

  10. gagED2QZurYjeNrM

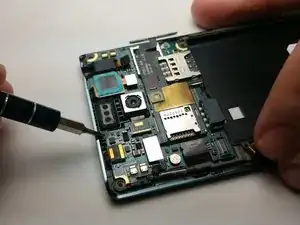

    • Remove screw at top of phone to release speaker with PH000 screwdriver

  11. mLSsQswetBFYXCbI
    mLSsQswetBFYXCbI
    UJcNeOpQWRNuEhMo
    TYu1QrS6CLaHC1DA

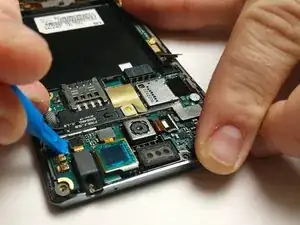

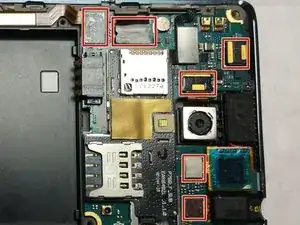

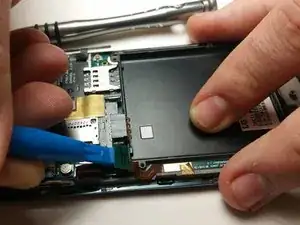

    • Use a small prying tool to release all motherboard connections.

  12. YQWgLIvNYg1duCaI

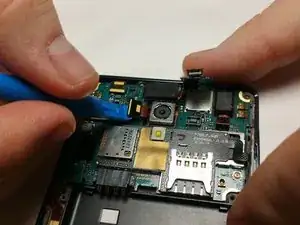

    • Remove rear facing camera by using the small prying tool

  13. xK3XTJgZG2QJl4ny
    xK3XTJgZG2QJl4ny
    HHJHWX2d46ISbYAB

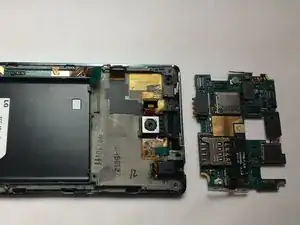

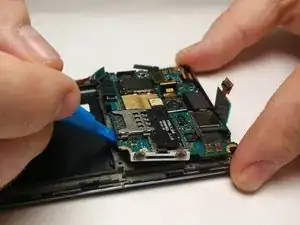

    • Gently lift the motherboard with small prying tool to remove and set aside

  14. KSJJODdBAASonUVU

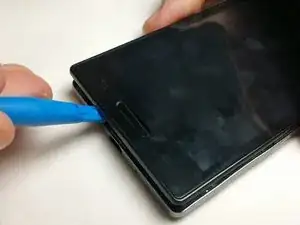

    • Using a spudger or small prying tool, pry off the latches that connects the digitizer to the chassis carefully.

    • Do not force open as the latches attaching the digitizer to the chassis as they are easily damaged.

  15. pUPIhLY1SooJBMu1
    pUPIhLY1SooJBMu1
    5MtVDTNvOLGWlwSW

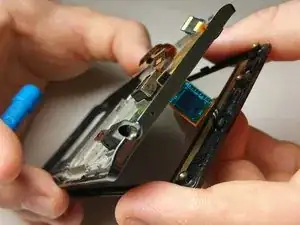

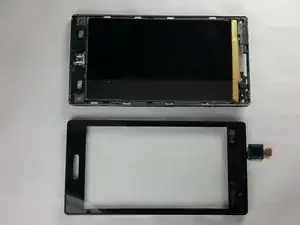

    • Carefully remove the digitizer from case by sliding out connected ribbon cable

  16. vkEoWUfACqwBVJpe
    • Use a small prying tool to detach the screen circuitry from the case

  17. MGJuXBbCMoAf3DaU
    MGJuXBbCMoAf3DaU
    KpXQa31ZekXvjryX
    rMR2WnspFpk5Cmvo

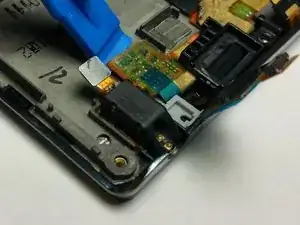

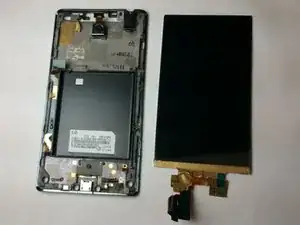

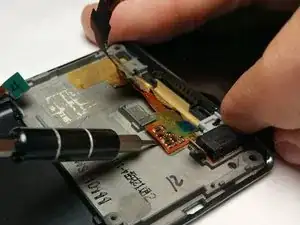

    • Remove the remaining circuitry utilizing a smaller prying tool or a small flathead screwdriver

    • Carefully slide out circuity to remove phone display

  18. oicWY1qBbUSXk5dC

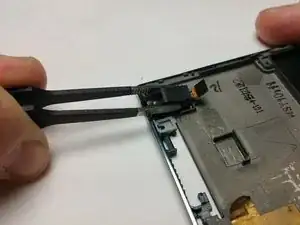

    • Use tweezers to disconnect the 3.5mm headphone jack from the phone

  19. TstwWXSvYyJLBJUC
    TstwWXSvYyJLBJUC
    3Y3aAEOL1bF1uMig
    BkWblmAXRsXrjP5k

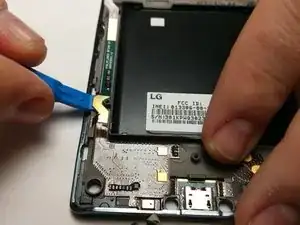

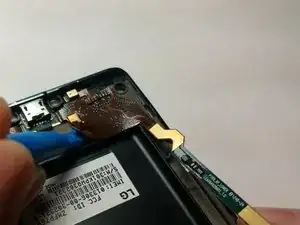

    • Use a small prying tool to detach the Micro-USB circuitry from the case of the phone

  20. cBoFZUYJsbEUPw6v

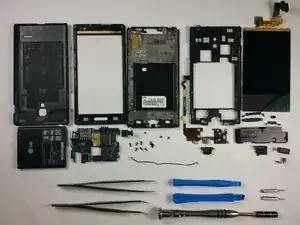

    • Full tear-down and recommended tools for procedure
